Ultimate Guide to Custom Automotive Fuel Injector Wiring Harnesses

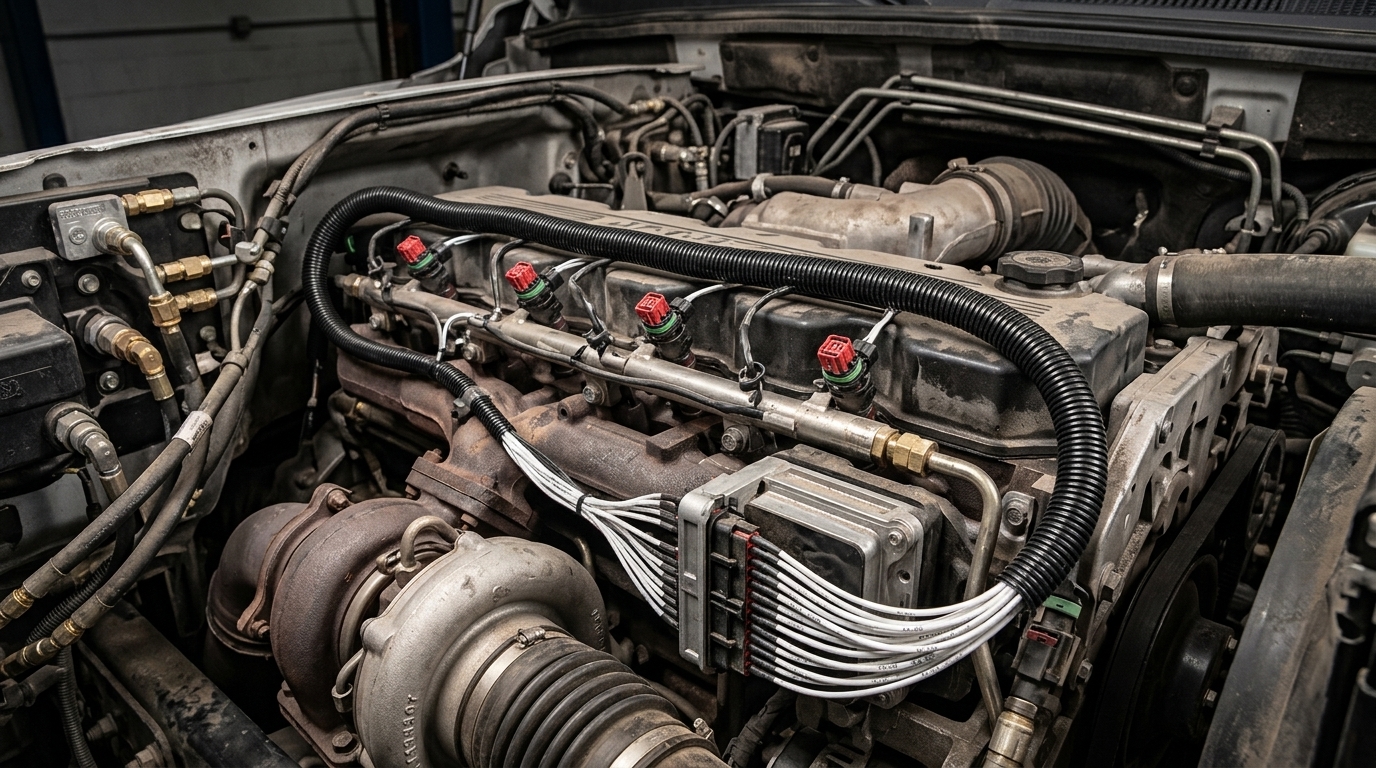

In the rapidly evolving automotive industry, precision and reliability are non-negotiable. At the heart of modern internal combustion engines lies a critical communication bridge: the automotive fuel injector wiring harness. This specialized component is responsible for connecting the Engine Control Unit (ECU) directly to the fuel injectors.

As automotive engineering pushes toward stricter emission standards and higher engine outputs, a well-engineered custom fuel injector harness ensures precise signal transmission. By delivering flawless electrical impulses, it guarantees optimal fuel atomization, maximizes engine power, significantly reduces fuel consumption, and ensures compliance with stringent global emission regulations. For B2B buyers, tier-level suppliers, and performance engineering teams, sourcing a high-quality, custom-built wiring harness is the first step toward building a superior automotive system.

How It Works & Core Functions: The Lifeline of Engine Performance

To understand the value of a premium injector harness, one must look at the sophisticated interplay between the ECU and the fuel delivery system.

When an engine operates, the ECU continuously calculates the exact amount of fuel required based on real-time data from various sensors (such as oxygen sensors, mass airflow sensors, and throttle position). The ECU then sends calculated electrical pulses through the fuel injector harness to the injector solenoids.

• Precision in Fuel Volume: The harness ensures that there is zero voltage drop or signal interference during transmission. This precise electrical delivery determines exactly how long the injector pintle stays open (pulse width), controlling the exact volume of fuel sprayed into the cylinder.
• Optimal Injection Timing: Even a millisecond delay caused by degraded or poorly manufactured wiring can lead to engine misfires or knocking. A high-quality harness guarantees instantaneous signal delivery, synchronizing fuel injection seamlessly with the engine’s intake stroke.
• Enhanced Combustion Efficiency: By maintaining perfect timing and volume, the harness ensures that the air-fuel mixture reaches the ideal stoichiometric ratio. This leads to complete combustion, delivering peak horsepower while minimizing unburned hydrocarbons in the exhaust.

Classifications, Features, and Industry Applications

The automotive aftermarket and OEM sectors require diverse wiring solutions tailored to specific operating environments.

Common Classifications

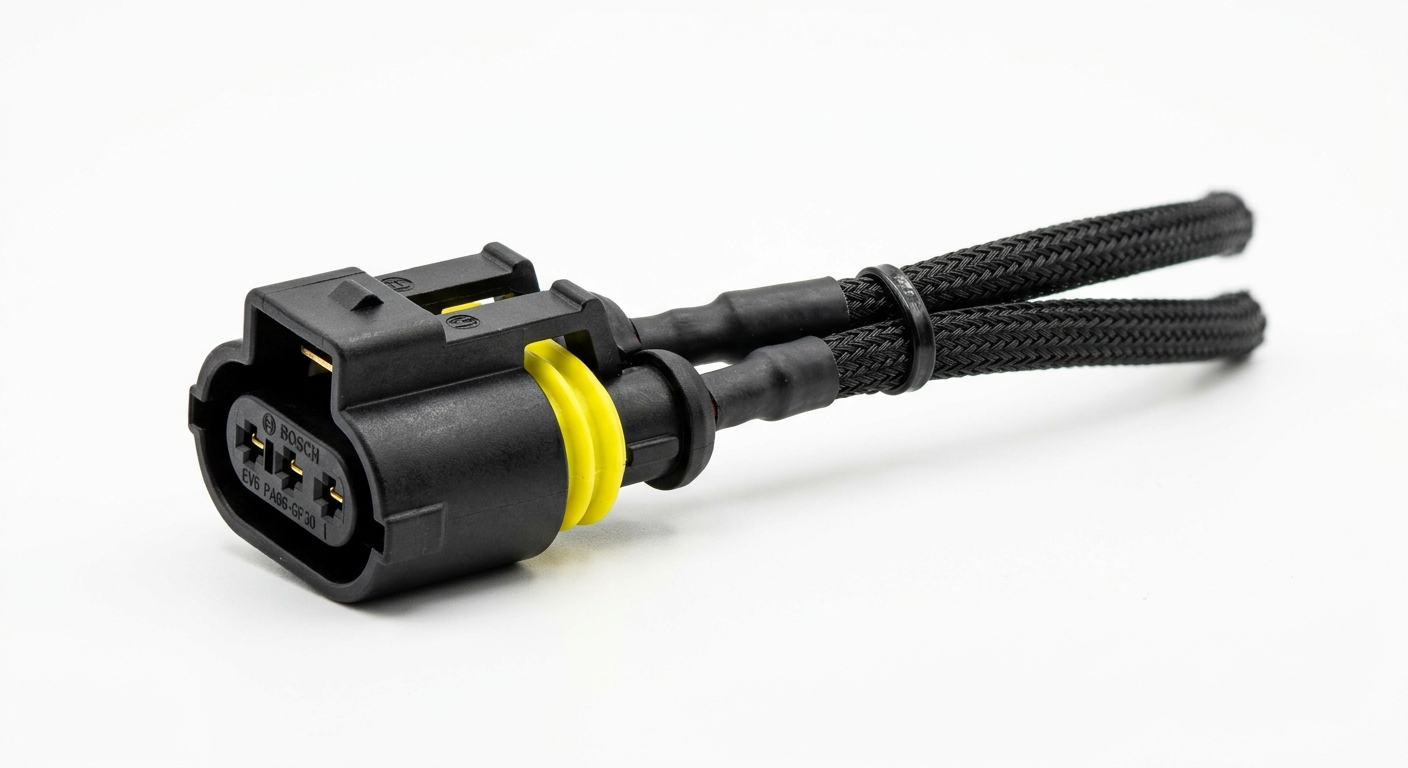

1. Pigtail Connectors / Adapters: Short wiring segments used primarily for retrofitting or repairing damaged factory connectors. They are highly sought after for quick fixes in Tier 2/3 auto repair shops.
2. Conversion Harnesses: Essential for automotive tuning enthusiasts and performance engineers. These allow an engine to utilize a different style of injector than the factory ECU was originally designed for (e.g., converting an EV1 wiring setup to accommodate modern EV6 or Denso injectors).
3. Complete Engine Harnesses: Fully integrated, multi-branch wiring looms designed for bespoke engine builds, commercial vehicles, or heavy-duty machinery.

Key Performance Features

• Extreme Heat Resistance: Engine bays generate immense heat. Premium harnesses utilize TXL or GXL cross-linked polyethylene insulated wires that withstand temperatures up to 125°C (257°F) or higher.
• Vibration and Abrasion Resistance: Encased in high-density nylon braided sleeving or corrugated split loom, the wiring is protected against the intense vibrations of high-RPM engines.
• Weatherproof Sealing: Utilizing IP67-rated sealed connectors with silicone ribbed weather packs to prevent moisture, oil, and chemical intrusion.

Application Scenarios

• Motorsports & Tuning: High-performance vehicles demand custom wire lengths, specialized heat-shrink tubing, and upgraded connectors to handle high-flow aftermarket injectors.
• Commercial Fleets & Heavy Duty: Trucks and agricultural machinery require heavy-gauge wiring and enhanced durability to endure harsh, continuous operating cycles.
• Automotive Repair (Tier 2/3): Direct replacement wiring harnesses that match OEM specifications for seamless integration and reduced labor time.

Technical Specifications

We engineer our products adhering strictly to international automotive manufacturing standards. Below are the standard technical specifications for our custom fuel injector harnesses:

Your Trusted Custom Wiring Harness Manufacturer

When sourcing critical automotive electrical components, reliability and manufacturing capability are paramount. As a professional wiring harness factory, we are dedicated to providing end-to-end B2B solutions for global auto parts buyers, engineering teams, and performance tuning brands.

• Certified Quality: We operate under strict ISO9001 and IATF16949 quality management systems. Every harness undergoes rigorous continuity, resistance, and tensile testing before leaving our facility, ensuring zero defects.
• Professional Design Team: Have a unique engine layout? Our dedicated engineering and R&D team can design and blueprint custom wiring configurations tailored exactly to your proprietary specifications.
• Flexible Manufacturing (Low MOQ): We understand the diverse needs of the aftermarket and custom engineering sectors. Whether you need a large-scale OEM production run or support for Low Minimum Order Quantities (Low MOQ) for specialized prototyping, our agile production lines can accommodate you.
• Factory-Direct Advantage: By partnering directly with us, you eliminate middlemen, ensuring competitive pricing, faster lead times, and direct technical support.

Ready to upgrade your automotive electrical systems? Partner with a manufacturer that understands automotive engineering. Contact our sales team today to discuss your custom fuel injector harness requirements, request a sample, or get a comprehensive quotation tailored to your project.
