The Ultimate Guide to Custom Endoscope Wiring Harnesses: Engineering Solutions for Medical & Industrial Applications
In the highly specialized fields of modern medicine and industrial non-destructive testing (NDT), the reliability of imaging equipment relies heavily on the internal components that power them. At the heart of these complex systems is the endoscope wiring harness. Whether used in a delicate surgical procedure or a rigorous pipeline inspection, an exceptionally engineered endoscope cable is mission-critical for transmitting flawless high-definition images, power, and control signals.
As a premier custom wiring harness manufacturer, we specialize in designing and manufacturing top-tier wire and cable assemblies tailored to the most demanding environments. This comprehensive guide explores the working principles, core features, technical specifications, and applications of advanced endoscope cables.
How It Works: The Working Principles and Functions
An endoscope wiring harness acts as the central nervous system of any endoscopic device. Its primary function is to establish a seamless, uninterrupted bridge between the distal tip (the camera and illumination module) and the central control unit (image processor and power supply).

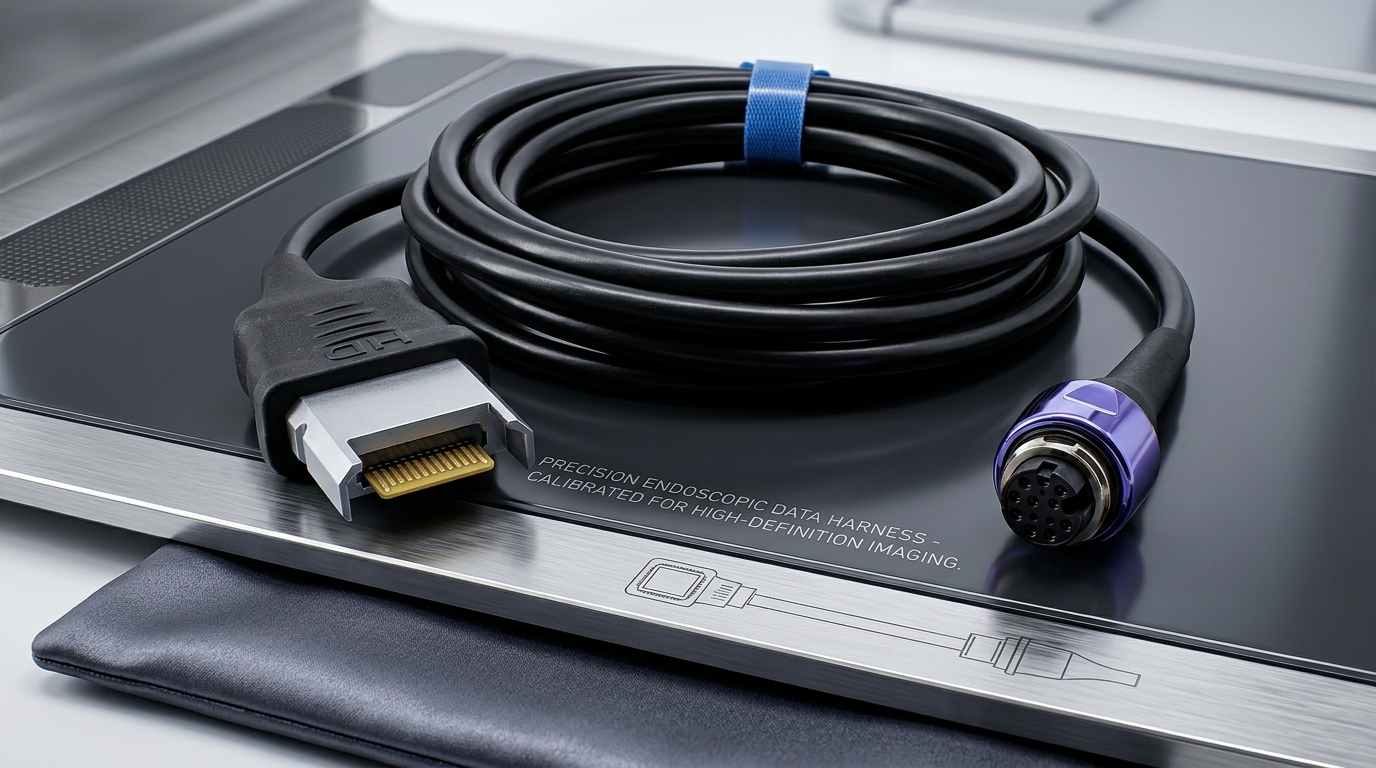

Working Principles: When an endoscope is inserted into a cavity or pipe, the distal sensor captures visual data. The endoscope camera cable utilizes ultra-fine coaxial or twisted-pair wires to transmit these high-frequency video signals (often 4K or 8K resolution) back to the processor at light speed. Simultaneously, separate conductors within the same harness deliver direct current (DC) power to the LED illumination system and transmit operational commands (such as steering or articulating the camera head) without mutual interference.
Overcoming Engineering Bottlenecks: Core Features
R&D engineers and procurement managers often face severe challenges when sourcing an endoscope cable. We have engineered our harnesses to specifically address the three most critical pain points in the industry:
Ultra-Compact Design for Tight Space Routing
Endoscopes are becoming smaller to minimize patient trauma and access narrower industrial crevices. Our cables are engineered with ultra-fine AWG (American Wire Gauge) micro-coaxial cables and ultra-thin fluoropolymer insulations. This allows for an extremely small outer diameter (OD), ensuring smooth, frictionless tight space routing within the endoscope's narrow insertion tube without sacrificing functionality.
High-Frequency Anti-Interference (EMI/RFI Shielding)
In operating rooms and heavy industrial plants, electromagnetic interference (EMI) can severely degrade image quality. To guarantee 100% signal integrity, our endoscope camera cable assemblies are built with high-density braided copper shielding and advanced aluminum foil wrapping. This high-frequency anti-interference design ensures crystal-clear, noise-free video transmission, critical for accurate diagnostics and inspections.
Exceptional Repeated Bending Durability
During navigation, endoscopes are continuously twisted, articulated, and bent. Standard cables fail quickly under these conditions. We utilize proprietary high-flex copper alloys and specialized PTFE/Teflon jackets, rigorously tested to withstand hundreds of thousands of flex cycles. This guarantees an extended repeated bending lifespan, drastically reducing equipment downtime and maintenance costs.
Classification and Application Scenarios
Depending on the operational environment, endoscope wiring harnesses are generally classified into two main categories, each requiring distinct material science and manufacturing approaches.

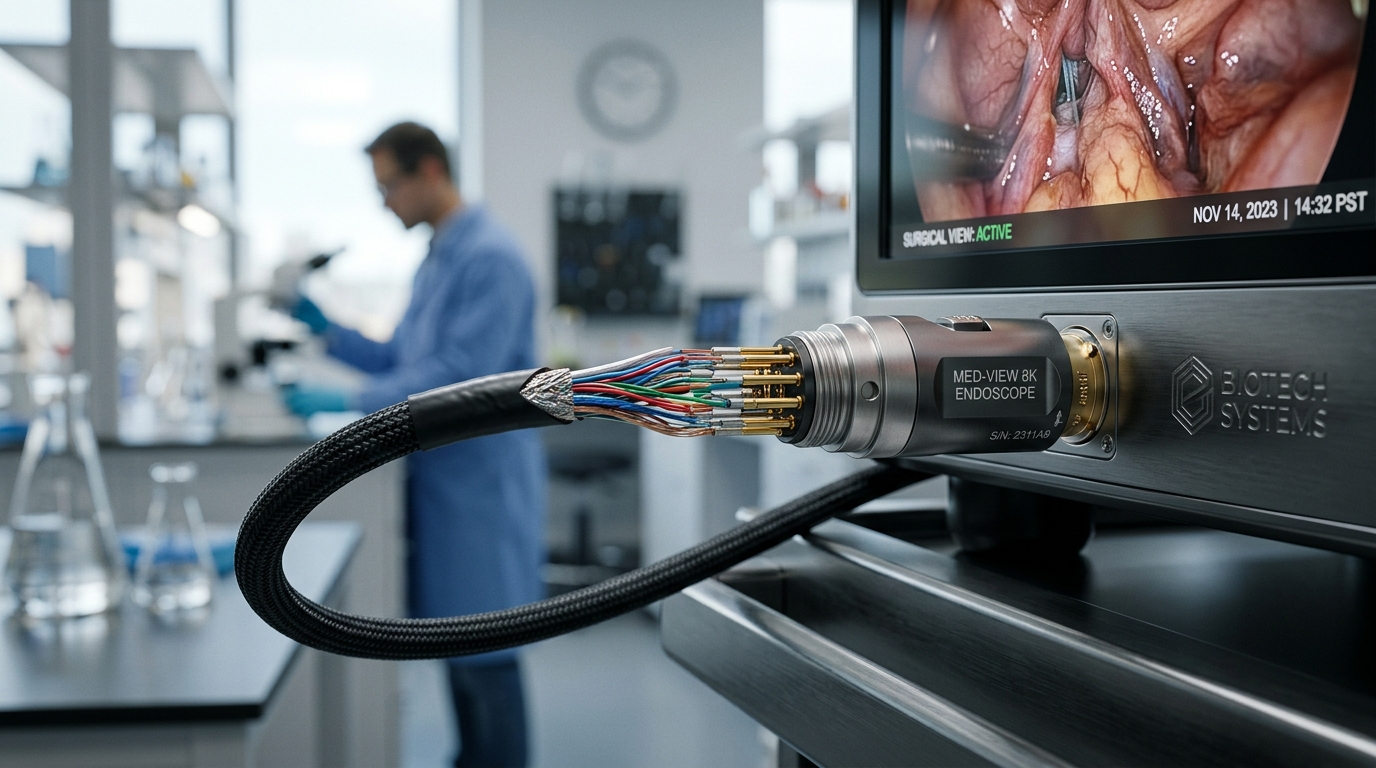

Medical Endoscope Cable
- Features: Biocompatibility, autoclavable (high-temperature and high-pressure steam sterilization resistant), highly flexible, and ultra-lightweight.
- Application Scenarios: Used extensively in minimally invasive surgeries, laparoscopy, gastroscopy, and bronchoscopy. These cables ensure flawless high-definition visualization for surgeons while meeting stringent FDA and ISO 13485 medical grade standards.
Industrial Endoscope Cable (Borescope Cable)
- Features: Extreme resistance to harsh chemicals, oil, water (IP68+ rated), abrasion, and extreme temperature fluctuations. Enhanced tensile strength.
- Application Scenarios: Widely utilized in aviation engine inspections, automotive manufacturing, pipeline monitoring, and heavy machinery diagnostics. The industrial endoscope cable is built to survive environments where standard cables would disintegrate.
Technical Specifications
To meet the rigorous demands of global B2B procurement, we provide fully customizable specifications. Below are the baseline parameters of our premium endoscope cables and connectors.
Wire Specifications
| Parameter | Specification Range | Key Advantage |
|---|---|---|
| Conductor Size | 36 AWG to 46 AWG | Ultra-fine design for tight space integration |
| Conductor Material | Silver-plated copper / High-flex alloy | Superior conductivity & flex life |
| Insulation/Jacket | PTFE, FEP, Silicone, or Medical-grade TPU | Biocompatible, autoclavable, or oil-resistant |
| Shielding | >95% Tinned copper braid + Foil | Eliminates EMI/RFI for clear video signals |
| Flex Cycles | 100,000+ cycles at tight radius | Extreme repeated bending durability |
| Outer Diameter (OD) | 0.8mm - 5.0mm (Customizable) | Perfectly fits various insertion tubes |
Connector Specifications
| Parameter | Specification Range | Key Advantage |
|---|---|---|
| Connector Types | Push-pull, Circular multi-pin, Micro-D, Custom | Secure, vibration-proof mating |
| Contact Plating | Gold over Nickel | Prevents oxidation, ensures stable transmission |
| IP Rating | IP67 / IP68 | Waterproof and dustproof for harsh environments |
| Mating Cycles | 5,000+ cycles | Long-lasting reliability for frequent plug/unplug |
Why Partner with Us? Your Trusted Custom Wiring Harness Manufacturer
Selecting the right manufacturing partner is crucial for the success of your imaging device. As an industry-leading custom wiring harness manufacturer, we do more than just supply cables; we deliver comprehensive engineering solutions.
- ISO9001 Certified Quality: Our factory operates under strict ISO9001 quality management systems. Every endoscope wiring harness undergoes rigorous electrical testing, high-voltage clearance, and visual inspections before shipping.
- End-to-End OEM/ODM Services: Whether you need a build-to-print solution or a complete design from scratch, our expert R&D team provides professional design support to bring your vision to life.
- Low Volume Production Supported: We understand that specialized medical and industrial equipment often requires prototyping and small-batch manufacturing. We proudly support low volume production (High-Mix Low-Volume - HMLV) to help you test the market without massive inventory risks.
- One-Stop Solution: From wire extrusion and connector tooling to final assembly and custom packaging, we handle the entire supply chain, significantly reducing your time-to-market.
Ready to Elevate Your Endoscope Equipment?
Don't let subpar cabling compromise the performance of your high-value imaging equipment. Whether you are developing a next-generation surgical tool or a rugged industrial inspection camera, our bespoke endoscope cable assemblies are engineered to exceed your expectations.
Contact our engineering team today! Send us your drawings, specifications, or application requirements, and let us provide a customized technical proposal and rapid prototyping quote within 24 hours.
