Ultimate Guide to Medical Wiring Harnesses for Diagnostic Equipment

In the rapidly evolving landscape of modern healthcare, the accuracy of diagnostic imaging relies fundamentally on the integrity of data transmission. As medical technology drives toward high-frequency signal integrity and extreme miniaturization, the demand for precision-engineered medical wiring harnesses for diagnostic equipment has never been higher. These critical components serve as the central nervous system for X-ray imaging, computed tomography (CT), and magnetic resonance imaging (MRI) systems.

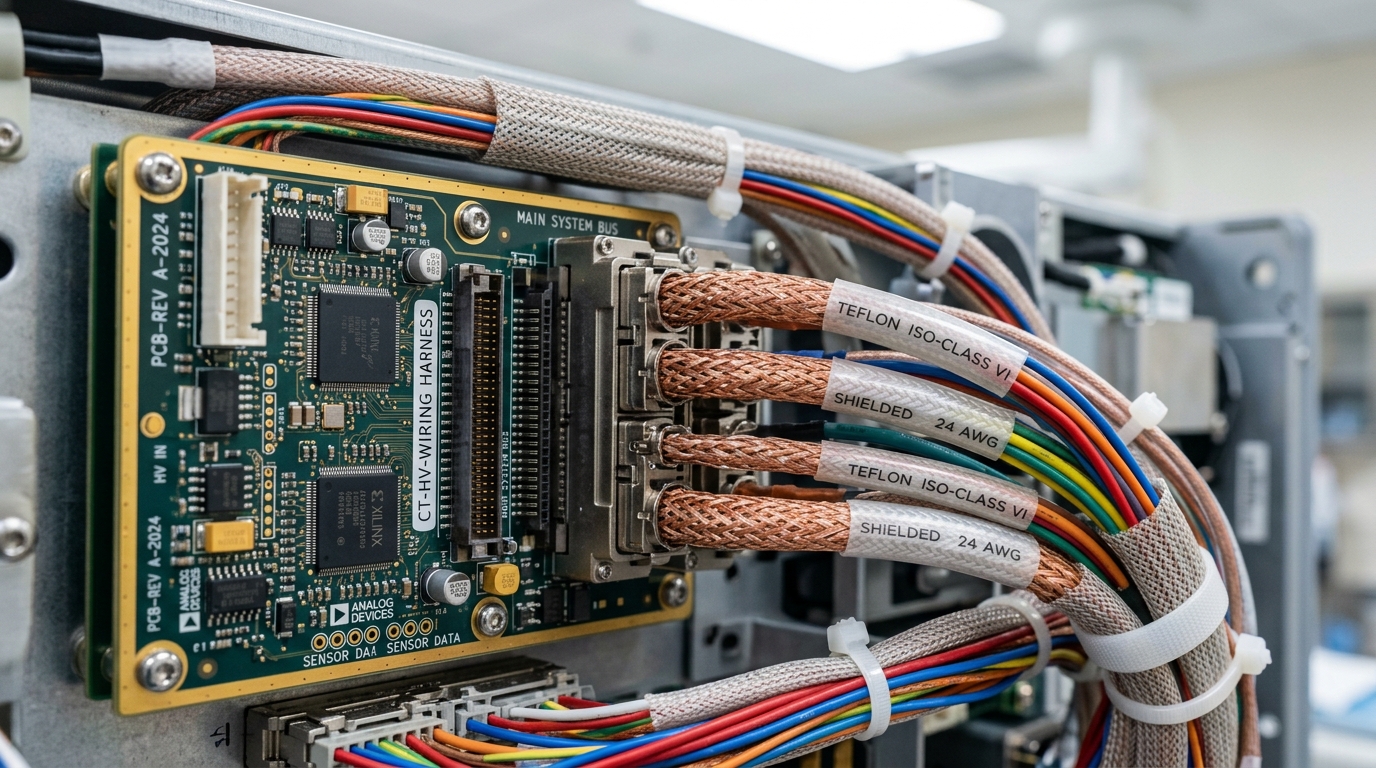

Whether transferring power, routing control signals, or facilitating high-speed data acquisition, a high-quality diagnostic medical device wire harness ensures flawless communication between machine sensors and computing units. In life-saving diagnostic environments, there is zero tolerance for latency, signal degradation, or electromagnetic interference (EMI).

Specialized Applications of Diagnostic Medical Device Wire Harnesses

To meet the rigorous demands of global medical device OEMs, a specialized medical diagnostic cable assembly must be engineered for its specific clinical application. The performance criteria vary drastically depending on the imaging modality and patient interaction level.

CT Scanner Medical Wiring Harness: Advanced Anti-Interference

A CT scanner medical wiring harness is subjected to constant high-speed rotational forces and intense data throughput requirements. These harnesses are engineered with robust anti-interference shielding to prevent cross-talk and data corruption. By maintaining high-frequency signal integrity, they enable the real-time reconstruction of high-resolution 3D anatomical images without lag.

Ultrasound Diagnostic Equipment Wiring: High-Flexibility Shielding

Ultrasound probes require cables that provide ultra-high flexibility while maintaining stringent electrical shielding. Due to continuous bending and twisting by medical sonographers, these harnesses utilize specialized micro-coaxial cables and high-flexibility shielding materials. This construction ensures a long mechanical lifecycle and superior maneuverability without compromising the transmission of sensitive acoustic data.

MRI-Compatible Cable Assemblies: Non-Magnetic & Artifact-Free

MRI environments generate immense magnetic fields, necessitating strictly non-magnetic wiring solutions. MRI-compatible harnesses are manufactured using specialized alloys and dielectrics to guarantee no eddy current heating and zero image artifacts. This prevents localized heating that could harm patients while ensuring the magnetic resonance imaging remains completely pristine and distortion-free.

X-Ray Diagnostic Wiring: High Radiation Resistance

Routine exposure to ionizing radiation can degrade standard polymers, leading to insulation failure and electrical shorts. Wiring harnesses designed for X-ray diagnostic machines are constructed using radiation-resistant materials such as cross-linked polymers and specialized fluoropolymers (PTFE/Teflon). This ensures long-term structural integrity and electrical safety in high-radiation exposure zones.

Patient Monitor Harnesses: Strict Medical Electrical Safety

Cables connecting patients to diagnostic monitors must comply with the strictest medical electrical safety standards (such as IEC 60601-1) and biocompatibility requirements (ISO 10993). These harnesses feature medical-grade silicone or TPU jackets that are non-toxic, hypoallergenic, and highly durable against harsh chemical sterilizations, ensuring maximum patient safety and comfort.

Engineering Principles: How a Medical Diagnostic Cable Assembly Works

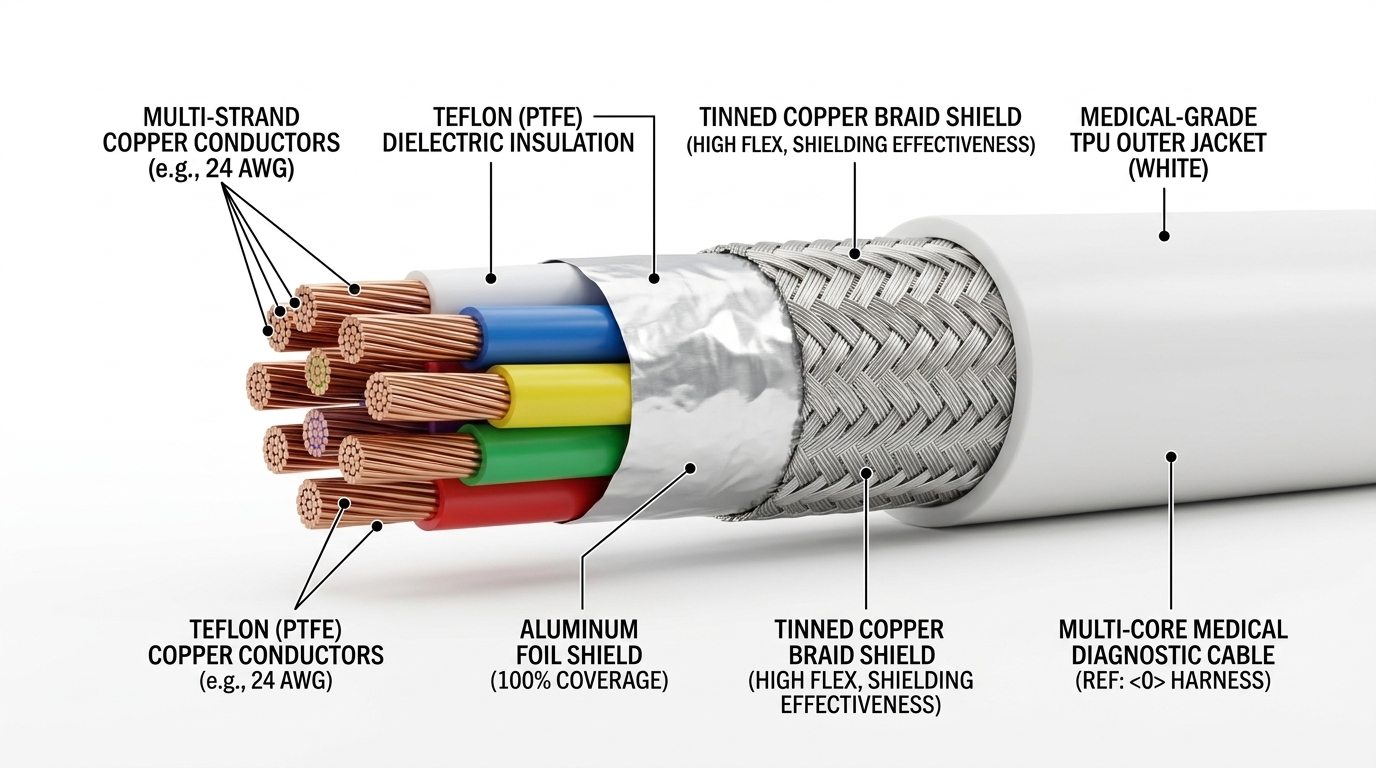

At the core of any high-performance diagnostic system is the flawless execution of electrical and signal transmission. In high-frequency environments, a medical diagnostic cable assembly works by utilizing precise impedance matching and multi-layer EMI/RFI shielding. The primary conductive core transmits microvolt-level biological or sensor signals, while the heavily braided shielding reflects external electromagnetic noise. This prevents ambient hospital equipment from corrupting the diagnostic data.

To achieve optimal performance, durability, and safety, these wiring harnesses are manufactured according to strict technical specifications.

Partner with a Premier Custom Wiring Harness Manufacturer

When developing next-generation medical imaging systems, off-the-shelf cables often fail to meet exact spatial and electrical requirements. As a highly experienced custom wiring harness manufacturer, we specialize in engineering a custom medical wiring harness for diagnostic devices tailored perfectly to your proprietary equipment.

Operating out of an ISO9001 certified and medical-grade manufacturing facility, we provide comprehensive OEM/ODM services designed to accelerate your R&D lifecycle. We understand that medical prototyping requires agility, which is why we offer dedicated low-volume production support for clinical trials and early-stage device rollouts. Supported by a professional design team with decades of collective experience in medical device interconnects, we ensure that every harness we deliver maximizes device reliability, regulatory compliance, and market readiness.

Are you ready to elevate your diagnostic equipment's performance with unparalleled signal integrity and mechanical durability? Contact our engineering team today to discuss your customized medical wiring harness solutions and request a technical consultation.
