The Ultimate Guide to Medical Monitoring Equipment Wiring Harness Customization

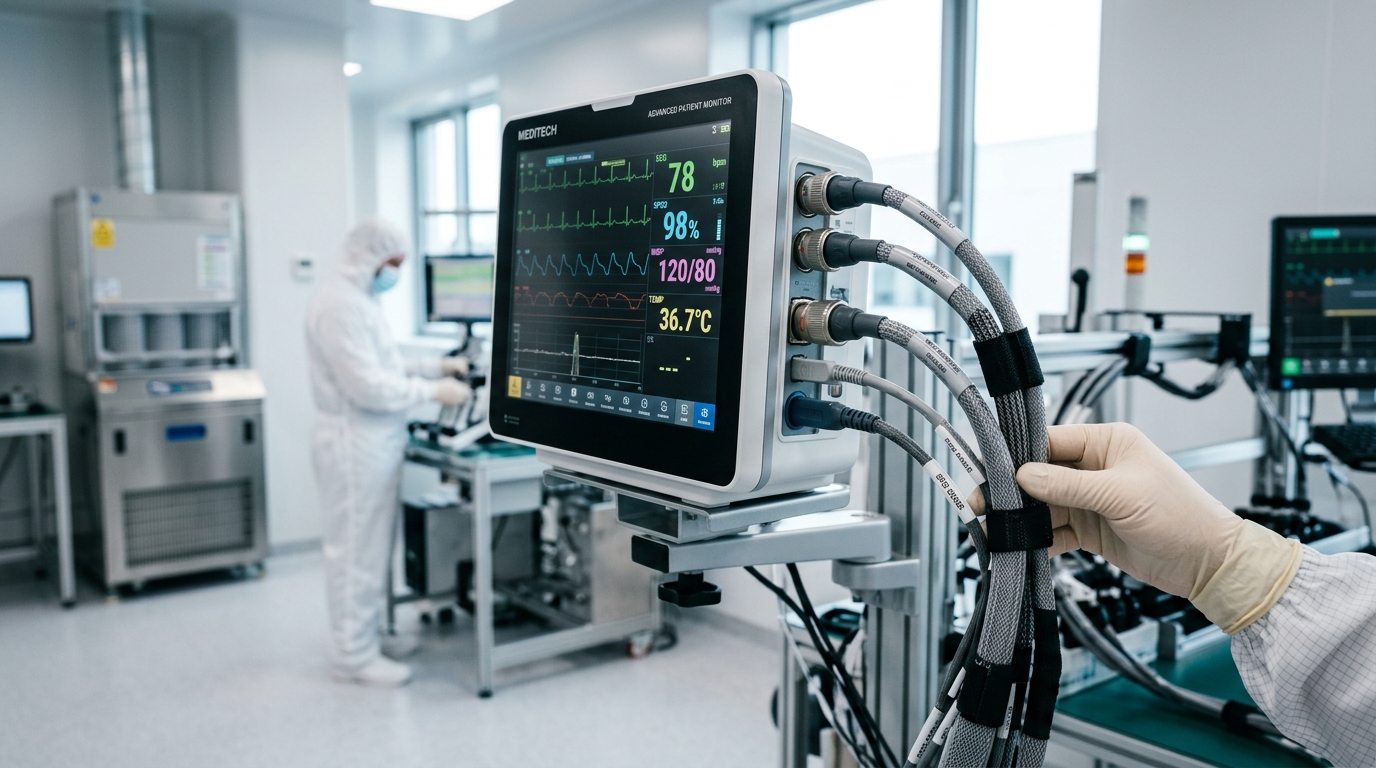

In the highly regulated medical industry, clinical safety and data accuracy are non-negotiable. At the heart of every reliable patient monitor lies a meticulously engineered medical monitoring equipment wiring harness. These complex networks of cables and connectors act as the central nervous system of clinical devices, ensuring continuous power supply and the flawless transmission of critical life-saving data.
For medical device manufacturers, R&D engineers, and procurement managers, sourcing a patient monitor wiring harness from a reliable supplier is crucial to passing stringent regulatory certifications and ensuring zero-failure performance in critical care environments.
Why Clinical Safety Relies on High-Quality Medical Monitor Cable Assemblies
The core function of a hospital medical device wiring harness is twofold: reliable power distribution and ultra-precise vital signs signal transmission. In environments like Intensive Care Units (ICUs) and operating rooms, monitors must capture micro-volt biological signals (such as ECG, SpO2, and respiratory rates) without any latency or signal degradation.
A poorly constructed harness can lead to electromagnetic interference (EMI), resulting in inaccurate monitor readings, false alarms, or delayed medical interventions. Therefore, premium vital signs monitor internal wiring must feature superior EMI/RFI shielding, biocompatible jacket materials, and robust mechanical flexibility to withstand constant hospital use.
Classification, Features, and Application Scenarios
As a specialized custom wiring harness manufacturer, we engineer a wide variety of cable solutions tailored to specific medical monitoring applications.
1. Classification
- Vital Signs Sensor Cables: External cables connecting the patient to the device (e.g., ECG trunk cables, SpO2 extension cables, NIBP hoses).
- Internal Motherboard Harnesses: The vital signs monitor internal wiring that connects the power supply unit, main display, and processing modules inside the equipment chassis.
- Data and Communication Cables: Harnesses designed for networking medical devices to centralized hospital information systems.
2. Key Features
- Biocompatibility: External harnesses utilize medical-grade TPU or silicone jackets that are hypoallergenic and compliant with ISO 10993 standards.
- Anti-Interference: Multi-layered shielding (tinned copper braid and aluminum foil) to block high-frequency surgical equipment interference.
- Durability and Sterilization: Designed to endure repeated bending, pulling, and harsh chemical cleaning/sterilization processes.
3. Application Scenarios

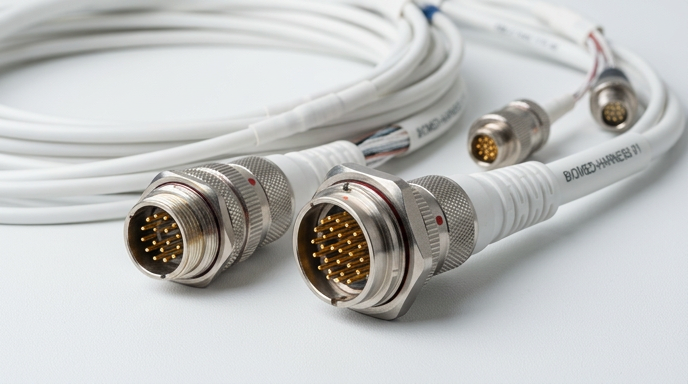

Our medical monitor cable assemblies are widely integrated into:
- Multi-parameter patient monitors in ICUs.
- Portable transport monitors for emergency medical services (EMS).
- Anesthesia monitors in operating theaters.
- Fetal and maternal monitors in obstetrics.
Functions and Working Principles
The working principle of a medical monitoring equipment wiring harness relies on the seamless conversion and transmission of bio-electrical signals. Electrodes or sensors attached to the patient capture weak physiological signals. The harness safely transmits these low-voltage analog signals to the monitor's processing unit, where they are converted into digital data displayed on the screen. Simultaneously, internal wiring provides isolated, stable power to prevent electrical shock, ensuring maximum patient protection.
Technical Specifications
To meet the rigorous demands of global medical equipment developers, we strictly adhere to industry-standard specifications. Below are the typical parameters for our customizable hospital medical device wiring harness solutions.
Table 1: Wire Specifications
| Parameter | Specification Details |
|---|---|
| Conductor Material | High-purity Oxygen-Free Copper (OFC), Tinned Copper, Silver-plated Copper |
| Wire Gauge (AWG) | 18 AWG to 32 AWG (Customizable based on power/signal needs) |
| Insulation Material | Medical-grade Teflon (PTFE), FEP, XLPE |
| Jacket Material | Medical-grade TPU, Silicone, TPE (Latex-free, PVC-free options available) |
| Shielding | Aluminum foil + Tinned copper braiding (Coverage > 95% for high EMI resistance) |
| Temperature Rating | -40°C to +105°C (Silicone up to +200°C for sterilization) |
| Voltage Rating | 30V, 300V, or customized high-voltage isolation |
Table 2: Connector Specifications
| Parameter | Specification Details |
|---|---|
| Connector Types | Push-pull circular connectors, D-Sub, Micro-Fit, Wafer, Custom overmolded plugs |
| Pin Count | 2-pin to 30+ pins (High-density configurations available) |
| Contact Material | Brass or Phosphor Bronze with Gold plating (3u" to 50u" for low resistance) |
| Locking Mechanism | Friction lock, Snap-in, Threaded, Push-pull auto-latch |
| IP Rating | IP65, IP67, or IP68 (Waterproof and dustproof for clinical environments) |
| Mating Cycles | > 5,000 to 10,000 cycles (High durability for hospital use) |
Partner with a Reliable Custom Wiring Harness Manufacturer
When sourcing critical components like a patient monitor wiring harness, choosing the right manufacturing partner dictates the success of your final medical device. As a leading, ISO9001 certified custom wiring harness manufacturer, we possess the technical expertise and supply chain stability to support your projects from prototype to mass production.
Why Choose Us as Your B2B Supplier?
- ISO9001 & Industry Compliance: Our factory operates under strict quality management systems, ensuring every medical monitor cable assembly meets international safety and performance standards.
- OEM/ODM Solutions: Our professional design team collaborates directly with your R&D engineers to create tailored end-to-end wiring solutions, from 3D modeling to material selection and final assembly.
- Flexible Low Volume Production: We understand the development cycle of medical devices. We support low volume production and prototyping, helping you test and refine your designs without massive initial investments.
- Cost-Effective Bulk Purchase: For established product lines, we offer highly competitive pricing for bulk purchases, ensuring your supply chain remains profitable without compromising on clinical quality.
Ready to Optimize Your Medical Device Supply Chain?
Do not compromise on the internal lifelines of your critical care equipment. Whether you need custom vital signs monitor internal wiring or external patient cables, our engineering team is ready to deliver.
Contact us today to discuss your technical drawings, request a sample, or get a competitive quote for your custom manufacturing needs!
