Custom Medical Ultrasound Cable Assembly: The Core of High-Resolution Imaging
In the highly demanding field of diagnostic imaging, the medical ultrasound cable assembly is not merely a peripheral accessory; it is the critical data conduit that connects the piezoelectric crystals of the transducer to the main processing unit. To achieve flawless, high-resolution imaging signal transmission, modern ultrasound equipment relies heavily on ultra-fine multi-core micro-coaxial structures.

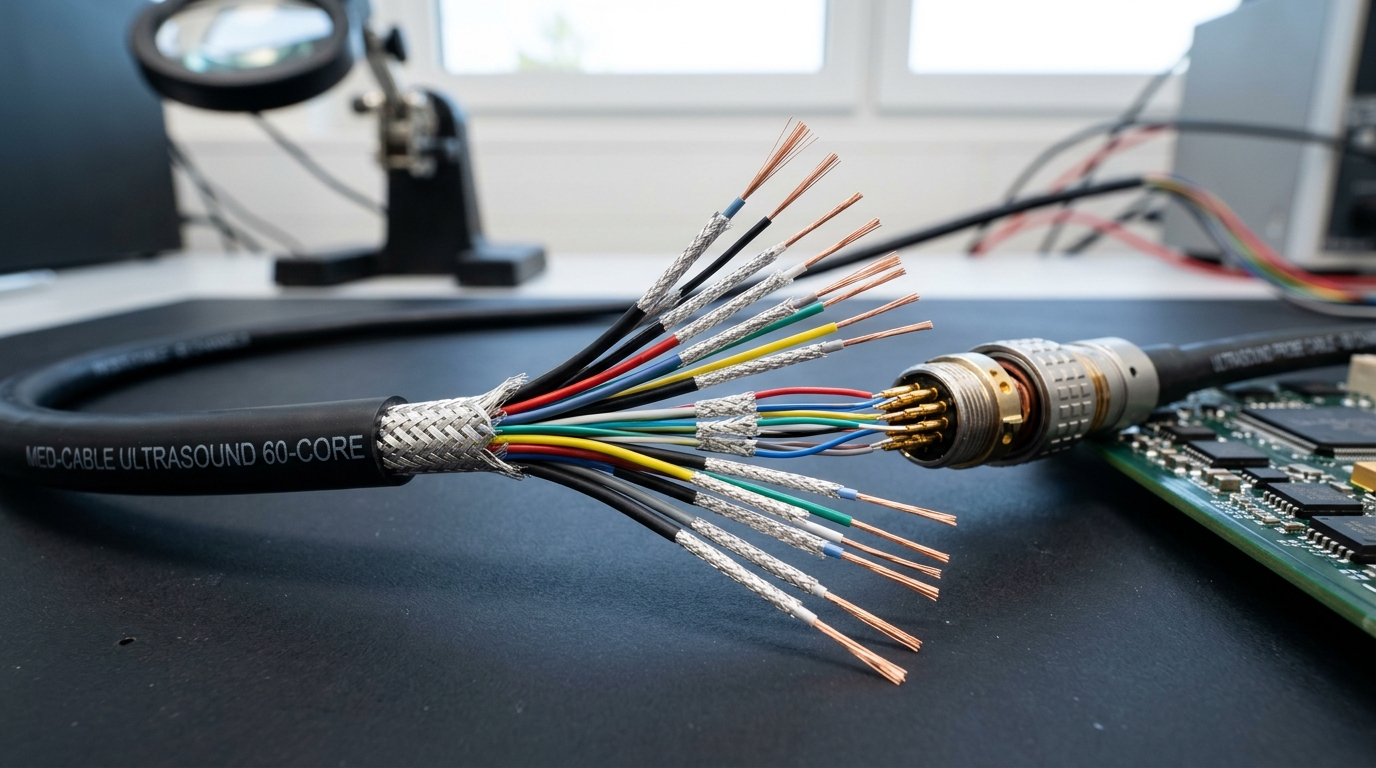

As a professional custom wiring harness manufacturer, we engineer every medical ultrasound probe cable to deliver exceptional signal integrity, superior flexibility, and unmatched durability. Whether you are developing advanced 4D imaging systems or compact point-of-care ultrasound (POCUS) devices, integrating a top-tier ultrasound probe wire harness assembly is the foundational step toward guaranteeing clinical diagnostic accuracy.
The Working Principle: Why Signal Integrity Matters
The primary function of an ultrasound transducer cable is to transmit high-frequency electrical pulses to the piezoelectric elements and return the highly sensitive, low-amplitude acoustic echo signals back to the system.

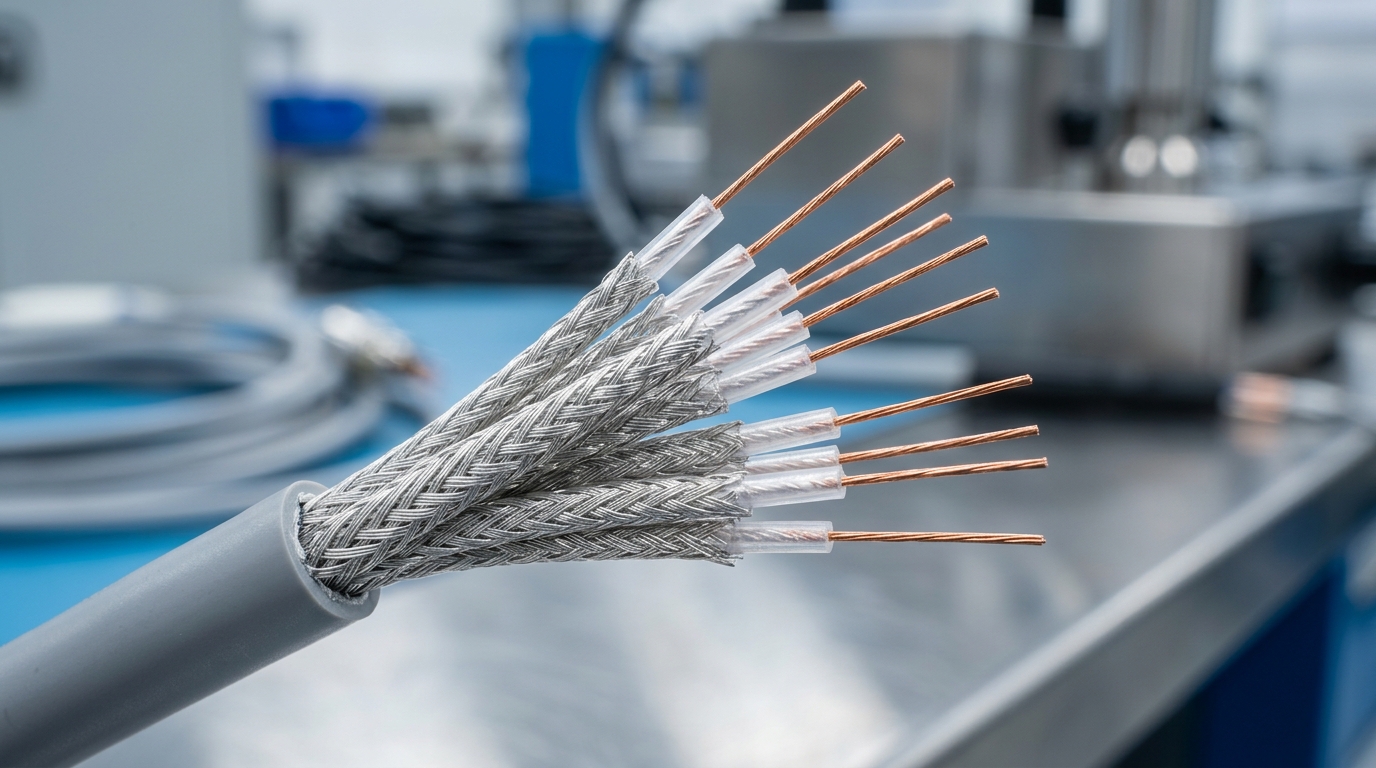

In clinical diagnostics, even the slightest electromagnetic interference (EMI) or signal loss can result in image artifacts, directly compromising a physician's ability to diagnose vascular conditions, fetal development, or cardiac anomalies. To combat this, our cables utilize an ultra-fine micro-coaxial structure. Each individual micro-coaxial wire acts as an independent shielded channel, minimizing crosstalk, matching exact impedance requirements (typically 50Ω or 75Ω), and drastically reducing capacitance. This meticulous engineering guarantees that the signal integrity remains flawless from the probe head to the processing console.
Classification & Key Features
Medical ultrasound cables must balance electrical performance with extreme mechanical demands. We categorize and manufacture our assemblies based on probe types and clinical requirements:
- Linear Array & Convex Array Cables: Designed for standard abdominal and vascular imaging. These cables feature high core counts (up to 256 or more micro-coaxial lines) while maintaining a surprisingly small outer diameter (OD).
- Phased Array Cables: Primarily used in cardiology, requiring exceptional flexibility and EMI shielding to capture rapid heart movements without signal degradation.
- Transesophageal Echocardiography (TEE) Cables: Engineered with high-grade, biocompatible jacketing materials that withstand strict sterilization protocols and provide extreme mechanical robustness.
Core Features of Our Assemblies:
- Superior Flex Life: Tested to withstand over 100,000 bending cycles, accommodating the complex maneuvers of sonographers.
- Biocompatibility: Outer jackets comply with ISO 10993 standards, ensuring safety upon patient skin contact.
- Advanced Shielding: Multi-layer braided and foil shielding to eliminate RFI/EMI in electrically noisy hospital environments.
Clinical Applications & Scenarios
Our custom ultrasound probe wiring solutions are deployed across a diverse spectrum of medical device platforms:
- Cart-Based Diagnostic Ultrasound Systems: High-channel-count assemblies required for premium OB/GYN, cardiology, and radiology imaging.
- Point-of-Care Ultrasound (POCUS): Lightweight, highly flexible, and durable cables tailored for emergency rooms, ICUs, and field medics.
- Veterinary Ultrasound: Ruggedized assemblies designed to resist animal bites, harsh disinfectants, and rough handling in veterinary clinics.
- Intravascular Ultrasound (IVUS): Micro-miniature cables capable of navigating through the human vascular system, demanding the pinnacle of micro-coaxial extrusion technology.
Product Specifications
To meet the rigorous standards of global medical device engineers, we provide highly customizable parameters. Below are the technical specifications for our standard and custom medical ultrasound cable assembly solutions.
| Parameter Category | Technical Specifications & Options |
|---|---|
| Wire Structure | Ultra-fine micro-coaxial, Twinax, Twisted pair |
| Wire Gauge (AWG) | 36 AWG, 38 AWG, 40 AWG, 42 AWG, 44 AWG, 46 AWG |
| Core Count | 64, 128, 192, 256, up to 512 channels |
| Impedance | 50Ω ± 3Ω / 75Ω ± 3Ω (Customizable) |
| Capacitance | Ultra-low capacitance (< 50 pF/m depending on AWG) |
| Shielding | Silver-plated copper braid + Aluminum foil (Coverage > 95%) |
| Jacket Material | Medical-grade Silicone, TPU, TPE, PVC (ISO 10993 compliant) |
| Connector Specifications | High-density ITT Cannon, ZIF connectors, DL series, Custom over-molded PCB connectors |
| Sterilization Compatibility | EtO, Gamma radiation, Cold sterilization wipe-down |
| Flex Life | > 100,000 to 300,000 cycles (Bending radius customized) |
Why Choose Us: Your Professional Custom Wiring Harness Manufacturer
Sourcing a reliable ultrasound probe wire harness assembly requires partnering with a manufacturer that understands both the electrical physics and the medical regulatory landscape. As a dedicated custom wiring harness manufacturer, we bring unparalleled enterprise strength to your supply chain:
- ISO 9001 & ISO 13485 Certified: Our manufacturing facilities adhere to the strictest quality management systems tailored for medical device components. Every cable undergoes 100% automated electrical testing (AET) and high-voltage (Hipot) testing before dispatch.
- Comprehensive OEM/ODM Services: We don't just build to print; we build to perform. Our professional R&D and design team collaborates with your engineers to provide end-to-end solutions—from initial structural design and PCB termination to over-molding and final assembly.
- Low MOQ Support (Small Batch Production): We understand that medical device R&D requires flexibility. We proudly support Low Minimum Order Quantities (MOQ) to facilitate your prototyping, clinical trials, and initial market rollouts without tying up your capital.
- Advanced Over-Molding Capabilities: We provide custom strain reliefs and ergonomically designed connector housings that enhance the sonographer's user experience while protecting the delicate internal micro-coaxial joints.
Ready to Upgrade Your Ultrasound Equipment?
Do not let inferior signal transmission limit the potential of your imaging devices. Partner with us to secure a robust, high-performance, and cost-effective medical ultrasound cable assembly.
Contact our engineering team today to discuss your specific technical requirements, request a free sample, or get a customized quotation for your next medical device project.
