The Ultimate Guide to SpO2 Sensor Cables: Elevating Patient Monitoring Precision
In the rapidly evolving landscape of modern healthcare, the demand for smart, continuous, and portable patient monitoring devices has reached unprecedented heights. At the core of these critical life-saving systems is a seemingly simple yet profoundly essential component: the SpO2 sensor cable. As hospitals and clinical environments prioritize patient safety and material biocompatibility, medical device manufacturers are under immense pressure to source high-quality, interference-free cables.
Whether you are designing next-generation wearables or upgrading hospital ICU equipment, selecting the right Pulse oximeter sensor cable directly impacts the accuracy of blood oxygen saturation readings. As a leading custom wiring harness manufacturer, we delve deep into the technical intricacies, classifications, and custom solutions of these critical medical cables to help B2B buyers make informed procurement decisions.
Working Principle: The Lifeline of Pulse Oximetry
The SpO2 sensor cable acts as the crucial communication bridge between the optical sensor attached to the patient (usually on the finger, earlobe, or neonate foot) and the patient monitor. Its primary function is a dual-path transmission of power and highly sensitive micro-signals.
First, the cable transmits the electrical drive signals from the monitor to the sensor's Light Emitting Diodes (LEDs)—typically one emitting red light (660 nm) and another emitting infrared light (940 nm). Once the light passes through the patient's vascular bed, the photodiode detects the unabsorbed light and converts it into a weak electrical current. The Oxygen sensor cable for patient monitor then carries this fragile microampere signal back to the monitor for complex algorithmic processing. Because these physiological signals are highly susceptible to electromagnetic interference (EMI), the internal shielding structure of the cable is paramount to ensuring artifact-free, life-critical data.

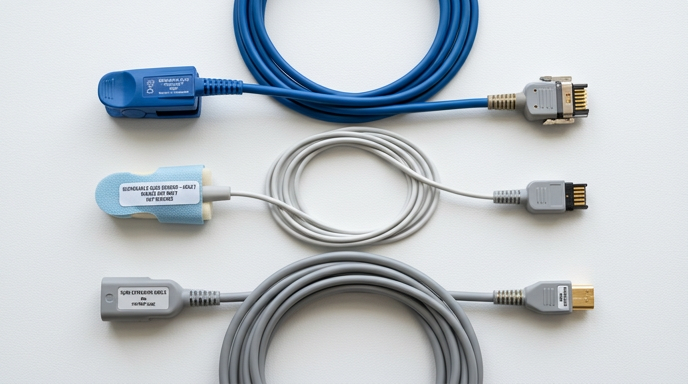

Classification of SpO2 Cables
Medical equipment engineers and hospital procurement teams must select the appropriate cable type based on the clinical application. The primary classifications include:
- Reusable SpO2 sensor cable: Designed for long-term durability and multiple patient uses. These cables feature robust outer jackets built to withstand rigorous hospital cleaning protocols, sterilization, and thousands of bending cycles.
- Disposable SpO2 Sensor Cables: Intended for single-patient use to prevent cross-contamination, heavily utilized in highly infectious environments or surgical wards.

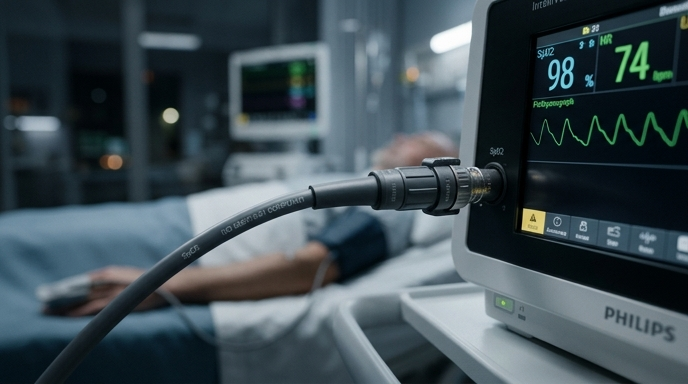

- SpO2 extension cable: Also known as trunk cables or adapter cables. These connect a shorter sensor cable to the main patient monitor, providing necessary mobility for the patient while maintaining signal integrity over longer distances.
Core Features of High-Quality SpO2 Cables
When purchasing in bulk or seeking OEM solutions, B2B buyers should evaluate the following superior features that define a premium Pulse oximeter sensor cable:
- Exceptional Signal Integrity: Advanced dual-layer shielding (copper braid and aluminum foil) to block ambient EMI and RFI, ensuring flawless data transmission even in noisy surgical environments.
- Medical-Grade Biocompatibility: Jackets made from premium TPU (Thermoplastic Polyurethane) or medical silicone that are latex-free, non-toxic, and comply with ISO 10993 standards to prevent patient skin irritation.
- Mechanical Durability: Enhanced strain relief designs that pass stringent flex-testing (often >10,000 bending cycles), preventing internal wire breakage and extending product lifespan.
- Broad Compatibility: Precision-engineered connectors customized to be perfectly compatible with top-tier monitor brands (e.g., Nellcor, Masimo, Philips, GE).
Clinical Scenarios and Use Cases
A reliable Oxygen sensor cable for patient monitor is indispensable across various high-stress medical environments:
- Intensive Care Units (ICU): Continuous, reliable monitoring where robust Reusable SpO2 sensor cables are required for critically ill patients.
- Operating Rooms (OR): High-interference zones where heavily shielded cables are necessary to reject noise from electrosurgical units.
- Emergency Rooms (ER) & Ambulances: Fast-paced environments requiring highly flexible and durable cables that can withstand rough handling.
Technical Specifications
To meet the rigorous demands of medical device engineers, we provide transparent and customizable technical parameters. Below are the standard specifications for our premium medical cable assemblies:
| Specification Category | Technical Parameters & Materials |
|---|---|
| Conductor Material | Bare Copper, Tinned Copper, or Silver-Plated Copper alloy (High conductivity) |
| Wire Gauge (AWG) | 28 AWG to 32 AWG (Customizable based on flexibility requirements) |
| Insulation | Medical-grade PE, FEP, or Teflon for low dielectric constant |
| Shielding | Tinned copper braiding (Coverage >85%) + Aluminum foil wrap |
| Jacket Material | Medical-grade TPU (Thermoplastic Polyurethane), Latex-Free, Biocompatible |
| Cable Outer Diameter (OD) | 2.5mm - 5.0mm (Customizable for main trunk or finger sensor) |
| Connector Pins | Gold-plated brass (for superior corrosion resistance and signal transfer) |
| Connector Type | Push-pull circular connectors, D-sub, or custom molded ends (OEM specified) |
| Flex Life | > 10,000 cycles (at 90-degree bend, 500g load) |
| Operating Temperature | -10°C to +60°C |
Your Trusted Custom Wiring Harness Manufacturer
As a specialized medical cable factory, we understand that standard off-the-shelf products cannot always meet the innovative designs of modern medical devices. We provide comprehensive end-to-end manufacturing services tailored for global B2B clients, medical equipment OEMs, and distributors.
- Certified Quality: We are a proud ISO9001 and ISO13485 certified facility, ensuring every SpO2 extension cable adheres to the strictest global medical manufacturing standards.
- Comprehensive OEM/ODM Services: From initial CAD drawing and prototyping to mass production, our professional design team collaborates closely with your engineers to deliver a fully custom solution.
- Flexible Low Volume Production: We support Low MOQ (Minimum Order Quantity) for specialized medical device startups and niche clinical applications, ensuring you can test and launch without heavy inventory burdens.
- Factory Price Advantage: By optimizing our supply chain and manufacturing processes in-house, we offer highly competitive factory direct pricing for bulk procurement without compromising on premium quality.
Partner with Us for High-Quality Medical Cables
Do not let subpar cabling compromise the accuracy of your patient monitoring devices. Whether you need standard Reusable SpO2 sensor cables in bulk or a completely customized Pulse oximeter sensor cable designed from scratch, we have the manufacturing capability and engineering expertise to deliver.
Ready to upgrade your medical equipment supply chain? Contact our technical sales team today to discuss your project requirements, request a free sample, or get an instant quote with our unbeatable factory price. Let us be your long-term partner in building safer, more reliable healthcare technology.
Contact us now to get your custom medical cable solution!
