Custom Medical Therapeutic Equipment Wiring Harness: Engineered for Reliability and Precision
In the highly regulated and mission-critical medical industry, the performance of therapeutic equipment is a matter of life and death. The backbone ensuring the flawless operation of these advanced machines is the medical therapeutic equipment wiring harness. As a professional custom wiring harness manufacturer, we understand that medical device engineers and supply chain managers require components that deliver zero-failure performance, uncompromising safety, and strict regulatory compliance.
Whether you are developing next-generation radiation machines or advanced surgical lasers, this comprehensive guide will walk you through the essential technical details, working principles, and specifications of our medical-grade wiring solutions.
The Core Functions and Working Principle
Critical Functions

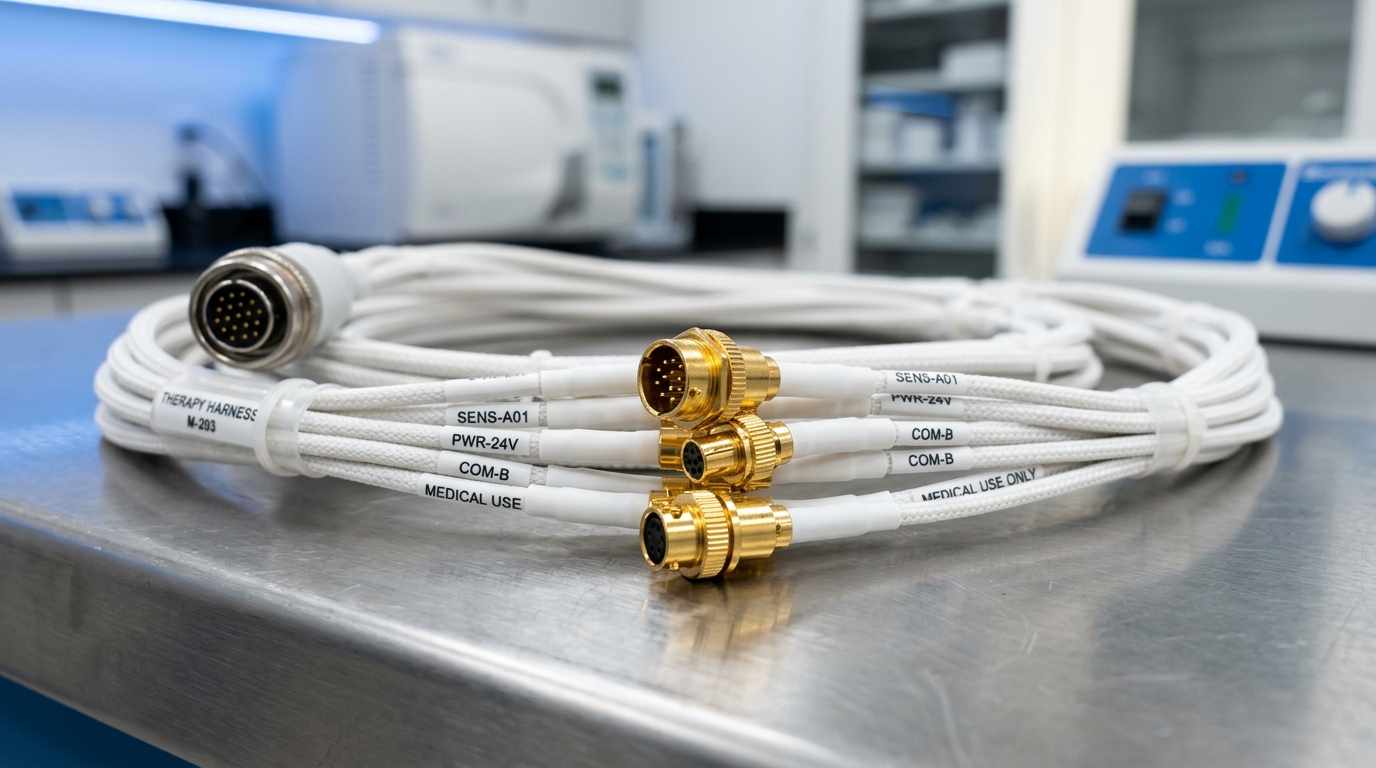

A medical treatment device cable assembly acts as the central nervous system of any therapeutic machine. Its primary functions include:
- Stable Power Transmission: Delivering uninterrupted, regulated power to high-voltage actuators, pumps, and motors.
- High-Speed Data & Signal Communication: Ensuring lossless, real-time data transfer between sensors, the control motherboard, and user interfaces.
- Safety Assurance: Providing critical grounding and fault protection to safeguard both the patient and the medical operator from electrical hazards.
Working Principle

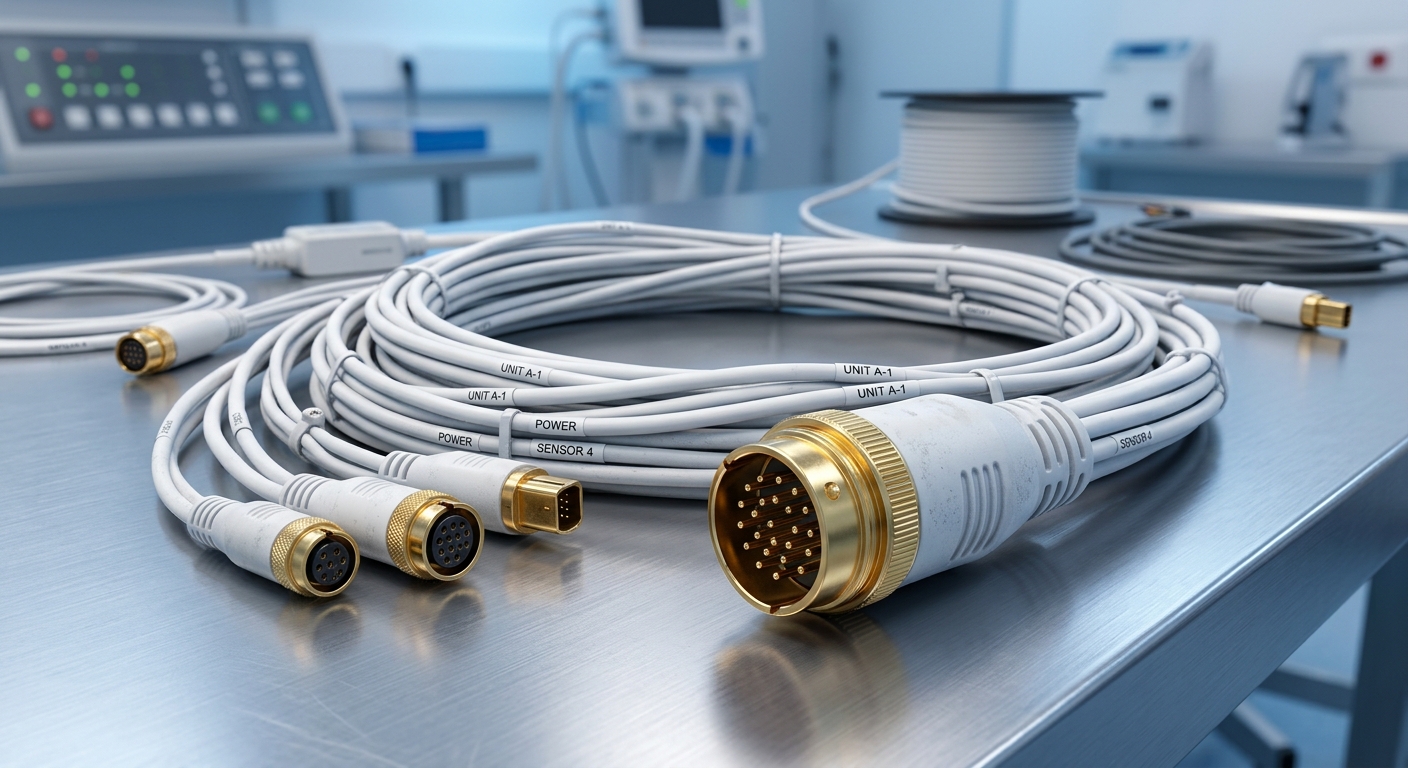

The working principle of medical therapy equipment internal wiring relies on superior conductivity combined with robust electromagnetic interference (EMI) and radio frequency interference (RFI) shielding. When a therapeutic device is activated, complex electrical signals are routed from the printed circuit boards (PCBs) through our meticulously engineered wire pathways. The internal shielding layers (such as tinned copper braiding and aluminum foil) act as a Faraday cage, preventing external hospital equipment from disrupting the signals, while simultaneously stopping the harness itself from emitting noise. This ensures pure signal integrity for precise therapeutic delivery.
Classifications and Application Scenarios
Depending on the specific requirements of the medical device, we categorize our wiring harnesses into several types, each tailored for distinct applications.
Classifications
- Power Distribution Harnesses: Built with large-gauge wires to handle high currents safely.
- Signal and Control Harnesses: Utilizing twisted pairs and multi-layer shielding for low-voltage, high-frequency data transmission.
- Hybrid Cable Assemblies: Integrating power, data, and even fluid/pneumatic tubes into a single, cohesive medical jacket.
Application Scenarios
Our hospital therapeutic apparatus wire harness solutions are engineered for a wide array of demanding environments:
- Radiation Therapy Machines (Linac): Requiring extreme radiation resistance and high-voltage stability.
- Surgical Laser Systems: Demanding high flexibility and heat-resistant jacketing.
- Dialysis Equipment: Where moisture resistance and biocompatibility are paramount.
- Rehabilitation Robotics: Requiring ultra-flexible cables capable of withstanding millions of bending cycles without fatigue.
Outstanding Features of Our Medical Grade Wiring
When sourcing medical grade treatment equipment wiring, ordinary commercial cables simply will not suffice. Our products are designed with the following distinct features:
- Exceptional Biocompatibility & Sterilization Resistance: Jackets are made from medical-grade Silicone, PTFE (Teflon), or TPE, allowing them to withstand repeated autoclave, EtO, or Gamma sterilization without degrading.
- Unmatched EMI/RFI Shielding: Multi-tiered shielding ensures compliance with IEC 60601-1-2 standards for medical electrical equipment.
- Extreme Flexibility & Durability: Engineered for high flex-life, ideal for articulated arms and movable therapeutic modules.
- Miniaturization: Compact designs that save valuable space within complex medical equipment enclosures without sacrificing performance.
Technical Specifications
As a premier custom medical cable manufacturer, we build every harness strictly according to your engineering drawings. Below is a reference table showcasing our general capabilities.
Wire Specifications
| Parameter | Specification Details |
|---|---|
| Wire Gauge (AWG) | 10 AWG to 32 AWG (Customizable based on power/signal needs) |
| Conductor Material | Bare Copper, Tinned Copper, Silver-Plated Copper |
| Insulation / Jacket Material | Medical-grade Silicone, PTFE (Teflon), FEP, TPE, TPU |
| Temperature Rating | -60°C to +250°C (Depending on selected material) |
| Voltage Rating | 30V / 300V / 600V / High Voltage (Up to 10kV+ for specialized uses) |
| Shielding Type | Aluminum Foil, Tinned Copper Braid, Spiral Shielding (Coverage >85%) |
| Sterilization Compatibility | Autoclave, Ethylene Oxide (EtO), Gamma Radiation, E-Beam |
Connector Specifications
| Parameter | Specification Details |
|---|---|
| Connector Brands | Molex, TE Connectivity, JST, Lemo, ODU, Amphenol, or Custom Tooling |
| Connector Type | Push-Pull circular, Board-to-Wire, Wire-to-Wire, D-Sub, Custom Overmolded |
| Contact Plating | Gold-plated (15μ" to 50μ"), Silver-plated for maximum conductivity |
| Ingress Protection (IP) | IP65, IP67, IP68 (Waterproof and dustproof options available) |
| Overmolding Material | Medical-grade PVC, TPU, Silicone (Provides superior strain relief) |
Your Trusted Partner: Why Choose Our Factory?
Designing and manufacturing life-saving equipment requires a supply chain partner you can trust. As a leading bulk medical wire harness supplier and expert in OEM medical internal wiring, we offer distinct advantages that align with your business goals:
- ISO 9001 & ISO 13485 Compliance: Our factory operates under strict quality management systems. Every single wiring harness undergoes 100% testing for continuity, short circuits, high voltage (Hipot), and structural integrity.
- True OEM/ODM Customization: We do not just build to print; we offer a one-stop solution. Our professional design team can collaborate with your R&D department from the prototyping stage to mass production, optimizing the design for manufacturability and cost-efficiency.
- Low Volume Production Supported: We understand that medical devices often require rigorous clinical trials before mass rollout. We proudly support small batch and low volume production to help you get your prototypes to market faster without the burden of massive Minimum Order Quantities (MOQs).
- End-to-End Solutions: From tooling and overmolding to final assembly, we manage the entire process in-house, ensuring complete control over quality and lead times.
Ready to upgrade your medical therapeutic equipment with world-class wiring solutions? Do not let subpar cabling compromise your cutting-edge medical devices. Contact our engineering team today to discuss your project requirements, request a free sample, or get a detailed quote.
