High-Performance Retractable Spring Cable Assembly: Complete Custom Solutions

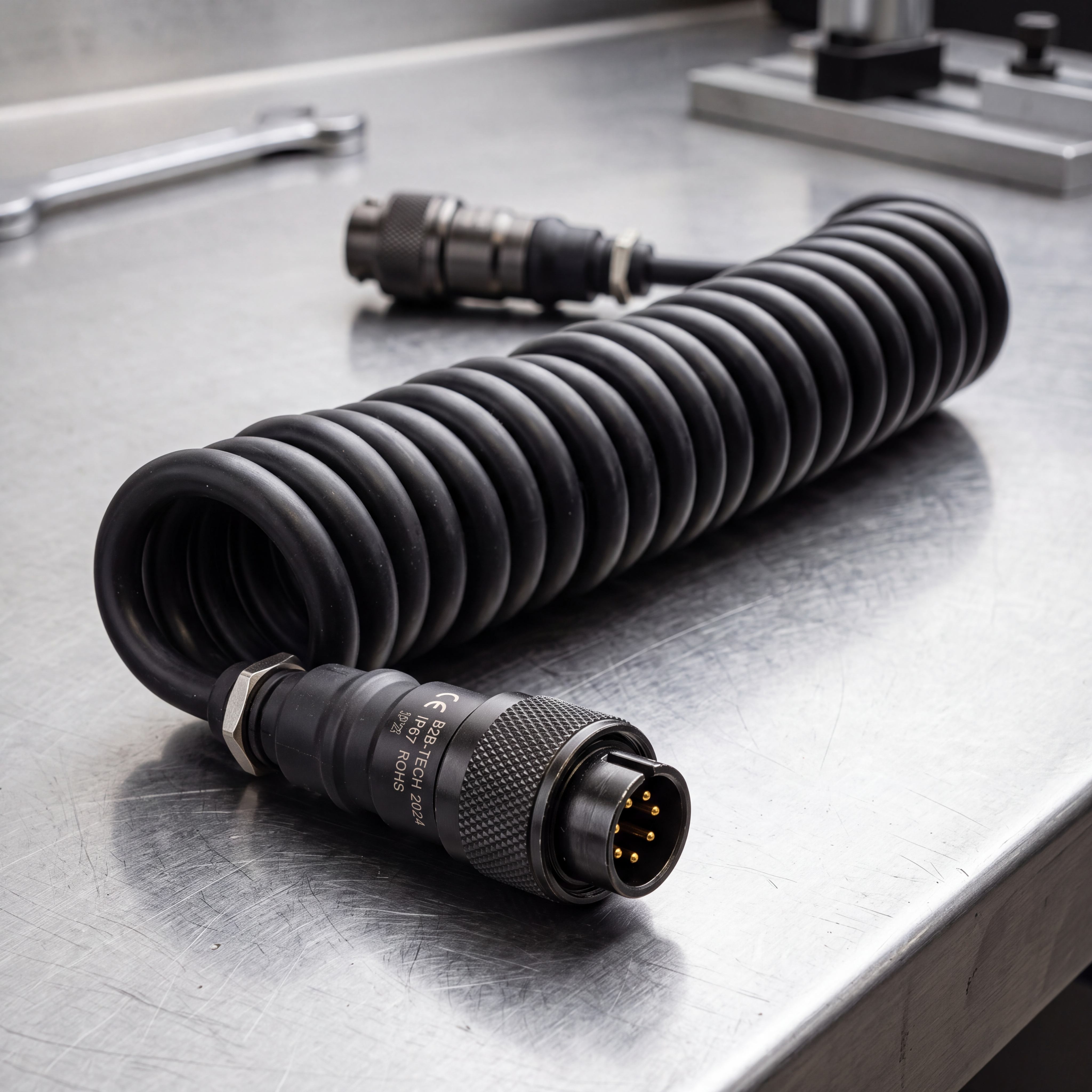

In the demanding environment of modern engineering, managing power and signal transmission across moving parts requires precision and durability. A retractable spring cable assembly is a high-performance integrated connection solution designed specifically for frequent dynamic stretching scenarios. It seamlessly integrates a precision elastic winding structure and highly flexible cables, ensuring the system can automatically rebound and reset to its original state once the pulling tension is released.
For B2B procurement managers and engineers, selecting the right connection solution minimizes downtime, prevents cable entanglement, and extends equipment lifespan.
Working Principle: The Engineering Behind the Coil
The reliability of a spring loaded retractable cable relies on its advanced material science and structural engineering. Unlike standard straight wires, these cables undergo a specialized thermo-mechanical curing process.
The highly flexible copper conductors are insulated and encased in an advanced polymer jacket with excellent memory-retention properties. When mechanical pulling force is applied, the helical coils uncoil to accommodate the required length, evenly distributing the mechanical stress across the entire span. Once the tension is removed, the inherent elastic memory of the jacket material forces the cable to autonomously contract back to its tightly coiled form. This continuous dynamic cycle prevents sagging, dragging, and physical wear against machinery.
Core Industry Applications
Our engineered solutions are categorized to meet the specific compliance and durability requirements of four major sectors:
1. Industrial Automation

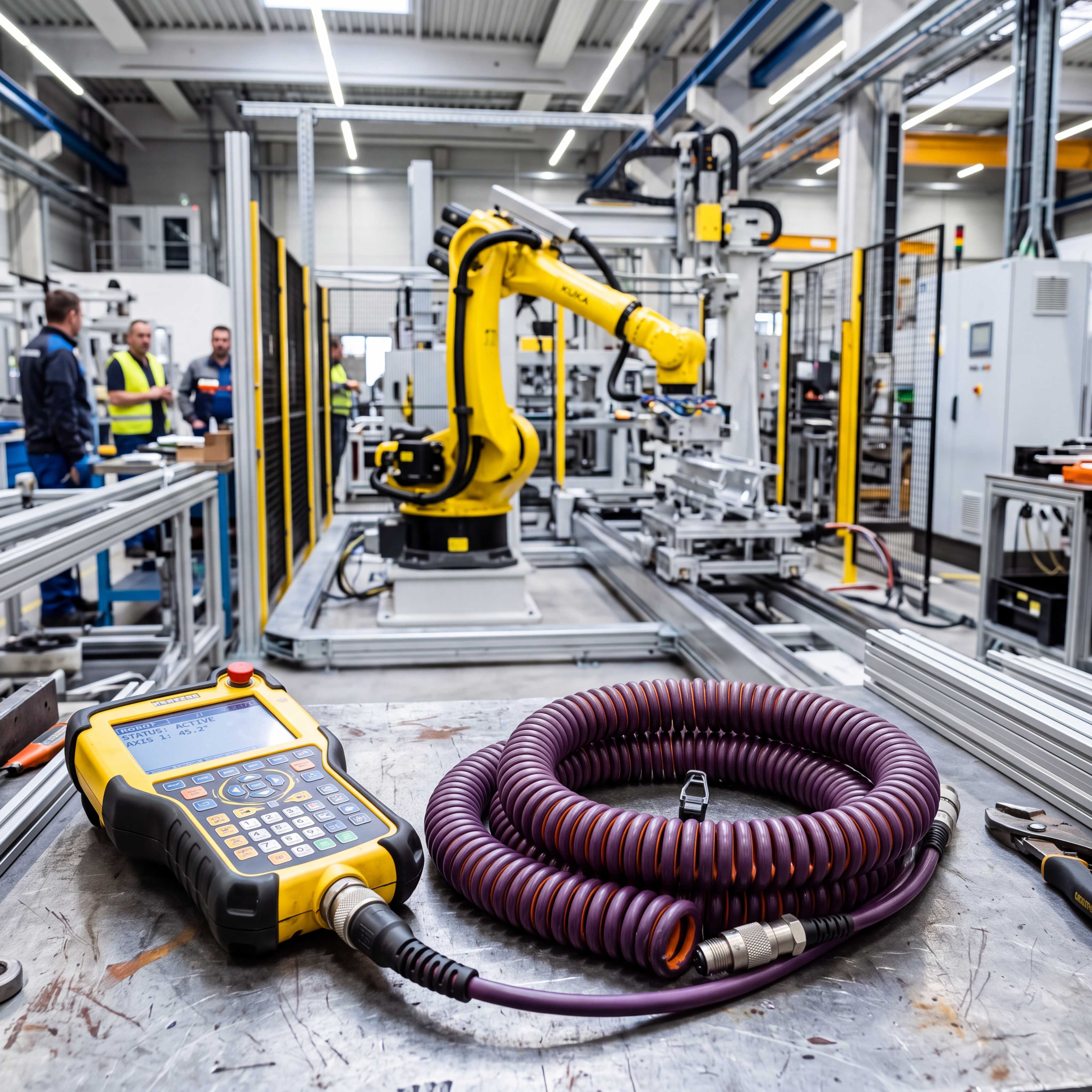

In automated manufacturing facilities, robotic equipment requires continuous communication and power without cable interference. A primary application is the retractable spring cable for robot teach pendant, utilized in robotic systems such as ABB, Yaskawa, and KUKA. These cables provide shielded, multi-core signal transmission, preventing data loss during high-frequency movements and ensuring operator safety on the factory floor.
2. Vehicles & Transportation
Commercial transport and specialized vehicles operate in harsh outdoor environments. A heavy duty retractable spring cable is essential for trailer-to-tractor electrical connections, EV charging stations, and commercial vehicle tailgates. These assemblies are engineered to withstand extreme temperatures, UV exposure, and exposure to automotive oils while maintaining their elastic integrity.
3. Medical & Instruments
Healthcare environments demand rigorous hygiene and fail-safe reliability. Retractable coiled cables are widely used in mobile medical carts, defibrillators, surgical robotics, and handheld diagnostic imaging devices. The cables feature biocompatible, easy-to-clean outer jackets that resist degradation from harsh medical-grade disinfectants.
4. Consumer & Security
In the retail and security sectors, retractable assemblies protect high-value assets and ensure continuous power. Applications include anti-theft tethers for electronics displays, access control systems, and automated point-of-sale (POS) terminals, providing a clean aesthetic and reliable mechanical retraction.
Technical Specifications: PUR Retractable Spring Cable Assembly
To meet rigorous industrial standards, our PUR retractable spring cable assembly features outstanding resistance to abrasion, hydrolysis, and microbial attack. Below are the standard technical specifications we offer:
| Specification Parameter | Technical Details |
|---|---|
| Conductor Material | Bare Copper / Tinned Copper (Stranded for ultra-flexibility) |
| Insulation Material | PVC / PE / TPE / FEP |
| Outer Jacket Material | Polyurethane (PUR) - Oil, UV, and Abrasion Resistant |
| Core Count Range | 1 to 40 Cores (Customizable for Power + Signal composite) |
| Extension Ratio | Up to 1:4 or 1:5 (Coiled length to extended length) |
| Retraction Lifespan | > 500,000 dynamic stretch and rebound cycles |
| Operating Temperature | -40°C to +90°C (Dynamic condition) |
| Voltage Rating | 300V / 500V / 600V (Depending on application) |
| Shielding | Tinned copper braid or Aluminum foil (EMI/RFI protection) |
Your Trusted Custom Retractable Spring Cable Assembly Manufacturer
Sourcing high-quality electrical components requires a manufacturing partner with proven technical capabilities and scalable production. As a leading custom Retractable spring cable assembly manufacturer, we bridge the gap between engineering design and mass production.
We are proud to be fully ISO9001 certified, ensuring that every cable assembly passes strict quality control protocols, including continuity, high-voltage, and dynamic flex testing.
Why Partner With Us?
- Support OEM/ODM: We build exact drop-in replacements or co-develop entirely new connection layouts based on your schematics.
- Small Batch Production Support: We understand that specialized R&D projects require flexibility. We accommodate low Minimum Order Quantities (MOQs) for prototyping and specialized equipment.
- Professional Design Team: Our engineers assist with conductor sizing, coil diameter calculation, and material selection to ensure optimal retraction force.
- Complete Solutions: From raw cable extrusion and coil curing to connector termination and overmolding, we handle the entire supply chain.
Ready to Upgrade Your Equipment Connections?
Do not compromise on the reliability of your dynamic machinery. Whether you require a heavy-duty solution for commercial transport or a highly specialized robotic communication tether, our engineering team is ready to deliver.
Contact us today to discuss your project requirements, request technical datasheets, or get a rapid quotation from a dedicated custom retractable spring cable assembly manufacturer. Let us build your next complete connection solution.
