Ultimate Guide to Camshaft Position Sensor Wire Harnesses: OEM & Custom Solutions

In the complex electronic control systems of modern vehicles, precision is everything. The camshaft position sensor wire harness is a critical component that acts as the communication bridge between the camshaft sensor and the Engine Control Unit (ECU). For automotive parts distributors, aftermarket repair providers, and automotive engineers, sourcing a reliable engine camshaft sensor wiring harness is essential to ensure optimal engine performance, prevent misfires, and maintain exact ignition timing.

As a professional custom wire harness manufacturer, we understand the stringent technical requirements of automotive wiring. This guide dives deep into the working principles, core configurations, and manufacturing standards of these vital components.

How Does a Cam Position Sensor Wiring Harness Work?

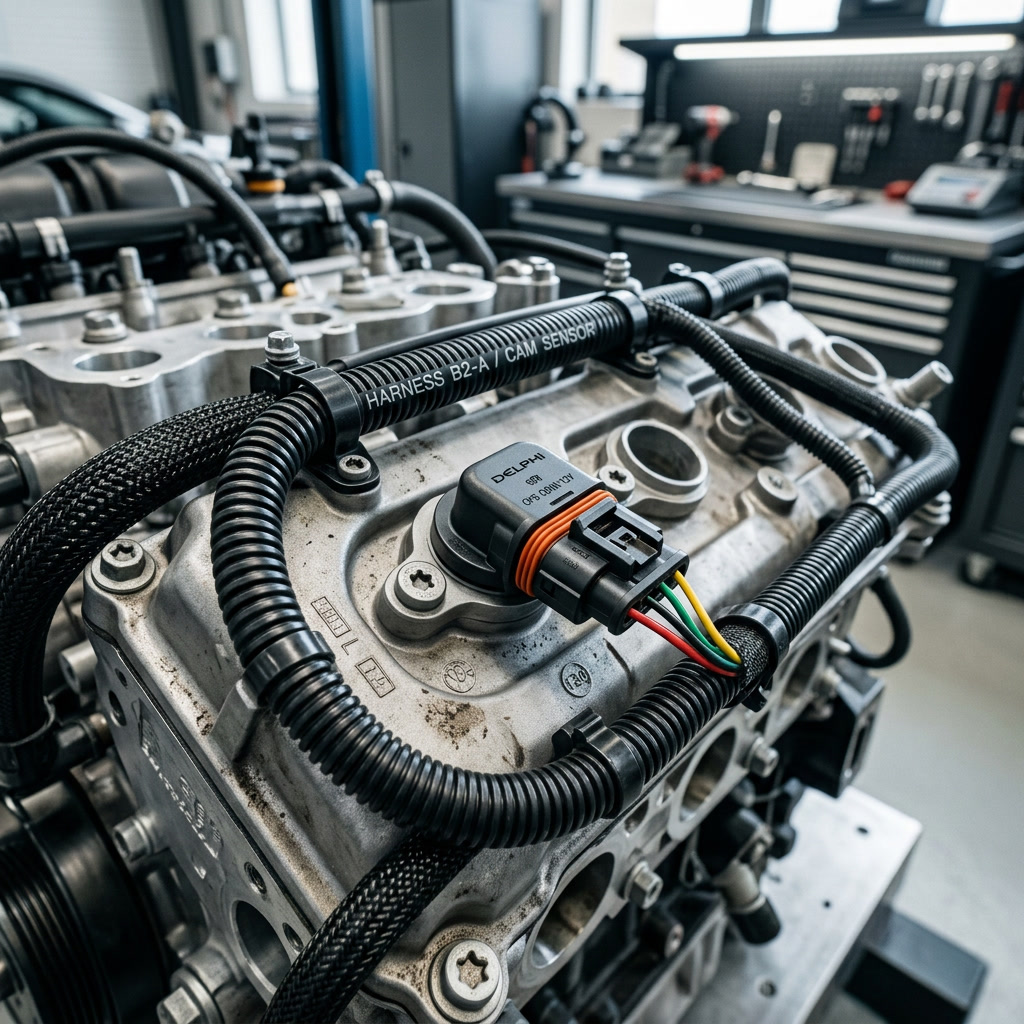

The primary function of a cam position sensor wiring harness is to deliver absolute electrical reliability. It connects the camshaft position sensor to the ECU, transmitting precise phase signals that indicate the exact rotational position of the camshaft.

When the engine runs, the sensor detects the position of the cylinders and generates a signal. The camshaft sensor wire harness acts as the high-speed transit route for this data. Based on these real-time phase signals, the ECU accurately dictates the fuel injection sequence and ignition timing. Without a flawless connection, the engine will experience rough idling, stalling, or failure to start. Our premium harnesses ensure zero signal loss, guaranteeing that the ECU receives uncorrupted data under extreme engine bay conditions.

Core Specifications and Configurations

Different vehicle makes and models require specific electrical architectures. Below are the primary configurations we manufacture for the global market.

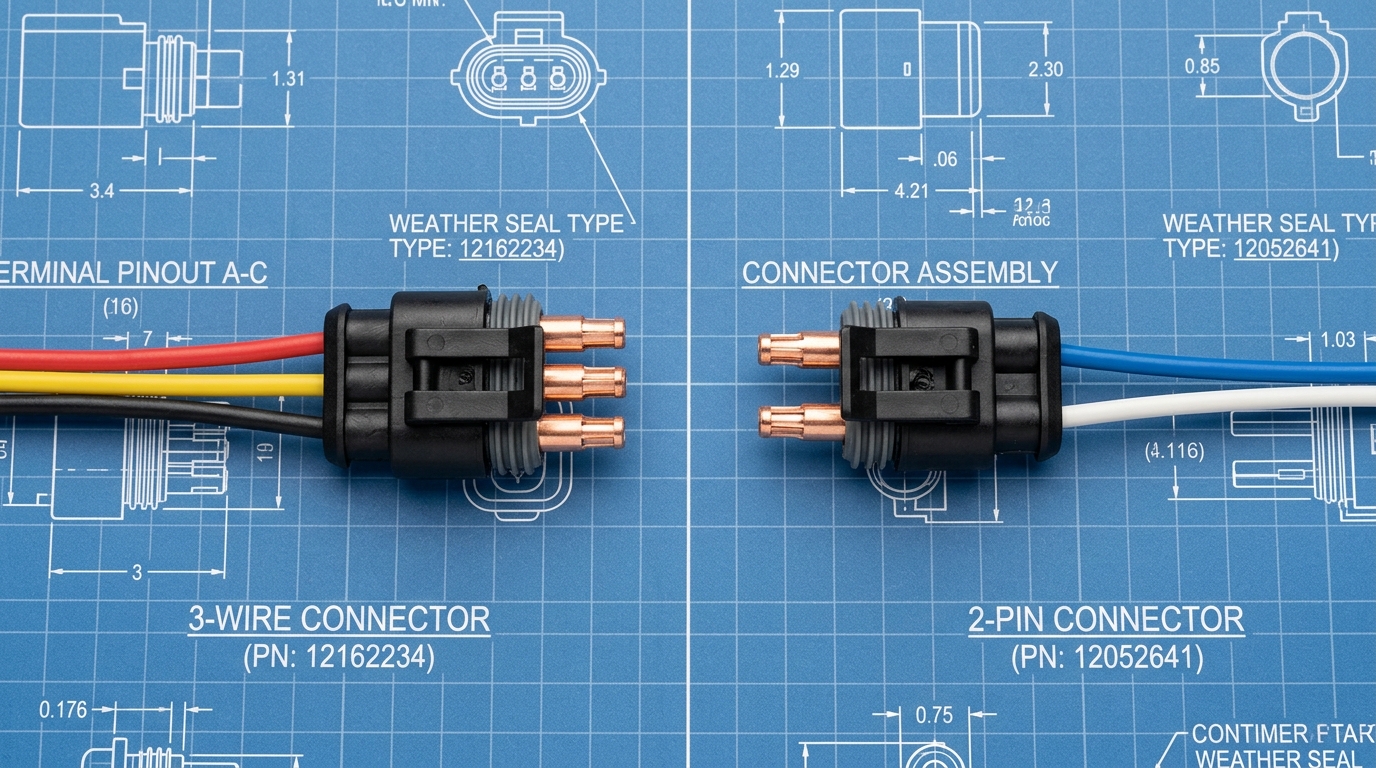

1. 3 Wire Camshaft Position Sensor Wiring Harness (Hall Effect)

The 3 wire camshaft position sensor wiring harness is the mainstream standard used in the vast majority of modern passenger vehicles equipped with Hall Effect sensors. The pinout configuration is precisely engineered to manage three specific functions:

• Pin 1 (Power): Delivers a stable 5V reference voltage from the ECU.
• Pin 2 (Ground): Provides a reliable chassis or ECU ground.
• Pin 3 (Signal Output): Transmits the square-wave digital phase signal back to the ECU. This configuration guarantees high accuracy, especially at low engine speeds, and requires high-quality shielding to prevent signal degradation.

2. 2 Pin Camshaft Position Sensor Connector Harness (Electromagnetic)

Commonly found in older vehicle models or heavy-duty applications, the 2-pin camshaft position sensor connector harness is designed for variable reluctance (magnetic pickup) sensors. Unlike the 3-wire setup, this system does not require an external power supply. It relies on the sensor's own electromagnetic induction to generate an AC voltage signal. The two wires serve strictly as the signal and ground/return lines.

3. Standard and Custom Interfaces

Whether for standard 3-pin waterproof connectors or highly specialized proprietary interfaces, exact pinout matching is non-negotiable. As a flexible custom wire harness manufacturer, we design harnesses that strictly adhere to original factory (OEM) plug definitions, ensuring a perfect "plug-and-play" fit for both assembly lines and aftermarket replacements.

Key Features and Application Scenarios

The engine bay is a harsh environment. An OEM automotive wiring solution must withstand extreme conditions without compromising electrical integrity.

• Extreme Heat and Oil Resistance: Manufactured with cross-linked polyethylene (XLPE) or Teflon (PTFE) wire insulation and housed in high-temperature corrugated tubing, our harnesses withstand engine heat, oil leaks, and chemical corrosion.
• EMI/RFI Shielding: To protect the delicate signals traveling through the camshaft position sensor wire harness, we utilize advanced twisted-pair construction and foil/braid shielding, eliminating electromagnetic interference from spark plug wires and alternators.
• Versatile Applications: Our products are widely used in OEM automotive manufacturing, the aftermarket auto parts sector for direct replacements, and even custom tuning where upgraded sensor wiring is required for high-performance engines.

Why Choose Us as Your Custom Wire Harness Manufacturer?

Finding a reliable supplier for wholesale automotive electrical components can be challenging. When you partner with us, you are collaborating with a true industry expert.

• ISO9001 Certified Supplier: Quality is engineered deeply into our DNA. Every engine camshaft sensor wiring harness undergoes rigorous electrical testing, including continuity, pull-force, and dielectric withstand tests, ensuring zero defect rates.
• OEM & ODM Solutions: Backed by an experienced professional design team, we provide comprehensive one-stop solutions. From reverse-engineering an existing cam position sensor wiring harness to developing an entirely new electrical architecture for your specific project, we have the technical bandwidth to support you.
• Low MOQ & Wholesale Flexibility: We understand the supply chain dynamics of B2B buyers. We proudly support small-batch production (Low MOQ) for custom projects while maintaining the capacity for high-volume wholesale manufacturing.

Ready to Upgrade Your Supply Chain?

If you are looking for a trusted, long-term partner for your automotive wiring needs, do not settle for subpar components. Whether you need a standard 3 wire camshaft position sensor wiring harness or fully customized OEM solutions, we are ready to deliver.

Contact our engineering and sales team today to request a quote, technical drawings, or a custom sample!
