The Evolution of AI Computing: Embracing the 800VDC Liquid Cooling Era

The unprecedented explosion of artificial intelligence has pushed data center computing power to extreme limits. As modern AI clusters transition to 570kW-level high-power AI cabinets, traditional air cooling and standard power delivery systems are no longer viable. Advanced liquid cooling technology has rapidly become the industry standard for sustaining optimal GPU performance and ensuring data center stability.

As a premier custom liquid cooling AI server power wiring harness manufacturer, we understand that the lifeline of these cutting-edge systems lies in safe, efficient, and continuous power delivery. Upgrading to an 800VDC architecture significantly reduces transmission losses, but it simultaneously imposes stringent demands on power cabling. From surviving direct contact with engineered fluids to handling massive current loads, a specialized liquid cooling AI server power harness is the critical bridge between grid power and AI computational output.

Classification of Liquid Cooling Power Wiring Assemblies

To meet diverse thermal management strategies, our custom power wiring assemblies are engineered into two primary classifications:

1. Cold Plate Cooling Power Harnesses: Designed for systems where only specific high-heat components (like GPUs and CPUs) are cooled via a liquid block. These cables emphasize maximum flexibility, tight routing in high-density 1U/2U chassis, and absolute leak-proof sealing at connector joints.
2. Immersion Cooling Power Harnesses: Engineered for single-phase and two-phase immersion tanks. A coolant immersion rated power wiring assembly must feature specialized insulation materials (such as modified fluoropolymers) that prevent chemical degradation, swelling, or plasticizer leaching when fully submerged in dielectric fluids (e.g., fluorinated liquids or synthetic oils).

Working Principle: Delivering High Current in Fluid Environments

The core working principle of a high current liquid cooling server power cable revolves around isolating massive electrical loads from thermal transfer fluids while minimizing resistance. Utilizing ultra-pure, oxygen-free copper conductors, the harness facilitates the rapid transmission of up to 800VDC direct current to the server motherboard and GPU accelerator baseboards.

Simultaneously, the meticulously designed outer sheath acts as an impenetrable barrier. Through advanced injection molding and ultrasonic welding technologies, the AI data center liquid tight power harness achieves absolute isolation. This ensures zero risk of electrical short circuits caused by fluid ingress and completely eradicates the capillary effect (where coolant travels inside the wire strands), guaranteeing long-term electrical integrity in ultra-high-density compute environments.

Core Specifications

Below are the standard technical specifications of our industry-leading power wiring solutions. Customization is strictly governed by precise engineering tolerances.

Unmatched Features for AI Data Centers

• Extreme Coolant Resistance: Our IP69K coolant resistant power harness is chemically inert to popular dielectric fluids, preventing sheath hardening, cracking, or signal degradation over years of submersion.

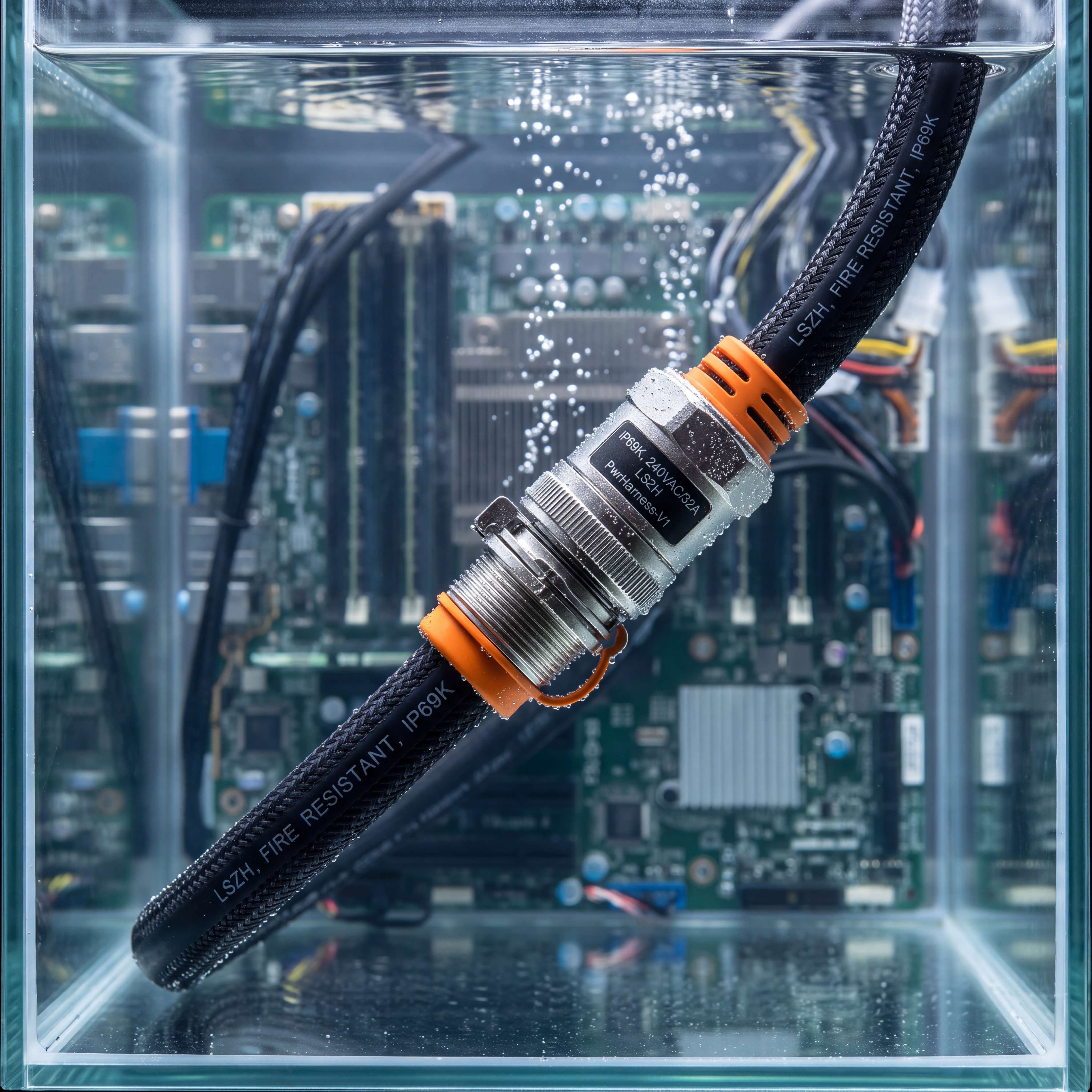

• High Voltage & High Current Density: The 800VDC liquid cooled GPU power cable minimizes voltage drop over distance, safely managing massive amperage spikes during intensive AI machine learning workloads.
• Enhanced Fire Safety: Utilizing an LSZH liquid cooling data center power wiring design, our harnesses emit zero toxic halogens and minimal smoke in the extreme event of combustion, protecting both human personnel and expensive server hardware.
• Anti-Capillary Sealing: Proprietary potting and sealing techniques completely block coolant from migrating up the wire strands.

Deep Dive: Application Scenarios

1. Cold Plate Liquid Cooling AI Cabinets

In modern 570kW high-density cabinets utilizing cold plate architecture, power distribution relies heavily on a 54V busbar system. Our harnesses flawlessly integrate with the 54V DC power shelf, routing power to individual AI nodes. The compact bending radius of the cables allows for optimal airflow and fluid tube routing, ensuring that high-density GPUs receive uninterrupted power without physical interference.

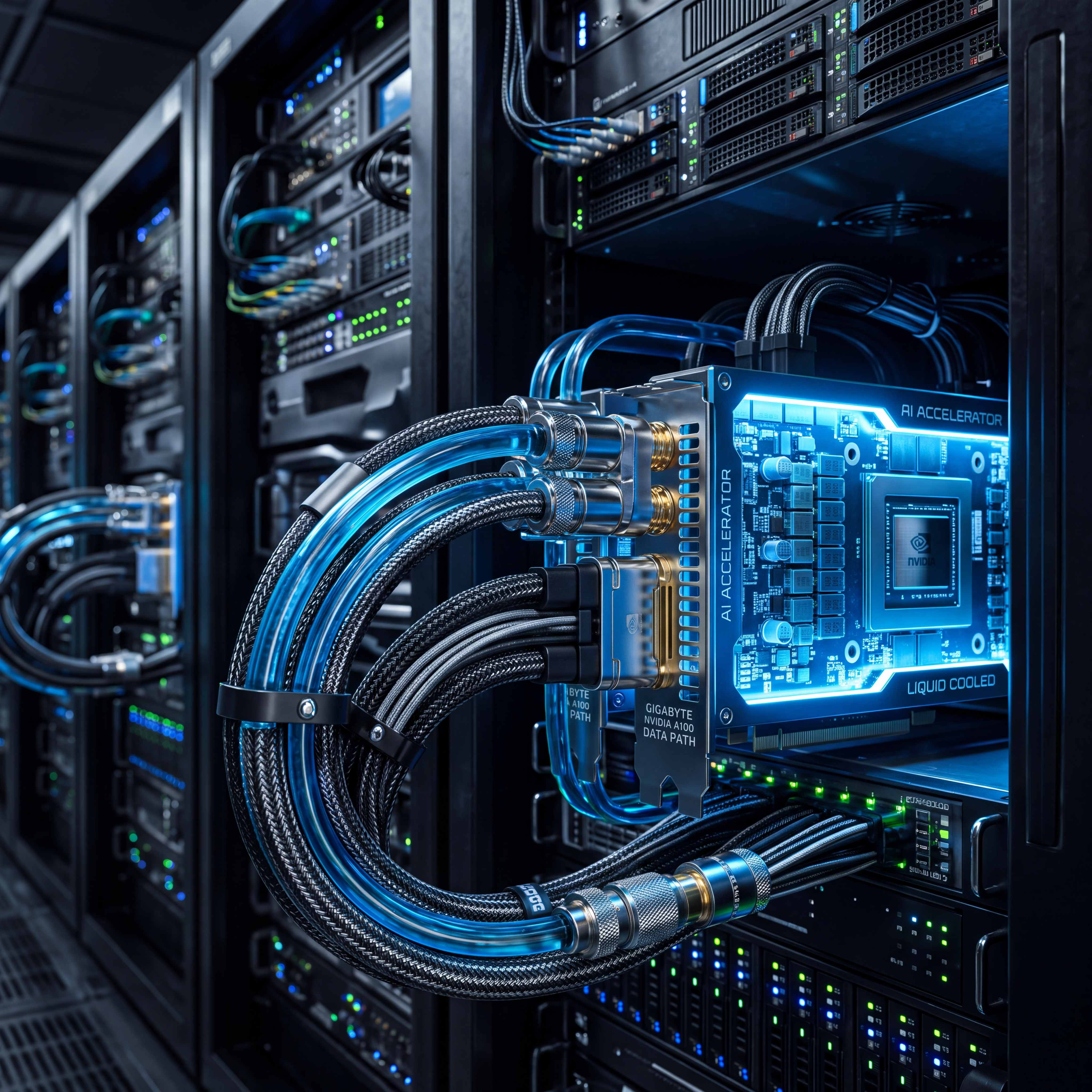

2. Immersion Cooling Server Infrastructure

For hyperscale AI data centers deploying immersion cooling tanks, an immersion cooling server power wiring assembly is mandatory. Our products are rigorously tested against highly aggressive two-phase fluorinated coolants. We eliminate standard PVC and plasticizers, utilizing aerospace-grade fluoropolymers that ensure zero chemical contamination of the costly dielectric fluid while maintaining continuous power delivery to submerged ASICs and GPUs.

3. Liquid Cooling Blind-Mate Matching Scenarios

To achieve rapid maintenance and hot-swapping in high-density AI clusters, blind-mate connections are revolutionary. Our harnesses strictly comply with UQDB (Universal Quick Disconnect Board) and BMQC (Blind-Mate Quick Connect) specifications. Supporting scalable power draw from 1600W to an astonishing 110KW, the connectors feature precise self-aligning mechanisms, ensuring seamless integration of power and liquid lines simultaneously without manual intervention.

Partner with a Trusted OEM/ODM Manufacturer

As a professional custom liquid cooling AI server power wiring harness manufacturer, we are dedicated to empowering global IT infrastructure architects and AI server R&D engineers. Navigating the complexities of liquid-cooled power architectures requires a partner with deep technical expertise and uncompromising quality control.

• Certified Excellence: Fully ISO9001 and IATF16949 certified manufacturing facilities.
• Custom Solutions (OEM/ODM): From prototype to mass production, our professional design team works directly with your engineering department to map out specific cable routing, terminal types, and material compliances.
• Flexible Supply Chain: We proudly support a Low MOQ (Minimum Order Quantity) for specialized R&D AI projects, scaling up effortlessly for hyperscale data center deployments.

Don't let subpar wiring throttle your AI computing potential. Upgrade your infrastructure with our industry-leading liquid cooling AI server power harness solutions.

Call to Action (CTA): Ready to optimize your high-density liquid-cooled servers? Contact our engineering team today for a free technical consultation, custom CAD designs, and precise product quotations. Let us power the future of your AI data center safely and efficiently.
