The Ultimate Guide to Industrial Heat Tracing Cables: Advanced Solutions for Freeze Protection and Process Maintenance
As global industries face increasingly extreme weather conditions and stringent energy-efficiency standards, maintaining optimal fluid temperatures in pipelines and vessels has never been more critical. An electric heat trace cable serves as the most reliable and highly efficient method to compensate for heat loss, ensuring continuous operations in harsh environments.
Today, modern industrial facilities are rapidly shifting away from traditional steam tracing. Driven by the need for superior energy efficiency, reduced carbon footprints, and precise temperature control, an advanced industrial heat tracing cable system has become the mainstream, energy-saving alternative for modern engineering projects.
How Does a Heat Trace Cable Work? Features and Core Applications

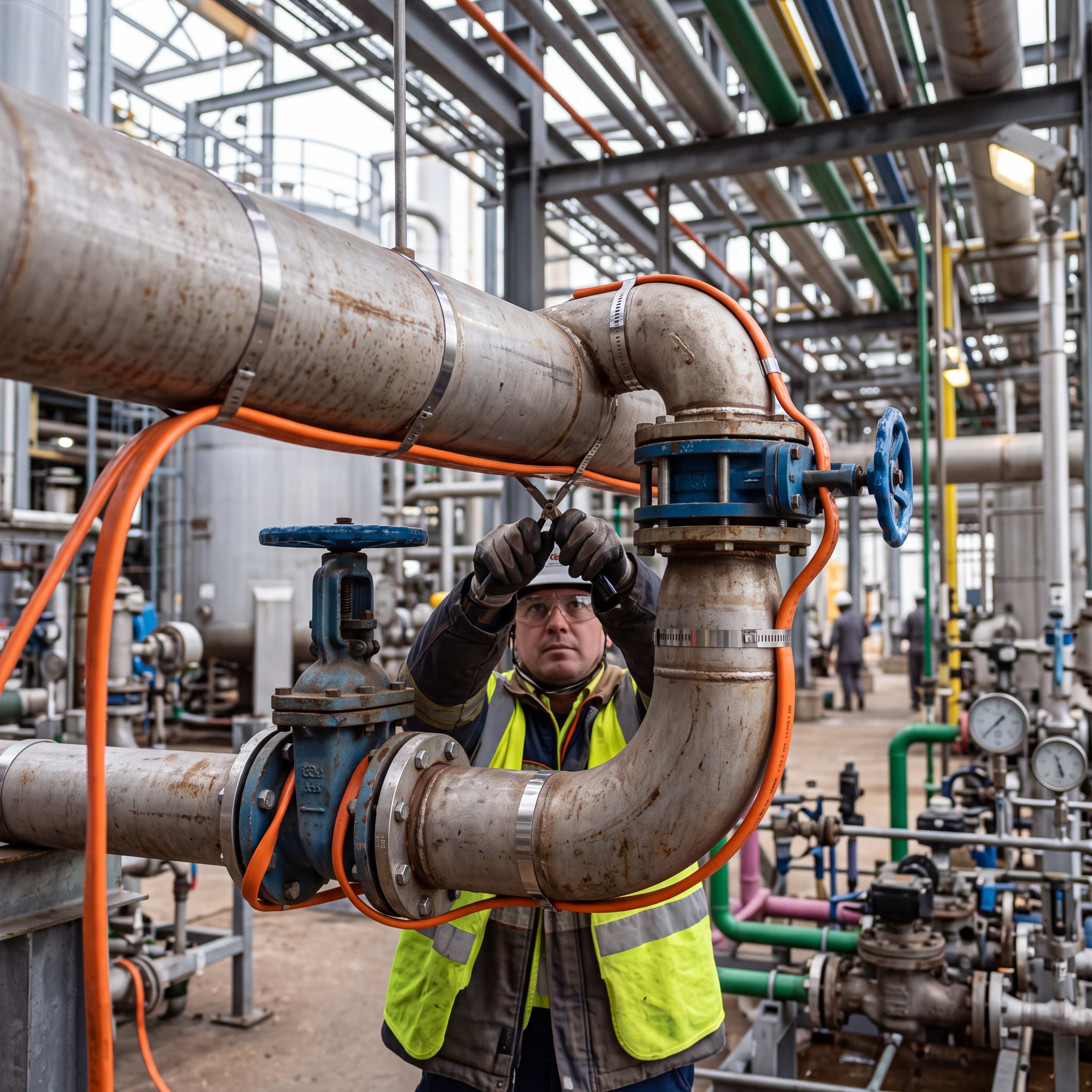

At its core, a heat trace cable operates by converting electrical energy into controlled thermal energy. By physically attaching the cable to the surface of pipes, tanks, or instrumentation, it continuously offsets the heat loss into the surrounding environment.
Key Features of Electric Heat Tracing
- Energy Efficiency: Delivers heat exactly where and when it is needed, eliminating the massive energy waste associated with boiler-driven steam tracing.
- Precise Temperature Control: Prevents fluid degradation, crystallization, or freezing in critical infrastructure.
- Low Maintenance: Electric tracing systems require a fraction of the maintenance compared to complex steam traps and mechanical piping.
Typical Industrial Applications
Whether you are winterizing a facility or maintaining critical chemical process temperatures, electric tracing is ubiquitous. The most common applications include:
- Pipe heat trace cable systems for crude oil transportation.
- Freeze protection heat trace cable networks for water lines and fire protection systems in sub-zero climates.
- Temperature maintenance for chemical manufacturing and food processing plants.
Types of Heat Trace Cables: Selecting the Right Solution
Understanding the specific technical parameters of different heating cables is crucial for B2B procurement and engineering design. Below is a comprehensive breakdown of the four main types of cables.

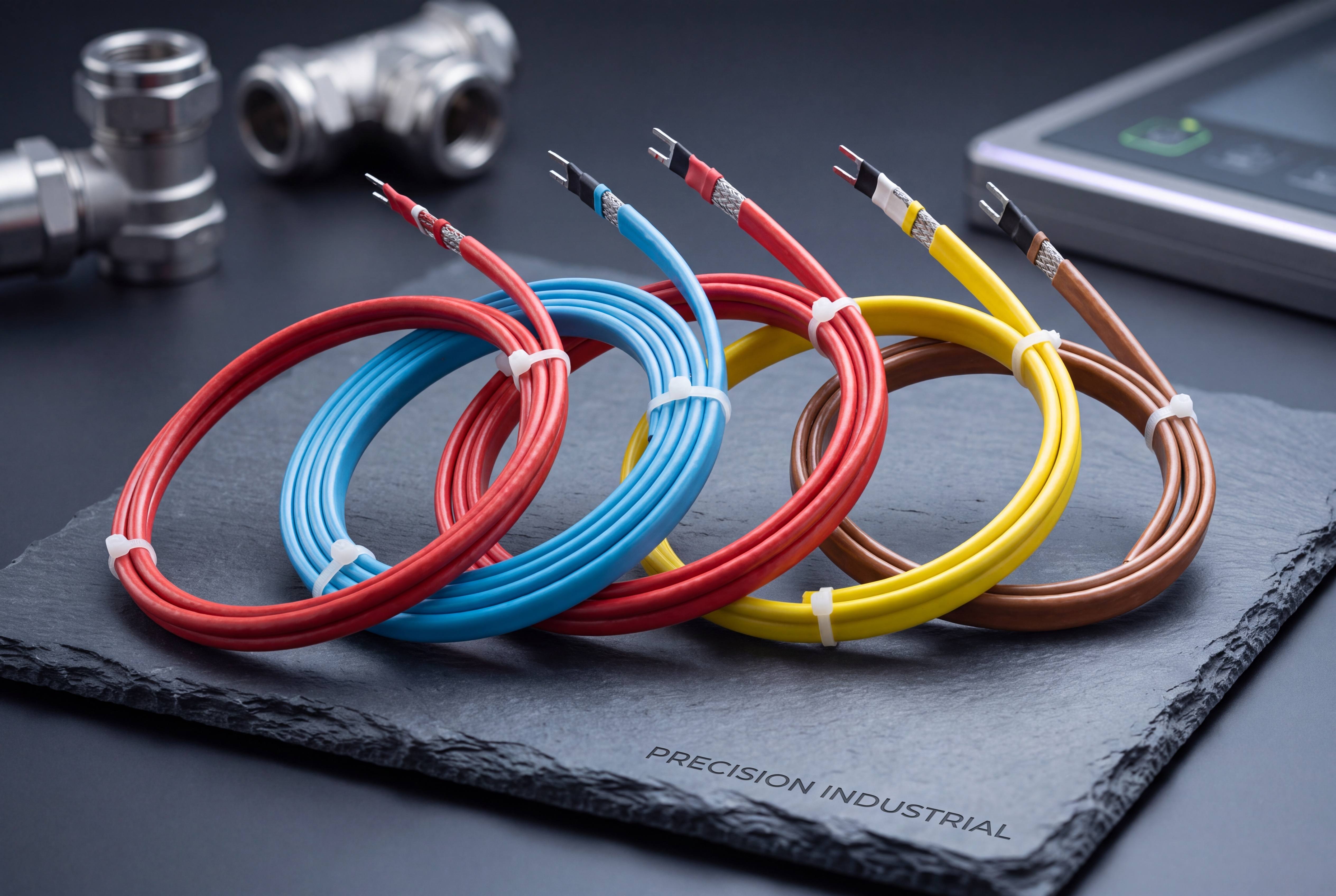

1. Self-Regulating Heat Trace Cable
The self-regulating heat trace cable is the most popular choice for general industrial and civil freeze protection applications.

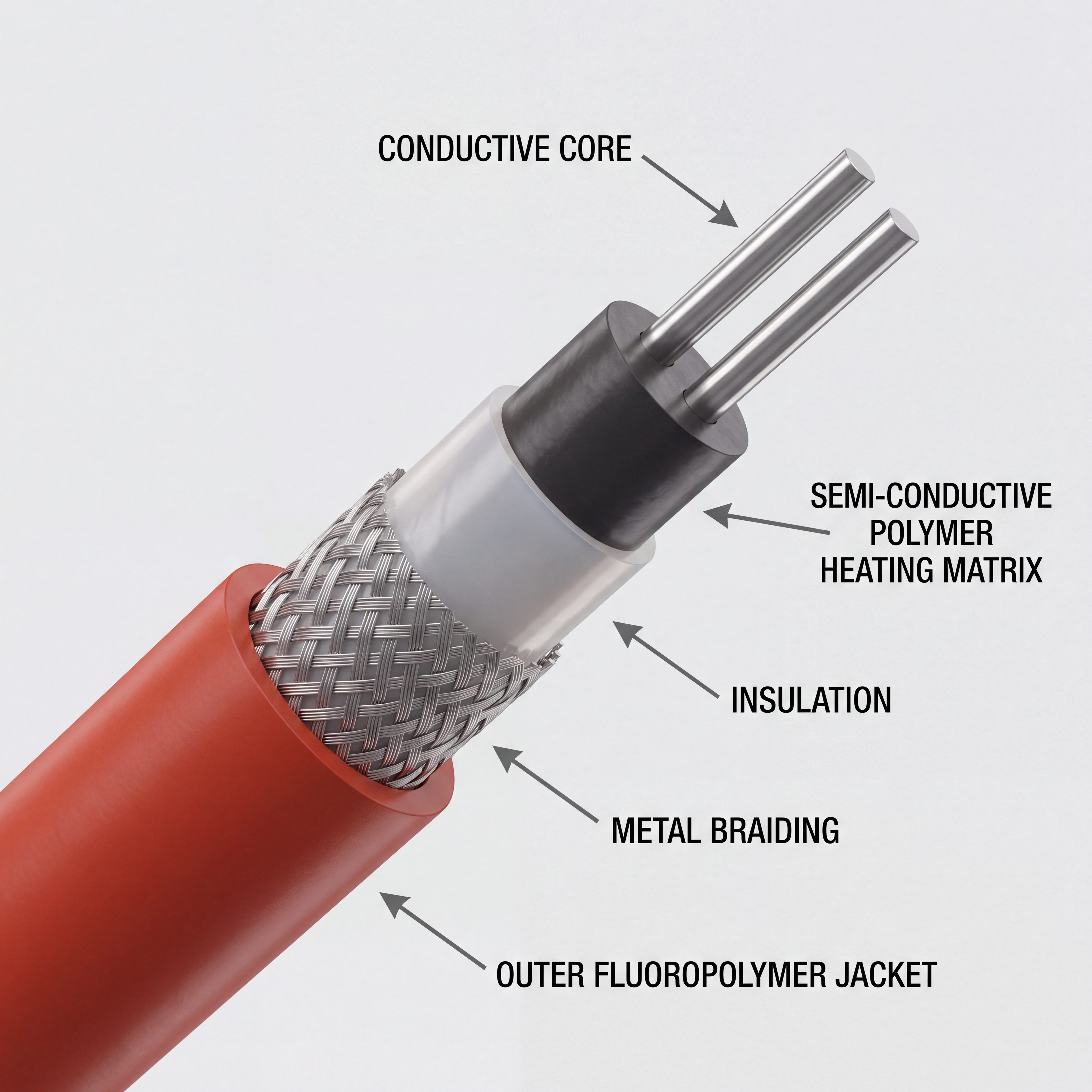

- Working Principle: Utilizing an advanced semiconductor PTC (Positive Temperature Coefficient) polymer core, this cable automatically adjusts its power output in response to ambient temperature changes. As the temperature drops, the power increases; as it rises, power decreases.
- Key Advantages: It can be cut to any length on-site without altering its performance, eliminating the risk of overheating or burnout even if the cables overlap.
- Technical Limits: Offers a maximum withstand temperature of up to 250℃ and supports a maximum single circuit length of several hundred meters.
2. Constant Wattage Heat Trace Cable
For medium-to-high temperature process lines requiring strict, unwavering temperature maintenance, the constant wattage heat trace cable is the optimal choice.
- Working Principle: It provides a constant power output per unit length regardless of ambient temperature changes. Because it lacks auto-adjusting capabilities, it must be paired with an industrial thermostat.
- Key Advantages: Delivers a stable and predictable heat output. Like self-regulating cables, parallel constant wattage cables can also be cut to length on-site.
- Technical Limits: Designed for rigorous industrial environments, it features a maximum withstand temperature of 500℃.
3. MI Mineral Insulated Heat Trace Cable
When dealing with extreme temperatures and hazardous locations, the MI mineral insulated heat trace cable is unmatched.
- Working Principle: Constructed with a highly durable metal sheath (such as stainless steel or Alloy 825) and highly compacted magnesium oxide (MgO) insulation.
- Key Advantages: It is completely non-combustible, exceptionally rugged, and provides top-tier explosion-proof and mechanical impact resistance.
- Technical Limits: Capable of enduring a staggering maximum withstand temperature of 900℃. It is exclusively reserved for high-risk, high-temperature sectors such as oil & gas, petrochemical refineries, and power generation. (Note: Not suitable for standard civil applications).
4. Longline Series Heat Trace Cable
Traditional cables face voltage drop issues over extremely long distances. The Longline series heat trace cable is specifically engineered to solve this.
- Working Principle: Operating as a series-resistance heating cable, it is powered from a single power supply point.
- Key Advantages: Eliminates along-line voltage drops across vast distances.
- Technical Limits: A single power circuit can cover an extraordinary distance of up to 50km, making it the absolute standard for long-distance subsea or cross-country pipeline winterization.
Technical Specifications Comparison Table
To assist project managers and procurement engineers, here is a quick-reference parameter table detailing the structural and operational limits of our heat trace cables:
| Cable Type | Max Withstand Temp | Cut-to-Length | Max Circuit Length | Core Technology / Material | Best Fit Application |
|---|---|---|---|---|---|
| Self-Regulating | 250℃ | Yes (On-site) | ~100 to 200+ meters | PTC Semiconductor Polymer | General industry, Freeze protection |
| Constant Wattage | 500℃ | Yes (On-site) | ~200 to 300+ meters | Resistance Wire (Parallel) | Mid-high temp process maintenance |
| MI Cable | 900℃ | No (Factory built) | Varies by design | Metal Sheath + MgO Insulation | Oil & Gas, High-risk/High-temp |
| Longline Series | Up to 250℃+ | No (Factory built) | Up to 50km | Series Resistance | Long-distance pipelines |
Why Choose Us? Your Trusted Custom Heat Trace Cable Manufacturer
Sourcing high-quality heating cables requires a supplier with deep engineering expertise and proven manufacturing capabilities. As a premier source factory and custom heat trace cable manufacturer, we bypass middlemen to deliver unparalleled value and technical support directly to global B2B buyers.
- Stringent Quality Control: Our production facilities have strictly passed ISO9001 quality management system certifications, ensuring every meter of cable meets international safety and performance standards.
- Flexible Manufacturing: We comprehensively support customization to match your exact pipeline specifications. We proudly offer full OEM and ODM services and even support small batch production to help you test and validate your engineering designs without massive upfront commitments.
- Expert Engineering: Our professional design team doesn't just sell cables; we provide complete heat trace cable solutions, including thermal calculations, accessory selection, and system design tailored to your specific industrial pain points.
Ready to upgrade your thermal management system? Don't let extreme weather or temperature drops halt your production. Contact our engineering team today to discuss your project requirements, request technical datasheets, or get a competitive wholesale quote!
