The Ultimate Guide to Heat Trace Wire: Principles, Types, and Industrial Applications
Introduction: The Challenge of Temperature Maintenance
Whether facing the brutal freezing temperatures of harsh winters or managing the delicate viscosity requirements of industrial fluids, temperature control is a critical factor in global engineering and manufacturing. Frozen pipes can lead to catastrophic bursts, costly downtime, and severe safety hazards. To combat these challenges, a highly efficient thermal solution is required.
Enter the heat trace wire—a highly engineered electrical heating element designed specifically to maintain temperatures and prevent freezing across various applications. From heavy industrial pipelines to residential roofing, utilizing a high-quality electric heat tracing cable is the most reliable way to ensure your fluid systems remain operational year-round. For homeowners and commercial facilities, it is often simply referred to as heat tape for pipes, but the underlying technology remains a marvel of modern thermodynamics.
How It Works: The Core Principle of Electric Heat Tracing
The working principle of a heat trace cable is fundamentally based on Joule heating, transforming electrical energy directly into thermal energy. When installed along a pipeline or vessel, the cable emits a calculated amount of heat to exactly compensate for the heat loss transmitted through the thermal insulation to the ambient environment.
Rather than heating the fluid from a cold state, the primary goal of a pipe freeze protection heat cable is to maintain the existing temperature, counteracting the natural laws of thermodynamics. By maintaining a delicate thermal balance, these cables prevent fluids from solidifying, ensure heavy oils maintain their flowability, and protect sensitive water lines from bursting in sub-zero environments.
Comprehensive Classification of Heat Trace Cables
Depending on the specific industrial environment, temperature requirements, and length of the pipeline, heat trace cables are engineered into several distinct categories. Understanding these variations is crucial for engineers and procurement managers.

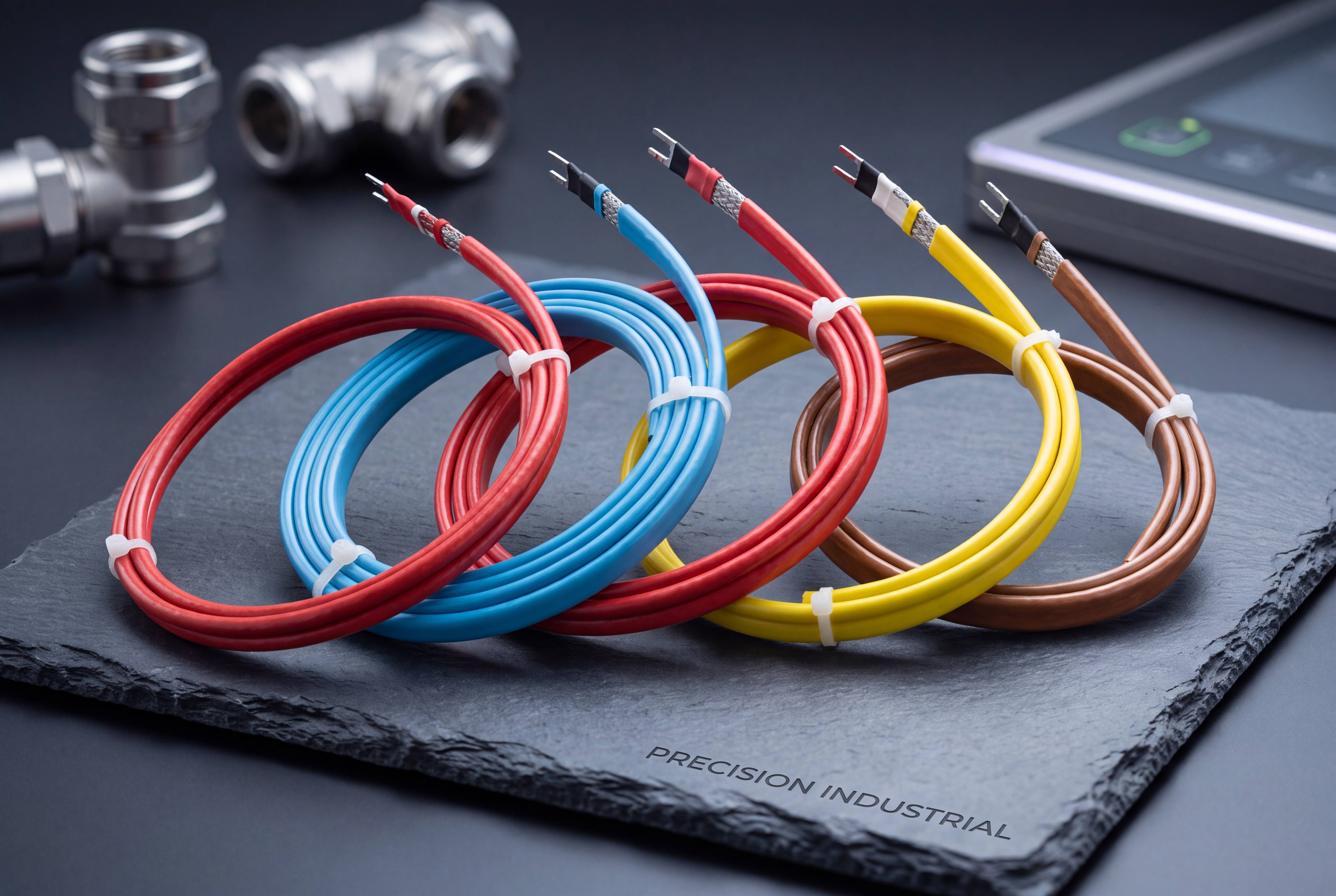

1. Self Regulating Heat Trace Wire

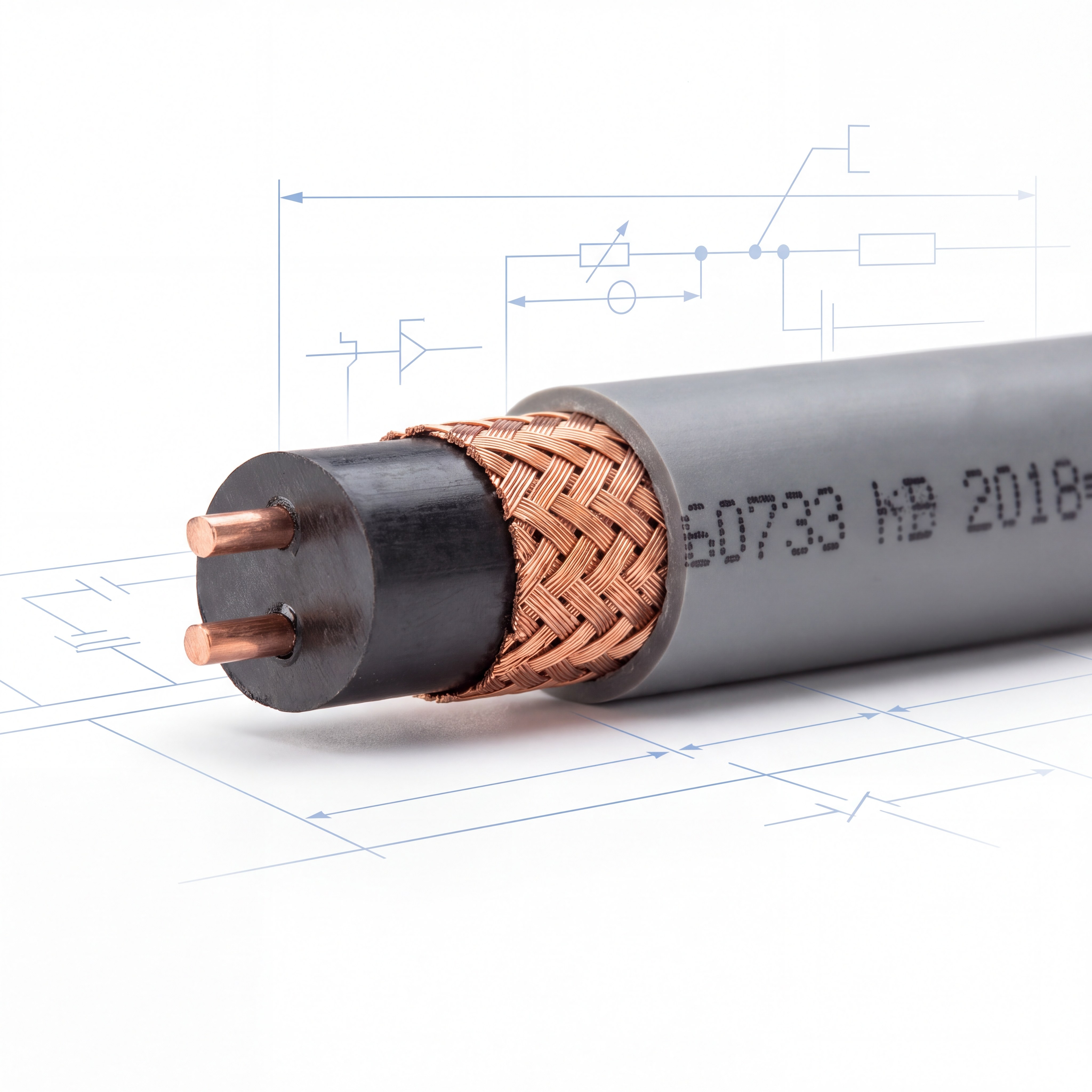

The self regulating heat trace wire is the most versatile and widely used type in the industry. Its core consists of a conductive polymer that automatically adjusts its heat output based on the ambient temperature. As the environment gets colder, the core contracts microscopically, creating more electrical paths and generating more heat. Conversely, as it warms up, the core expands, reducing heat output. This intelligent self-regulation prevents overheating, saves energy, and allows the cable to be overlapped safely.
2. Constant Wattage Heat Trace Cable
Designed for long-distance piping systems and processes requiring precise, high-temperature maintenance, the constant wattage heat trace cable delivers a consistent and continuous power output regardless of the ambient temperature. Because the heat output does not diminish at higher temperatures, it is highly favored in chemical processing and oil refineries. However, it requires a precision thermostat controller and cannot be overlapped, as this could cause localized overheating.
3. MI Mineral Insulated Heat Trace Cable
For extreme high-temperature applications where standard polymer cables would melt, the MI heat trace cable (Mineral Insulated) is the ultimate solution. Featuring a metal conductor surrounded by magnesium oxide insulation and encased in a robust metallic sheath (such as stainless steel or Alloy 825), this cable can withstand exceptionally high exposure temperatures, making it indispensable in heavy industrial plants and power generation facilities.
4. Special Customized Cables
Every project has unique pain points. For hazardous areas involving combustible gases or dust, an explosion proof heat tracing cable is rigorously engineered with specialized outer jackets and grounding braids to meet stringent ATEX or IECEx standards. We also offer specialized anti-corrosion fluoropolymer jackets for highly acidic chemical plants.
Specifications and Performance Comparison
Below is a technical comparison of the different types of heat tracing cables to help you specify the right product for your project:
| Product Category | Max Exposure Temperature | Power Output Characteristics | Primary Applications |
|---|---|---|---|
| Self Regulating | Up to 110°C (230°F) | Variable (Adjusts to ambient) | Water pipes, roof de-icing, commercial freeze protection |
| Constant Wattage | Up to 260°C (500°F) | Constant (Uniform output) | Long industrial pipelines, consistent fluid viscosity control |
| MI (Mineral Insulated) | Up to 600°C (1112°F) | Constant (High power) | Extreme high-temp processes, molten salt, heavy bitumen |
| Special Customized | Customized (e.g., 200°C+) | Customized / Application Specific | Hazardous locations, chemical plants (Explosion Proof) |
Key Features and Industrial Applications
The versatility of modern electric heat tracing technology allows it to solve thermal challenges across a wide array of industries.
Commercial and Residential Buildings In the commercial sector, managing winter weather is a priority. Utilizing heat tape for pipes is the most effective strategy for preventing water supply lines, fire sprinkler systems, and drainage pipes from freezing. Additionally, roof and gutter de-icing systems utilize self-regulating cables to prevent the formation of destructive ice dams.

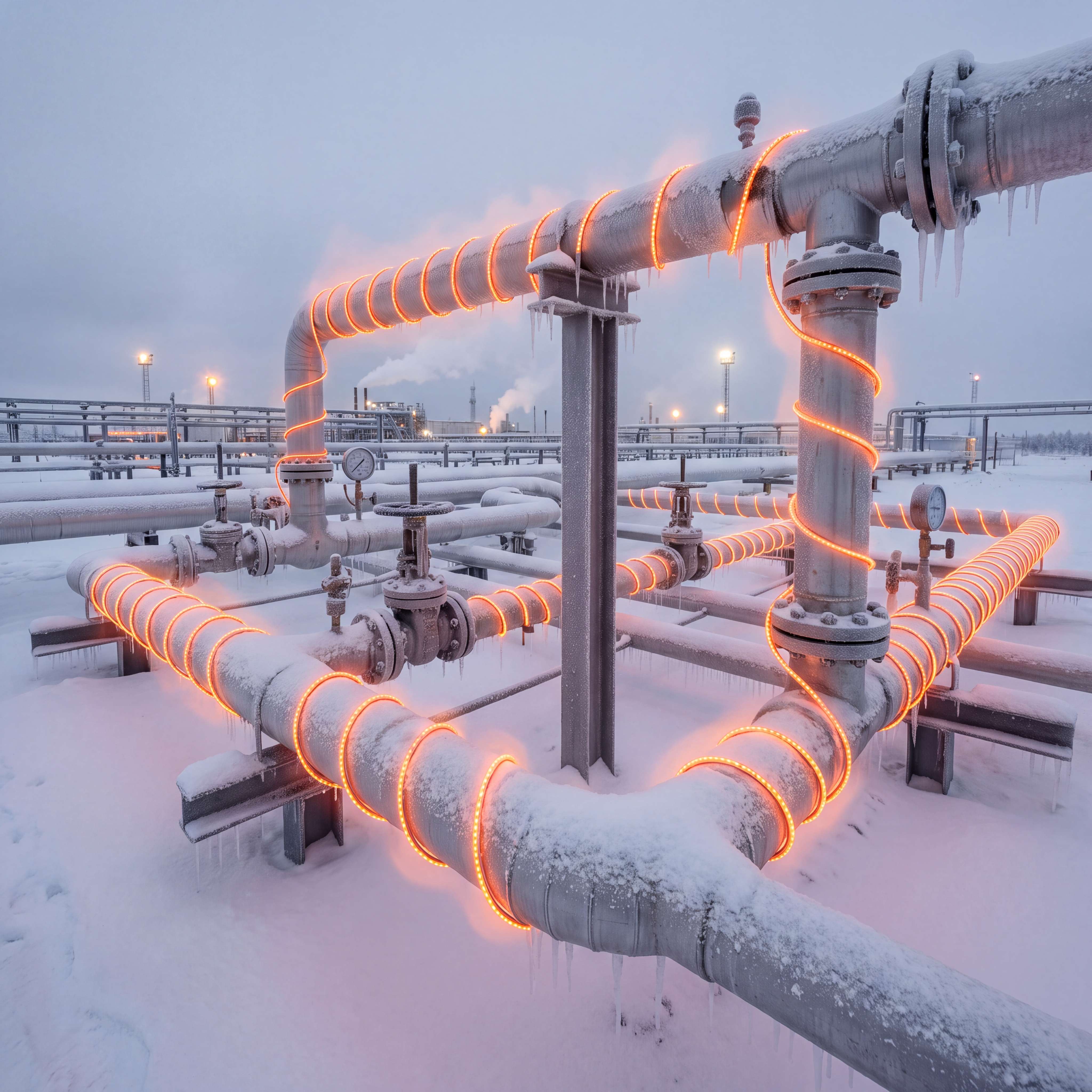

Industrial and Petrochemical Pipelines In the oil and gas sector, maintaining the viscosity of heavy crude oil is paramount. If the temperature drops, the oil thickens, heavily straining pumping equipment and potentially halting production. Here, constant wattage and MI cables are deployed. Furthermore, any electrical equipment in these sectors must be intrinsically safe, which is why the explosion proof heat tracing cable is absolutely mandatory in these hazardous zones.
New Energy and Green Technologies The rapidly expanding new energy sector also relies on heat trace technology. Solar water heating setups, wind turbine blade de-icing systems, and battery thermal management in cold climates utilize precision heating cables to maintain optimal operating efficiency and ensure stable power generation in freezing conditions.
Partner with a Premier Custom Heat Trace Wire Manufacturer
When the integrity of your infrastructure is on the line, choosing the right source factory is just as important as choosing the right cable. As a leading custom heat trace wire manufacturer, we are dedicated to providing world-class thermal solutions tailored precisely to your project's technical requirements.
Why partner with us?
- Certified Quality Assurance: Our entire manufacturing process operates under strict ISO9001 certification. Every meter of cable undergoes rigorous high-voltage and thermal aging tests before leaving our facility, ensuring uncompromised safety and longevity.
- Comprehensive OEM/ODM Services: We don't just sell off-the-shelf products. We provide full-scale OEM and ODM services. Whether you need specific voltage ratings, custom jacket colors with your brand logo, or specialized power outputs, we can manufacture it.
- Small Batch Production Supported: We understand that specialized engineering projects may not require massive quantities initially. We proudly support small batch production with low Minimum Order Quantities (MOQ), empowering your R&D and pilot projects without tying up your cash flow.
- Professional Design Team: Heat tracing is highly technical. Our in-house team of thermal engineers offers a true one-stop heat tracing solution. From calculating heat loss and selecting the perfect cable type to designing the control panel and providing installation schematics, we support you from concept to commissioning.
Ready to protect your pipelines and optimize your thermal systems? Don't let winter weather or complex industrial viscosity issues slow down your operations. Partner with a source factory that understands your technical needs. Contact our engineering team today for a customized quote, technical consultations, or to request a product sample. Let us build the perfect heating solution for your business!
