Ultimate Guide to Pipe Tracer Wire: Preventing Underground Utility Damage

Modern underground infrastructure relies heavily on advanced synthetic materials. Water mains, sewer systems, and gas distribution networks are increasingly built using Polyvinyl Chloride (PVC) and High-Density Polyethylene (HDPE). While these materials offer exceptional durability, flexibility, and corrosion resistance, they introduce a critical challenge: they are invisible to standard electromagnetic utility locators.

When construction teams and municipal contractors excavate without accurate utility mapping, the results can be catastrophic. Accidental line strikes—commonly known as "dig-ins"—lead to millions of dollars in repair costs, project delays, service outages, and severe safety hazards for on-site personnel.

The industry standard solution to this blind spot is the installation of high-quality pipe tracer wire. Laid alongside PVC and HDPE lines during installation, a reliable plastic pipe tracer wire provides a continuous, detectable signal path, ensuring that underground assets can be precisely located years, or even decades, after they are buried.

How Does Buried Pipe Tracer Wire Work?

The working principle of a buried pipe tracer wire is based on electromagnetic induction. Because the plastic or non-metallic pipe itself cannot conduct an electrical current, the tracer wire acts as the conductive substitute.

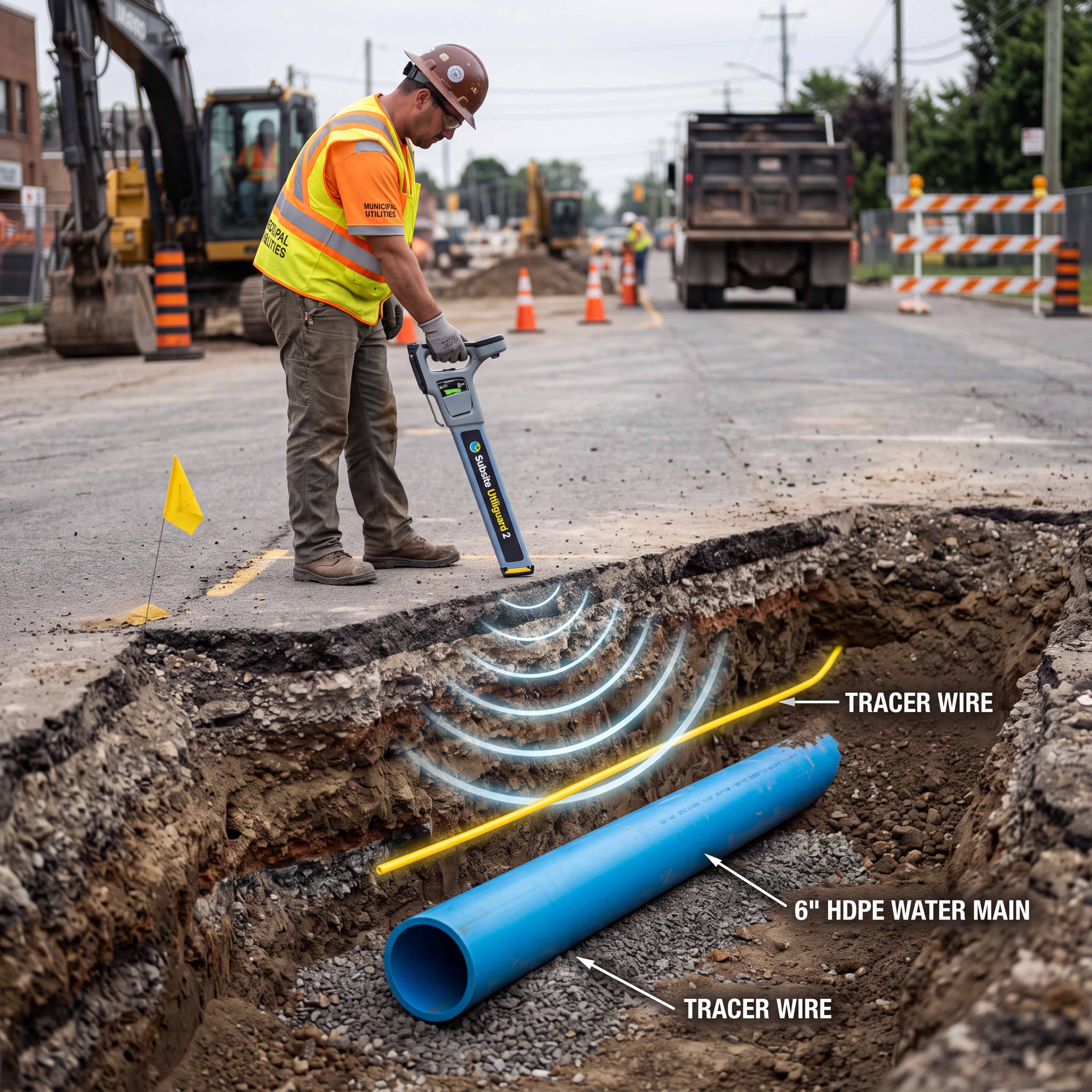

When a utility operator needs to locate a buried line, they connect a locator transmitter to the tracer wire at an access point (such as a tracer wire test station or valve box). The transmitter induces a low-frequency radio signal into the wire. The operator then sweeps the surface with a handheld receiver, which detects the electromagnetic field radiating from the energized wire. This allows the operator to trace the exact path and depth of the non-metallic pipe tracer wire, ensuring safe and precise excavation.

Classifications of Utility Tracer Wire

Not all tracing environments are the same. Depending on the installation method—whether open trench, directional drilling, or pipe bursting—the mechanical demands placed on the utility tracer wire vary significantly.

1. Copper Clad Steel (CCS) Tracer Wire

CCS is the industry gold standard for underground tracking. It features a steel core for exceptional tensile strength and a copper cladding for optimal conductivity. It is highly resistant to breaking during backfilling or horizontal directional drilling (HDD).

2. Solid Copper Tracer Wire

Traditionally used in open-trench applications, solid copper offers maximum conductivity. However, it has lower tensile strength compared to CCS and is more prone to stretching or breaking under extreme physical stress.

3. Stainless Steel Tracer Wire

Designed for highly corrosive soil environments. While its conductivity is slightly lower than copper, its extreme resistance to chemical degradation makes it ideal for specialized industrial and chemical plant applications.

Technical Specifications & Application Scenarios

When specifying an underground tracer wire for a municipal or commercial project, engineers must account for wire gauge, insulation type, and break load. To withstand underground moisture and friction, the wire is typically coated in High Molecular Weight Polyethylene (HMWPE) or High-Density Polyethylene (HDPE), which vastly outperforms standard PVC insulation in direct-burial scenarios.

Standard Specifications for Pipe Tracer Wire

Key Features and Application Scenarios

• High Tensile Strength: HDD-grade CCS wire will not snap during the intense pulling forces of trenchless installations.
• Corrosion Resistance: The tough HDPE jacket protects the copper cladding from acidic soils and groundwater.

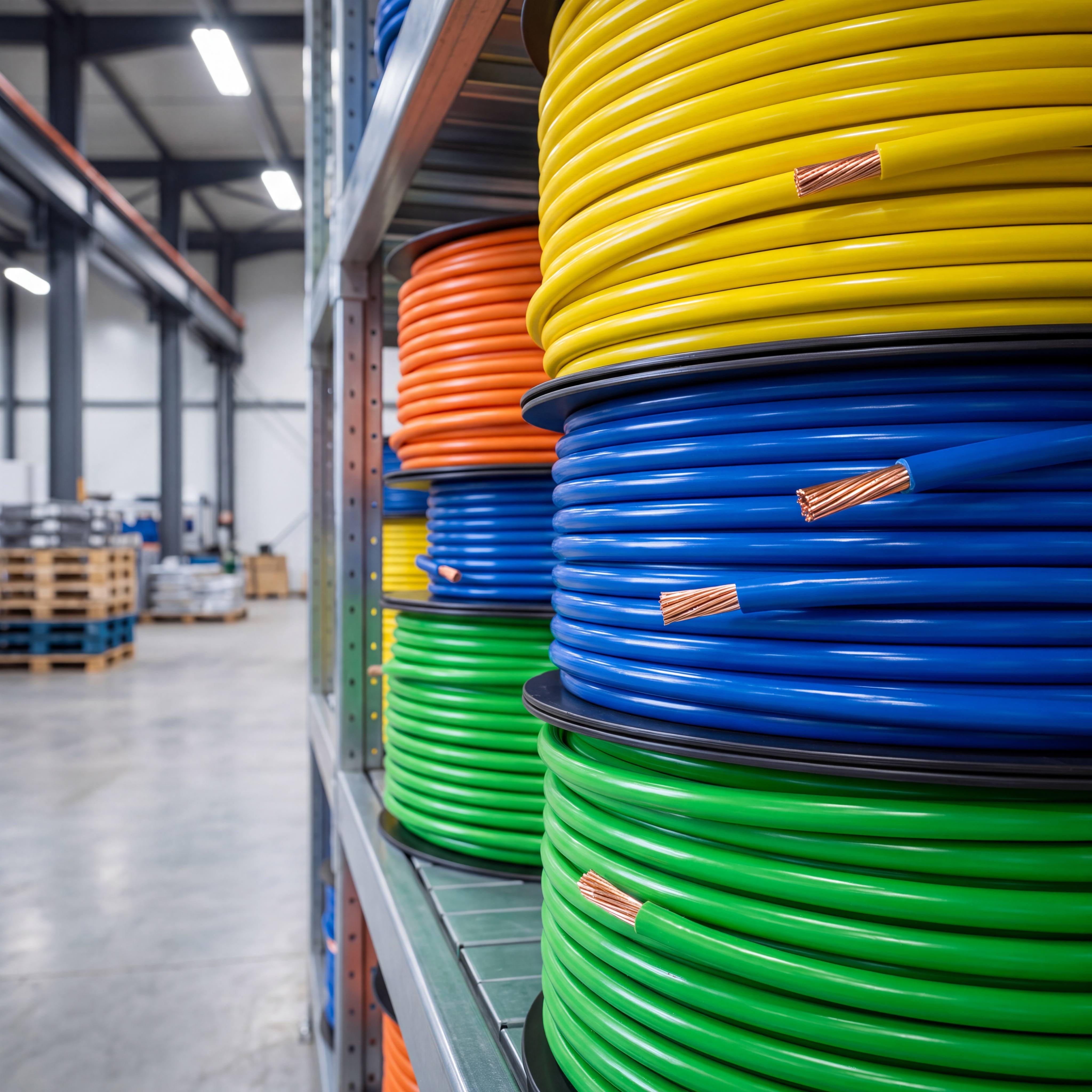

• Municipal Water & Sewer: Crucial for tracking buried PVC and HDPE water mains. Blue and green coded wires are used for immediate visual identification.
• Gas Distribution: Yellow-jacketed tracer wire is mandated for all buried polyethylene (PE) natural gas lines to prevent explosive dig-ins.

Your Trusted Custom Pipe Tracer Wire Manufacturer

Procuring high-quality tracing solutions requires partnering with a manufacturer that understands the strict demands of underground engineering. As a premier custom pipe tracer wire manufacturer, we are dedicated to providing contractors, municipalities, and distributors with flawless, heavy-duty wire products that guarantee 100% detectability.

Why Choose Our Factory?

1. ISO9001 Certified Quality: Every spool of pipe tracer wire is manufactured under rigorous quality control standards, ensuring consistent conductivity, precise insulation thickness, and verified tensile strength before leaving our facility.
2. Comprehensive OEM/ODM Support: We don't just sell standard products; we build customized solutions. Whether you need custom AWG sizes, specific insulation thicknesses, or custom branding printed directly on the wire jacket, our factory can accommodate your unique specifications.
3. Small Batch Customization Supported: We understand that project scopes vary. Unlike rigid suppliers, our flexible production lines allow us to accept small-batch custom orders without compromising on lead times or pricing.
4. Professional Design & Engineering Team: Facing a complex trenchless HDD project? Our in-house technical team provides end-to-end consulting, helping you select the correct break loads and metallurgical compositions to prevent wire failure.
5. Complete Turnkey Solutions: Beyond the wire itself, we supply a complete ecosystem of waterproof connectors, grounding anodes, and test stations to ensure the integrity of your entire tracing system.

Protect your underground assets and streamline your next installation with utility tracking wire built to last a century.

Ready to upgrade your underground infrastructure? Contact our technical sales team today for a free project consultation, custom product samples, and a highly competitive factory-direct quote.
