The Ultimate Guide to Yellow Tracer Wire for Underground Gas Lines

As modern infrastructure rapidly evolves, the shift toward non-metallic underground pipelines—such as polyethylene (PE) and PVC—has created a significant challenge for municipal engineering and gas pipeline contractors: these pipes are invisible to traditional metal detectors. The solution lies in a simple yet critical component—the yellow tracer wire.

According to the rigorous APWA (American Public Works Association) Uniform Color Code, yellow is exclusively designated for gaseous materials, including natural gas, steam, and petroleum. Installing a high-quality Yellow tracer wire for underground gas line is not just an industry recommendation; it is an absolute necessity for safe excavation, precise locating, and the prevention of catastrophic damage.

How Does Tracer Wire Work? (Working Principle)

The fundamental working principle of a tracer wire is straightforward but highly effective. The wire is laid adjacent to and simultaneously with the non-metallic pipeline during installation. When future maintenance or excavation is required, a technician connects a utility locate transmitter to an accessible above-ground endpoint of the tracer wire. The transmitter sends a low-frequency radio signal through the conductive core of the wire. A worker then uses a handheld receiver to trace the electromagnetic field generated by the wire, mapping the exact path and depth of the underground gas line with pinpoint accuracy.

Classification: Solid Copper vs. Copper Clad Steel (CCS)

When selecting a yellow tracer wire, understanding the core material is crucial for matching your project's technical and budgetary requirements.

1. Solid Copper Tracer Wire

Solid copper wire offers exceptional electrical conductivity and superior flexibility. It is highly recommended for projects that require long-distance signal transmission and high-precision locating. While slightly more expensive, pure copper guarantees maximum signal integrity over vast underground utility networks.

2. Copper Clad Steel (CCS) Tracer Wire

A Copper clad steel yellow tracer wire combines the best of both worlds: the mechanical strength of a steel core and the conductivity of a copper coating. CCS is highly favored by contractors because of its remarkable tensile strength, which drastically reduces the risk of the wire breaking during the backfilling process. It is the most cost-effective and reliable solution for standard-distance underground directional drilling and open-trench applications.

Features & Critical Application Scenarios

1. Solving the Non-Metallic Pipeline Dilemma

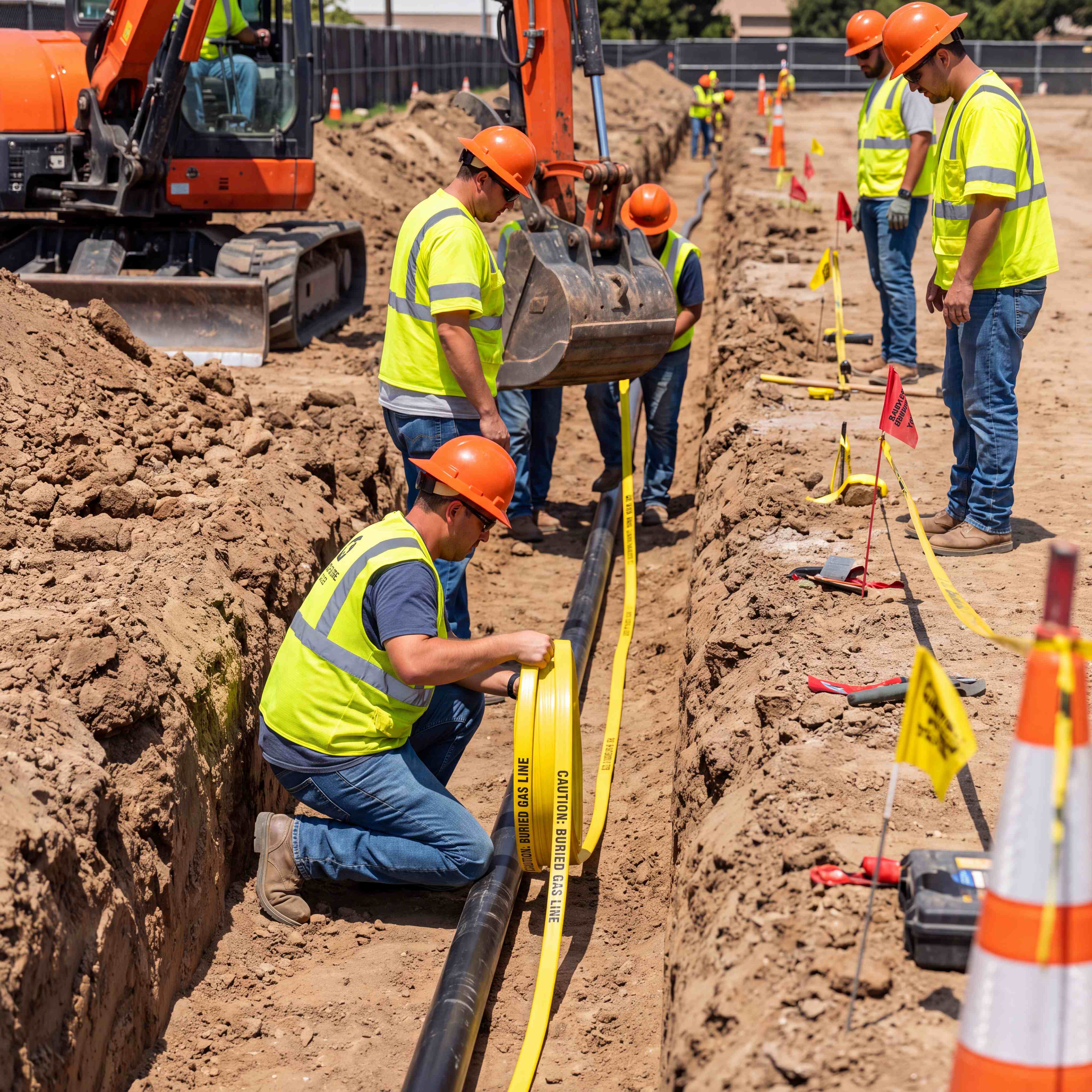

By synchronizing the laying of tracer wire with PE/PVC pipes, contractors eliminate the risk of blind digging. This dramatically reduces excavation damage, thereby preventing gas leaks, costly repairs, and project delays.

2. Designed for Harsh Underground Environments

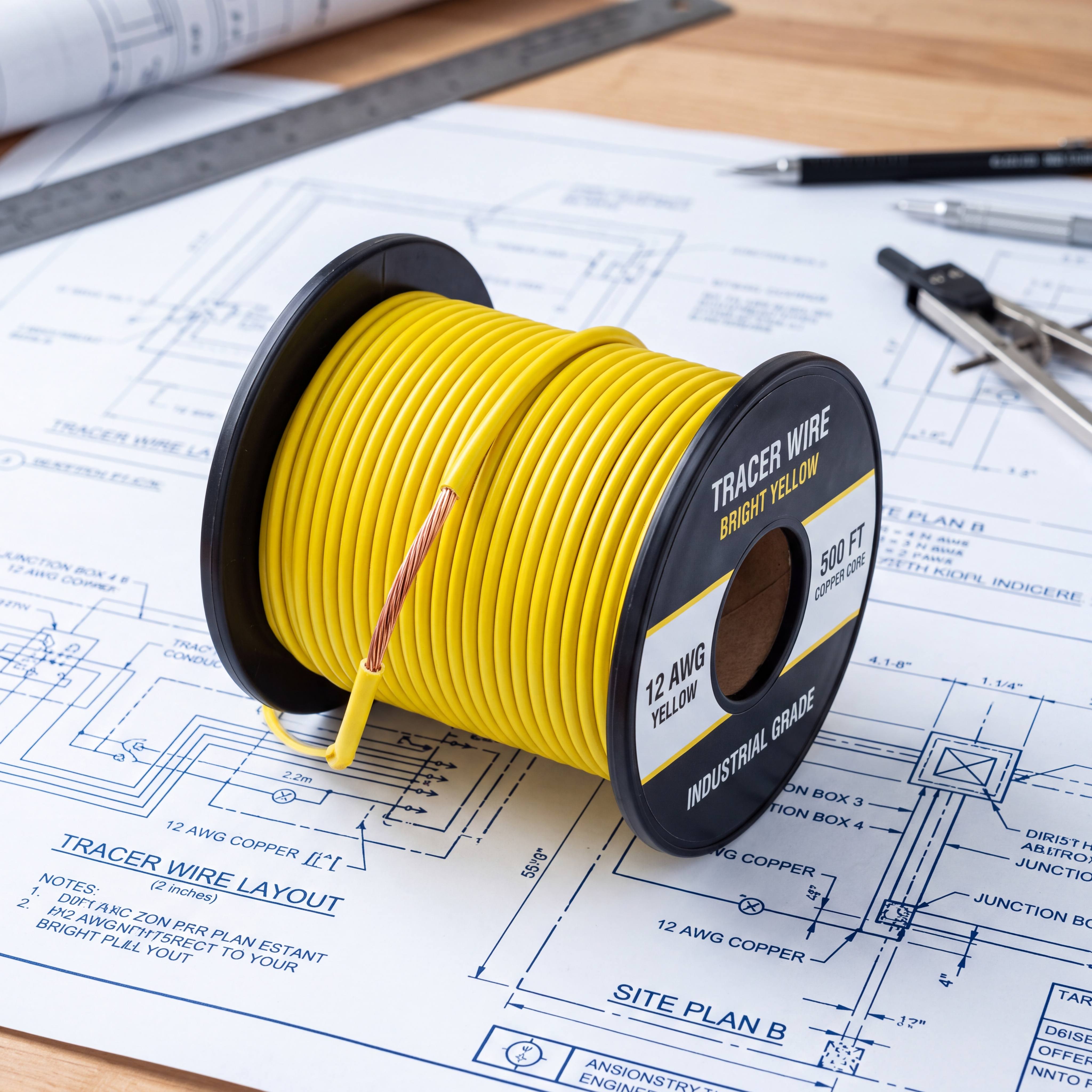

Underground environments are unforgiving, exposed to moisture, soil chemicals, and physical stress. A standard 12 AWG yellow tracer wire direct burial is engineered specifically for these conditions, ensuring that the wire remains highly conductive and physically intact for decades.

3. ASME/ANSI A13.1 Compliance for Steam Tracing

Beyond standard natural gas lines, yellow tracer wire is heavily utilized in steam heat tracing systems. Following the ASME/ANSI A13.1 standard for the identification of piping systems, safety yellow serves as a clear visual warning. It provides essential safety identification and freeze-protection mapping for hazardous or high-temperature gaseous environments.

Technical Specifications

To ensure long-term durability and signal integrity, the insulation and core size must meet strict engineering standards. Below are the typical specifications for our top-tier HDPE insulated yellow gas tracer wire.

Note: High-Density Polyethylene (HDPE) is crucial because it provides superior resistance against abrasions, crushing, and chemical degradation compared to standard PVC, making it the ultimate choice for direct burial applications.

Why Choose Us? Your Trusted Yellow Tracer Wire Manufacturer in China

Finding a reliable supply chain partner is just as important as the product itself. As a premier Yellow tracer wire manufacturer China, we pride ourselves on delivering world-class industrial wire solutions tailored to the strict demands of overseas municipal engineering buyers and wholesalers.

• Custom Trace Wire Manufacturer: We own a state-of-the-art production facility, offering an extensive range of customization options including wire gauge, insulation thickness, and core materials.
• Uncompromising Quality (ISO9001): Our factory operates under strict ISO9001 quality management systems. Every spool of wire is rigorously tested for conductivity, tensile strength, and insulation integrity before shipment.
• Flexible OEM/ODM & Small Batch Production: Whether you are a large-scale contractor or a specialized wholesaler, we support both massive bulk orders and small-batch custom productions. Your brand, your specifications.
• One-Stop Solution: Backed by an experienced design and engineering team, we provide end-to-end services—from technical consultation and prototyping to final mass production and global logistics.

Don't compromise on the safety and reliability of your underground gas infrastructure. Partner with a factory that understands international standards and your unique project needs.

[Contact our engineering team today] to get a free quote and request custom samples of our premium yellow tracer wire!
