The Ultimate B2B Sourcing Guide for Light Bar Wire Harness Solutions

For automotive engineers, fleet managers, and aftermarket brand owners, upgrading a vehicle's lighting system is more than just mounting a high-lumen LED fixture. The critical component ensuring operational safety, stable power delivery, and equipment longevity is the light bar wire harness.

Tapping directly into a vehicle's factory wiring to power auxiliary LED lighting is a major engineering flaw. It leads to severe circuit overloads, blown OEM fuses, and potential electrical fires. A professionally engineered, independent wiring system is the only industry-standard solution to bypass original circuits and provide safe, isolated power. This guide delves into the technical specifications, application scenarios, and B2B procurement strategies for high-performance wire harness solutions.

The Engineering Behind Automotive Electrical Protection

A premium led light bar wiring harness functions as an autonomous power delivery network. By utilizing a direct connection to the vehicle's battery combined with an electromechanical relay, the harness draws zero high-current load from the factory switch panel in the cabin.

When the driver activates the switch, only a micro-current is sent to the relay coil. The relay then magnetically closes the high-current circuit, drawing power directly from the battery through an inline fuse to the LED auxiliary lights. This principle guarantees original electrical system integrity, prevents voltage drops, and ensures maximum illumination output, which is absolutely critical for heavy machinery and off-road applications.

Core Technical Specifications for B2B Procurement

When evaluating supply chain partners for automotive electrical components, purchasing managers must scrutinize the exact engineering parameters of the products. Here are the core specifications of our flagship products:

1. Superior Gauge and Optimal Length

Electrical resistance is the enemy of performance. Our 300cm 16awg light bar wire harness provides the perfect balance of flexibility and conductivity. The 3-meter length (approx. 10 feet) is precisely calculated to reach from the vehicle's battery compartment to the front bumper, roof rack, or A-pillar without requiring dangerous manual splicing. The 16 American Wire Gauge (AWG) pure copper core effectively prevents voltage decay over distance, ensuring continuous maximum brightness.

2. Uncompromising Load Capacity

High-lumen LED arrays require substantial amperage. We manufacture a heavy duty 40a light bar wiring harness equipped with an automotive-grade 40-amp power relay and a matched 30A inline blade fuse. This robust configuration safely handles high-wattage auxiliary lighting setups, acting as an impenetrable fail-safe against short circuits and thermal overloads.

3. All-Weather Durability

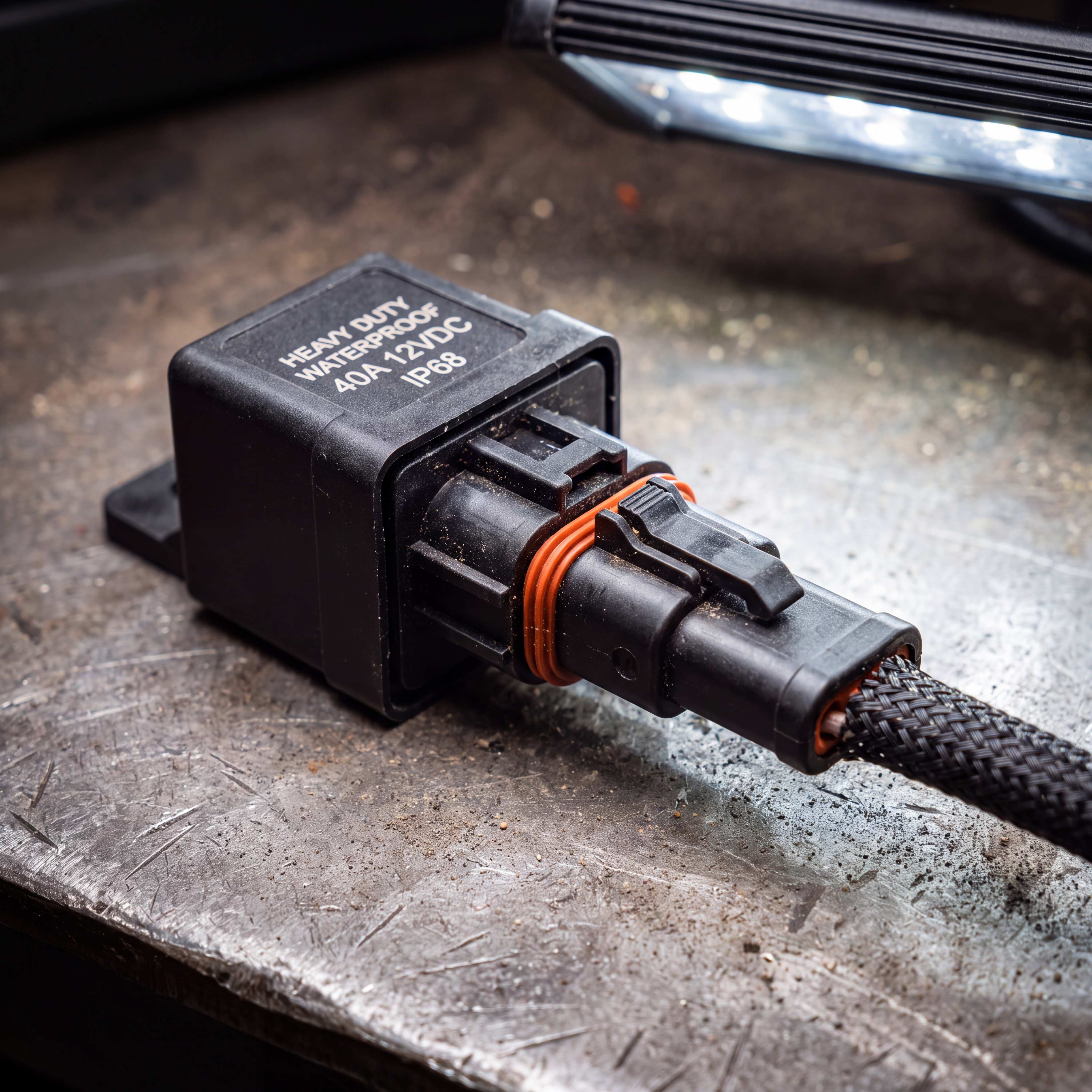

For vehicles operating in extreme environments, moisture and dust ingress are fatal to electrical systems. Our waterproof relay light bar harness is engineered with sealed, weather-tight relay enclosures and IP67/IP68 rated DT (Deutsch) or AMP connectors. This ensures zero corrosion and uninterrupted functionality in rain, mud, snow, and high-humidity environments.

4. Perfect Dimensional Compatibility

Matching the wire harness capacity to the specific lighting fixture is vital for B2B distributors building bundled kits. We have engineered specialized wiring kits optimized for 10-30 inch led light bar wiring harness applications. This ensures that the wire gauge, relay capacity, and terminal connectors are perfectly synchronized with the wattage demands of mid-sized LED light bars used extensively across the automotive aftermarket sector.

Diverse Application Scenarios for Global Markets

A reliable 12v light bar wire harness is not limited to a single vehicle type. As a B2B distributor or OEM equipment manufacturer, sourcing a highly adaptable harness expands your market reach across multiple lucrative industries. Our wire harness solutions are engineered for universal 12V DC systems, providing seamless integration for:

• Off-Road & 4x4 Culture: The rugged environment of mud-bogging and rock-crawling demands maximum durability. Our off-road vehicle light bar wire harness is the standard for modifying Jeeps, pickup trucks, SUVs, and ATVs/UTVs.
• Agricultural Machinery: Tractors and harvesters operating during nighttime hours require immense auxiliary lighting powered by safe, heavy-duty wiring to prevent field fires.
• Construction & Engineering Vehicles: Excavators, bulldozers, and heavy loaders rely on our 40A harnesses to maintain continuous lighting during demanding night-shift operations.
• Specialty Vehicles: Forestry equipment, RVs, marine vessels (with 12V configurations), and emergency response vehicles benefit from the standardized, plug-and-play reliability of our waterproof electrical systems.

Partner with a Premier Custom Wire Harness Manufacturer

In the competitive automotive aftermarket and industrial equipment sectors, supply chain reliability is your greatest asset. As an ISO9001 certified custom wire harness manufacturer, we do not just sell standard cables; we engineer comprehensive electrical solutions tailored to your brand's exacting standards.

Why Choose Us as Your B2B Manufacturing Partner?

• Strict Quality Control: Every harness undergoes 100% computerized continuity, voltage drop, and dielectric withstand testing before leaving our facility, ensuring zero-defect rates for your inventory.
• Professional Design Team: Need a unique connector type, specific wire lengths, or dual-output designs? Our in-house engineering team provides rapid prototyping and schematic design support.
• OEM & ODM Capabilities: We support full white-label manufacturing, custom branded packaging, and bespoke laser etching on relays and switches to elevate your brand value.
• Flexible Small Batch Production: We understand the dynamics of inventory management. We support small batch customization orders to help distributors test new markets with lower financial risk.

Secure Your Supply Chain Today Stop losing customers over subpar electrical accessories. Upgrade your product catalog with our industry-leading light bar wire harness solutions. Contact our B2B sales engineering team today to request a technical catalog, discuss your OEM/ODM requirements, or arrange for customized sample testing.

Let us power your business with unparalleled manufacturing excellence. Send your inquiry now to receive a customized quote within 24 hours.
