The Ultimate Guide to Power Cable Assemblies: Standards, Applications, and Custom Solutions

When sourcing reliable electrical components for demanding projects, engineers and procurement managers know that a high-quality power cable assembly is the lifeline of any complex system. Whether bridging components in a smart factory or powering the next generation of electric vehicles, the integrity of your electrical connections determines the safety and efficiency of your entire operation.

In this comprehensive guide, we will explore the definition, working principles, core industry standards, and application scenarios of power cable assemblies, and explain why partnering with an expert manufacturer is critical for your success.

What is a Power Cable Assembly?

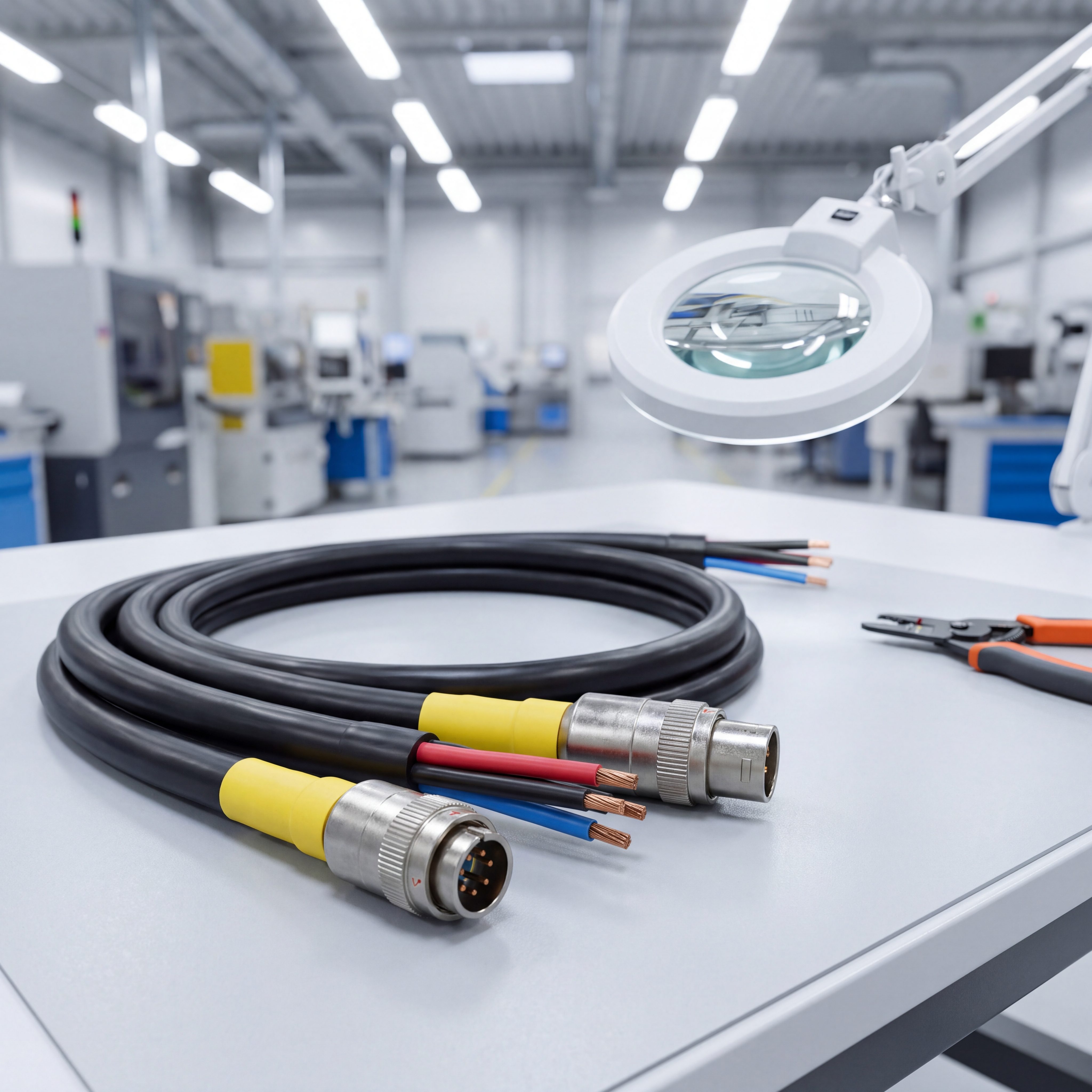

A power cable assembly consists of one or multiple insulated electrical conductors that are tightly bundled, shielded, and pre-terminated with specific connectors or terminals. Unlike basic bulk wire, these assemblies are engineered as "plug-and-play" solutions specifically designed for efficient, safe, and large-scale electrical power transmission.

Today's modern applications demand precision. From industrial automation systems to renewable energy setups (like wind and solar) and automotive manufacturing, utilizing the right industrial power cable assembly ensures stable power delivery, minimizes electrical loss, and eliminates the risk of catastrophic system failure caused by harsh environmental factors.

How Do Power Cable Assemblies Work?

The working principle of a power cable assembly relies on conductive materials (usually high-purity copper or aluminum) transferring electrical energy from a primary power source to an active load. However, the true engineering marvel lies in the surrounding materials.

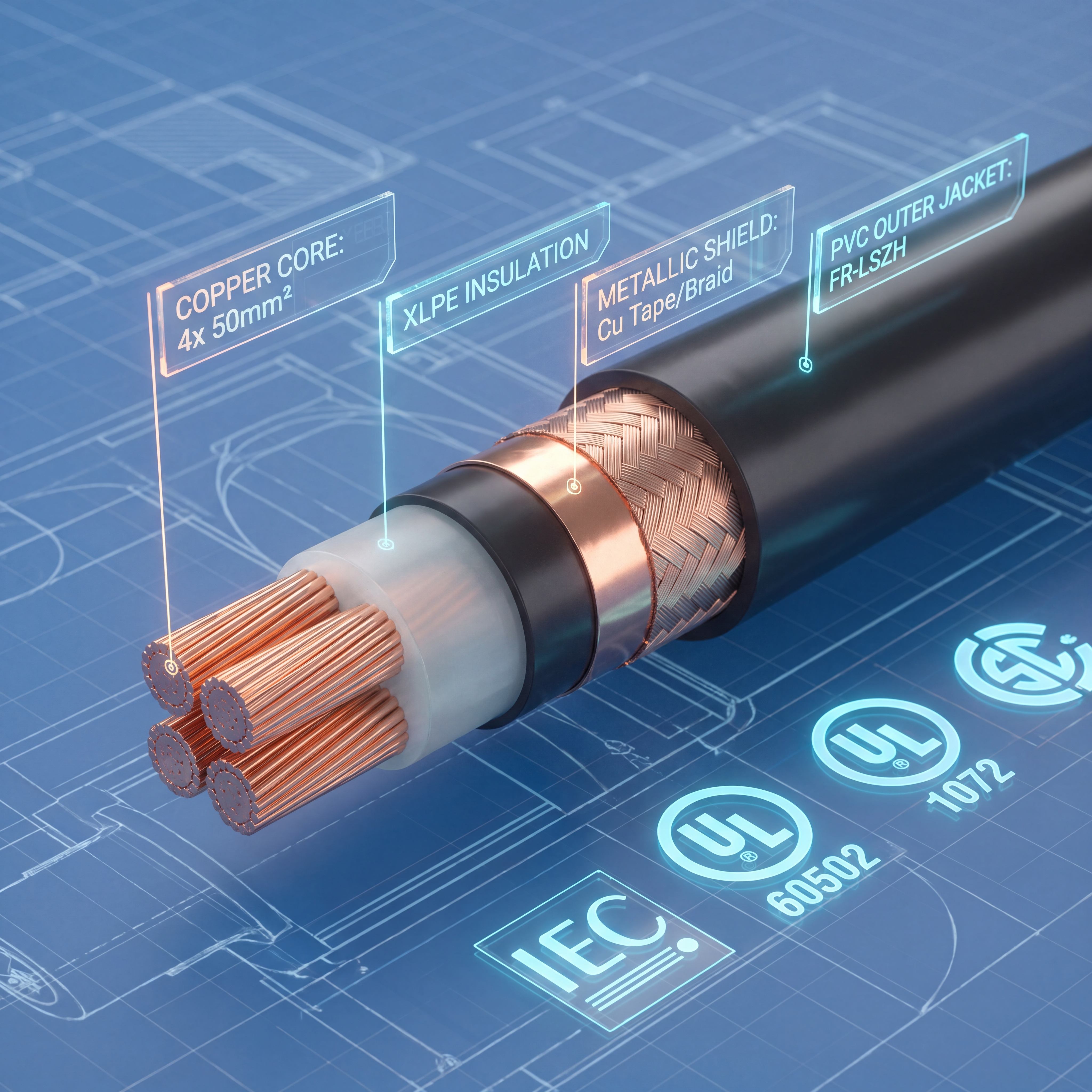

Advanced dielectrics and extruded insulation layers prevent voltage leakage, while external jacketing protects against mechanical stress, extreme temperatures, chemicals, and electromagnetic interference (EMI). Through precision-crimped or soldered connectors, the assembly guarantees a seamless, low-resistance electrical pathway capable of handling continuous, high-amperage loads safely.

Classifications & Key Industry Standards

To guarantee safety, reliability, and interoperability across global markets, power cable assemblies must comply with stringent international standardizations. Here is a breakdown of the critical regulatory frameworks:

1. General Power Cable Standards (IEC 60502 Series)

Regulating extruded insulation power cables and their accessories, the upcoming 2026 update of the IEC 60502 series sets the benchmark for cables operating from 1kV up to 30kV. Assemblies built to this standard are rigorously tested for thermal aging, mechanical tensile strength, and high-voltage resistance, making them the gold standard for heavy-duty infrastructure.

2. ICT Power Cable Standards (UL 9990, 2024 Edition)

Information and Communication Technology (ICT) equipment requires unique power delivery methods. The newly released UL 9990 standard focuses on the power-carrying capacity of cables supplying ICT equipment operating up to 60V DC. If you are designing server racks or telecom infrastructure, ensuring your custom power cables meet UL 9990 guarantees fire safety and operational thermal stability.

3. EV Charging Cable Standards (IEC 62893 Series)

The booming new energy vehicle sector relies heavily on the IEC 62893 series. This standard strictly dictates the material and electrical requirements for EV charging cables rated at 0.6/1kV and below. Assemblies compliant with IEC 62893 ensure ultra-safe, high-speed charging in various weather conditions, handling repeated mechanical bending without degradation.

4. General Cable Specifications (EN 50525 Series)

For standard power and control cables, the EN 50525 series acts as the fundamental European benchmark. Cables certified under this series are integrated into the HAR (Harmonized) certification system and ensure compliance with RoHS (Restriction of Hazardous Substances) and REACH regulations, guaranteeing environmental compliance and operator safety.

Features & Application Scenarios

Choosing between different voltage ratings is a critical step in system design. Depending on your project requirements, you will likely need either a high or low voltage solution.

Low Voltage Power Cable Assembly

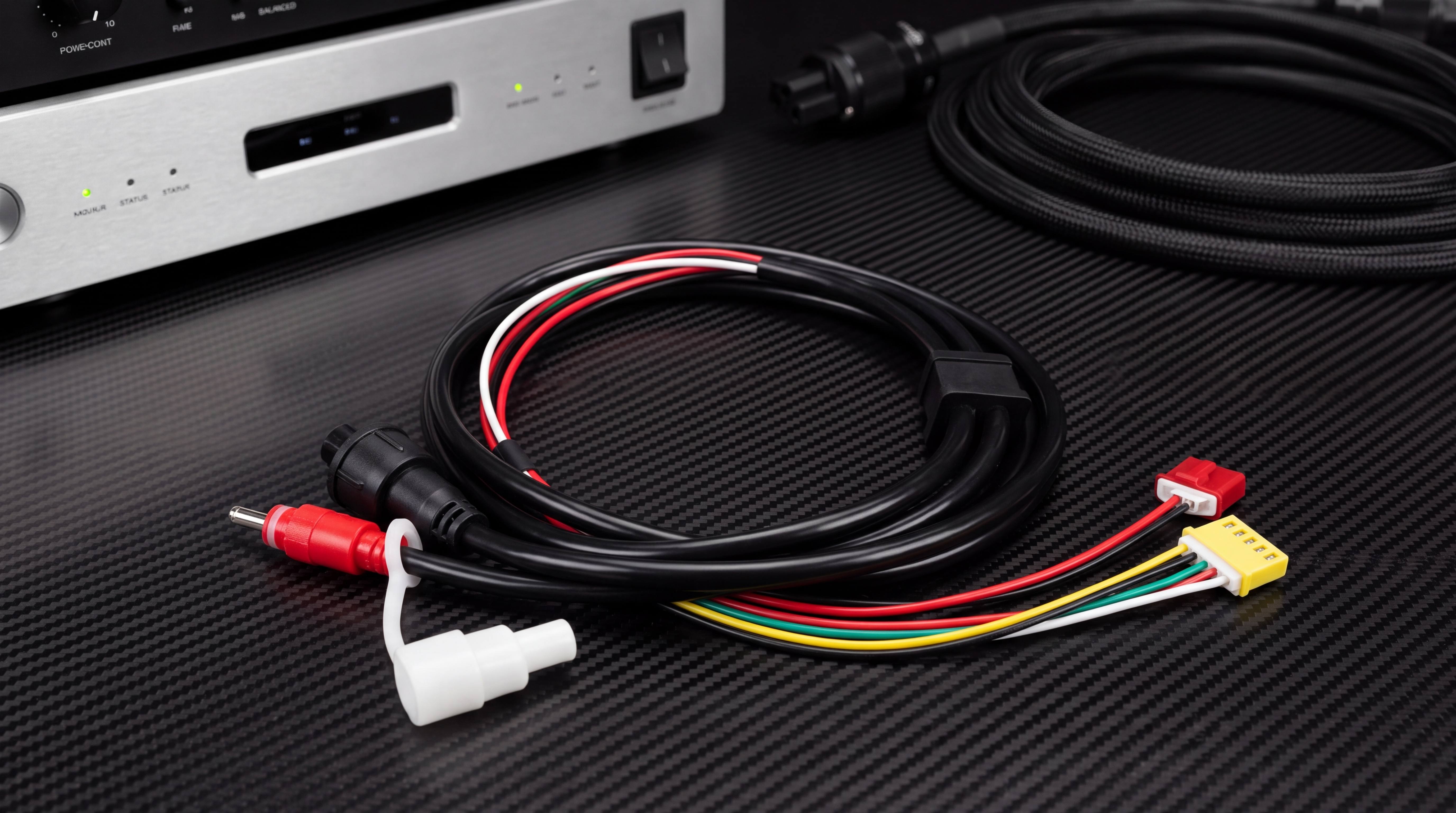

Operating below 1kV, a low voltage power cable assembly is characterized by high flexibility, compact sizing, and excellent resistance to vibration.

• Application Scenarios: Industrial control panels, robotics, medical equipment, server farms, and customized factory machinery.

High Voltage Power Cable Assembly

A high voltage power cable assembly is engineered to manage electrical loads from 1kV up to 30kV. These assemblies feature heavy-duty shielding, thicker insulation, and robust termination techniques to prevent electrical arcing.

• Application Scenarios: Power substations, heavy mining equipment, railway transit systems, and large-scale renewable energy storage grids.

Why Choose Us as Your Custom Power Cable Assembly Manufacturer?

Every engineering project has its unique spatial and electrical constraints, which means off-the-shelf cables often fall short. This is where we step in. As a premier custom power cable assembly manufacturer, we bridge the gap between technical requirements and seamless manufacturing execution.

When you partner with us for your custom power cable assemblies, you gain access to an unparalleled suite of factory capabilities:

• ISO9001 Certified Quality: Every custom power cable we produce undergoes rigorous testing—including continuity, high-voltage (Hipot), and pull-force testing—ensuring 100% compliance with IEC, UL, and EN standards.
• Flexible OEM/ODM Services: Whether you need to manufacture an existing blueprint (OEM) or require our expert engineering team to design a cable from scratch (ODM), we deliver end-to-end, one-stop solutions.
• Low Volume Production Support: We understand that specialized B2B projects require prototyping and pilot runs. We proudly support low volume production, allowing you to validate your designs without committing to massive minimum order quantities (MOQs).
• Expert Design Team: Our seasoned technical experts can assist you in selecting the ideal wire gauges, connector brands, and shielding materials to perfectly balance performance and budget.

Ready to Power Your Next Project?

Stop letting substandard wiring bottleneck your innovation. Whether you need a complex high voltage power cable assembly for heavy machinery or highly specialized custom power cables for new energy applications, our engineering team is ready to assist.

Contact us today to discuss your technical specifications, submit your drawings, and receive a competitive quote. Let us be the reliable connection behind your success!
