The Ultimate Guide to PCB Cable Assembly: Your Crucial Electrical Bridge

In today’s rapidly advancing electronic manufacturing landscape, ensuring stable power and signal transmission is the most critical challenge for hardware engineers and product development managers. At the heart of this challenge lies the pcb cable assembly—the essential "electrical bridge" that seamlessly connects printed circuit boards to external devices, displays, power sources, and other intricate electronic ecosystems.

Signal loss, electromagnetic interference (EMI), and power instability can lead to catastrophic failures in medical devices, automotive electronics, and industrial automation. Overcoming these pain points requires highly precise, customized interconnection solutions. As a professional ISO9001-certified custom factory, we specialize in comprehensive wire and cable harness pcb assembly solutions tailored to meet your most demanding structural and environmental specifications.

Working Principle & Core Features: The Anatomy of Interconnection

To understand the value of a high-quality interconnection, it is vital to analyze its working principle. A printed circuit board (PCB) operates as the brain of an electronic device, while the cable assembly functions as the nervous system, transmitting electrical currents and data signals exactly where they are needed.

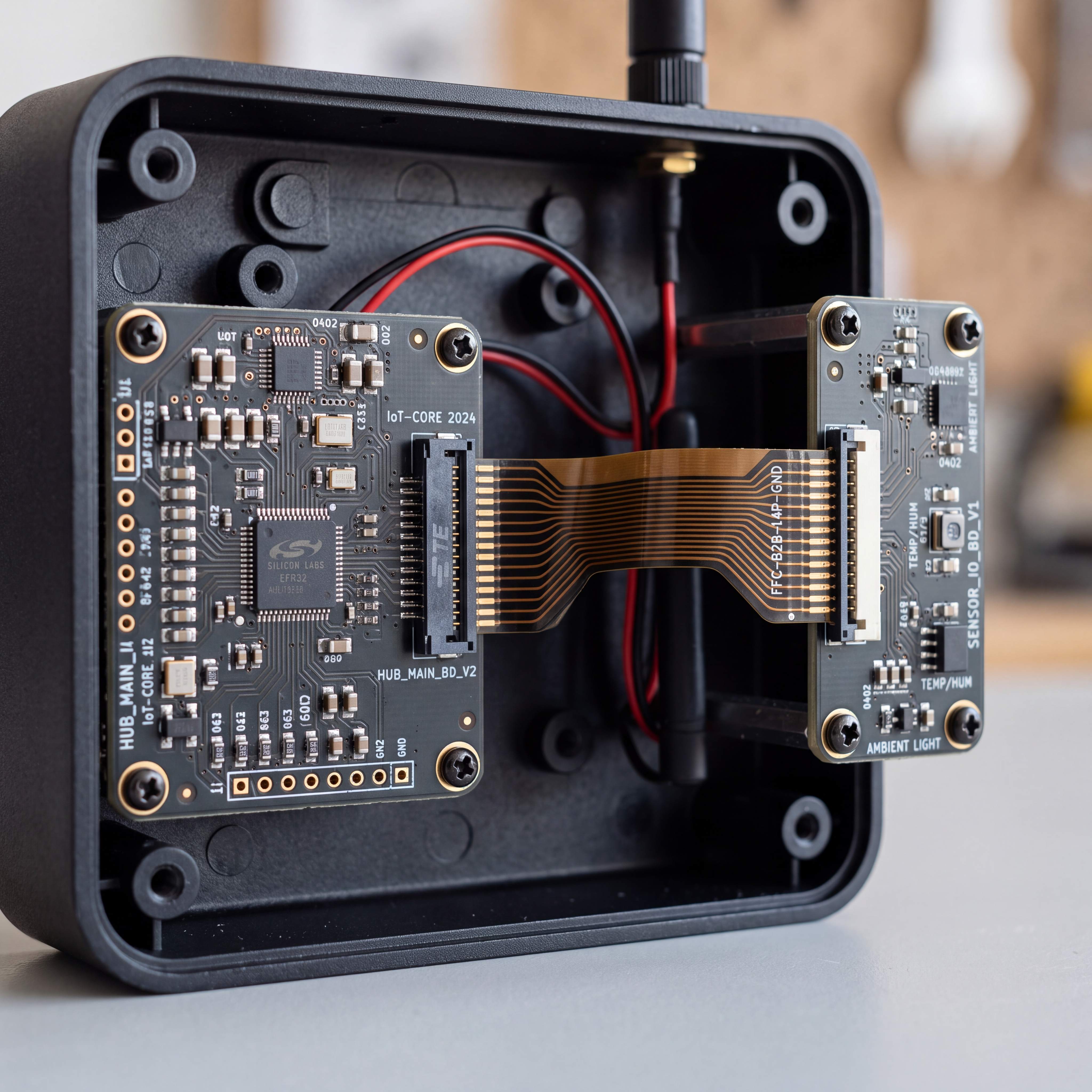

By utilizing precision-engineered connectors, terminals, and insulated wires, these assemblies form a secure, low-resistance path. For designs requiring interconnections between a motherboard and peripheral components (such as switches or fans), a wire to board cable assembly is specifically deployed to lock firmly into PCB headers, preventing accidental disconnections caused by mechanical vibration.

Furthermore, in high-frequency applications like telecommunications or aerospace, signal integrity is often threatened by EMI and Radio Frequency Interference (RFI). To counteract this, a pcb shielded cable assembly is integrated into the design. Featuring metallic foil or braided copper shielding, these specialized assemblies block external electromagnetic noise while preventing internal signal leakage, ensuring zero-latency, error-free data transmission.

Comprehensive Classifications & B2B Application Scenarios

Different electronic architectures demand distinct interconnection strategies. As an experienced custom pcb cable assembly provider, we engineer and manufacture a diverse range of configurations adapted to specific industry requirements.

1. Board-to-Board Flexible Cable Assemblies

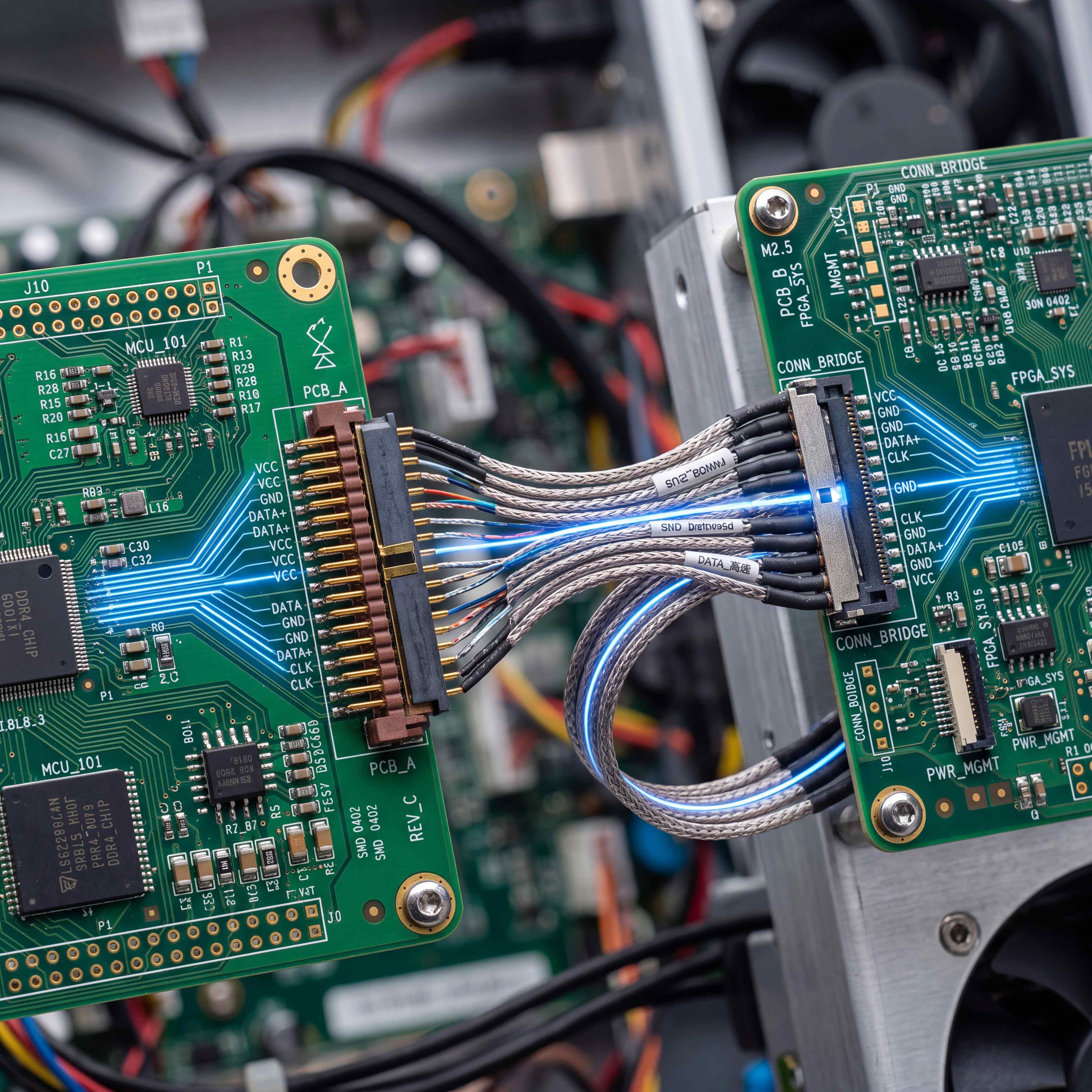

When spatial constraints are tight and two distinct PCBs must be connected directly within a compact enclosure, a board to board cable assembly is the optimal choice. Often utilizing flexible flat cables (FFC) or micro-coaxial cables, these assemblies allow for high-density routing without compromising airflow.

• Application Scenario: Ideal for consumer electronics, smart home displays, and IoT gateways where space-saving and dynamic bending capabilities are paramount.

2. Sensor-Specific PCB Cable Assemblies

Industrial automation and robotics rely heavily on real-time data acquisition. A robust pcb wire harness assembly designed specifically for sensors ensures that delicate analog or digital signals travel from the factory floor to the control board without degradation. These assemblies feature ruggedized housings and strain relief to withstand continuous mechanical stress.

• Application Scenario: Widely used in robotic arms, automotive engine control units (ECUs), and medical diagnostic equipment requiring precise sensor feedback.

3. Custom High/Low-Temperature Watertight PCB Cable Assemblies

Extreme environments demand extreme reliability. Standard PVC cables will melt in high-heat industrial ovens or crack in freezing outdoor telecommunication towers. By utilizing materials like Teflon (PTFE), silicone, and IP67/IP68 rated waterproof connectors, our factory engineers interconnects that survive the harshest conditions.

• Application Scenario: Marine electronics, aerospace modules, and outdoor renewable energy inverters.

4. Flat Ribbon PCB Cable Assemblies

For systems requiring the simultaneous transmission of multiple data streams, flat ribbon cables offer a clean, organized, and cost-effective solution. With their parallel conductor layout, they are easily terminated with Insulation Displacement Connectors (IDC), making them highly efficient for mass production.

• Application Scenario: Mainframe computers, industrial testing equipment, and complex server racks.
