Ultimate Guide to Custom Battery Connection Cables: Types, Specs & Manufacturing Solutions

In modern power systems, the battery connection cable is more than just a wire; it is the vital lifeline bridging the gap between batteries, loads, and charging systems. Whether you are designing a high-voltage Electric Vehicle (EV) architecture, assembling industrial energy storage cabinets, or sourcing reliable components for portable power stations, choosing the right heavy duty battery cable is critical for safety, efficiency, and optimal power transfer.

As a leading custom battery connection cable manufacturer, we understand the technical pain points of B2B buyers and R&D engineers. In this comprehensive guide, we will explore the working principles, connector types, specifications, and applications of industrial-grade battery cables.

How Does a Battery Connection Cable Work?

At its core, a battery connection cable facilitates the seamless and safe transfer of high direct current (DC) between power sources and end-use systems. It serves as the core high-current linkage in charge and discharge cycles. To prevent dangerous voltage drops and overheating during extreme current draws, these cables utilize high-purity oxygen-free copper (OFC) or tinned copper cores, wrapped in durable, heat-resistant insulation.

For multi-battery setups (series or parallel), a reliable battery interconnect cable ensures balanced charging and discharging across the entire battery bank, maximizing the lifespan of the energy storage system.

Classification: Types of Cables Based on Connectors

Different industrial applications demand specific termination methods. Here is a breakdown of the most common high-performance connectors used in battery cables with terminals:

1. Dinse Connectors (Industrial & Welding)

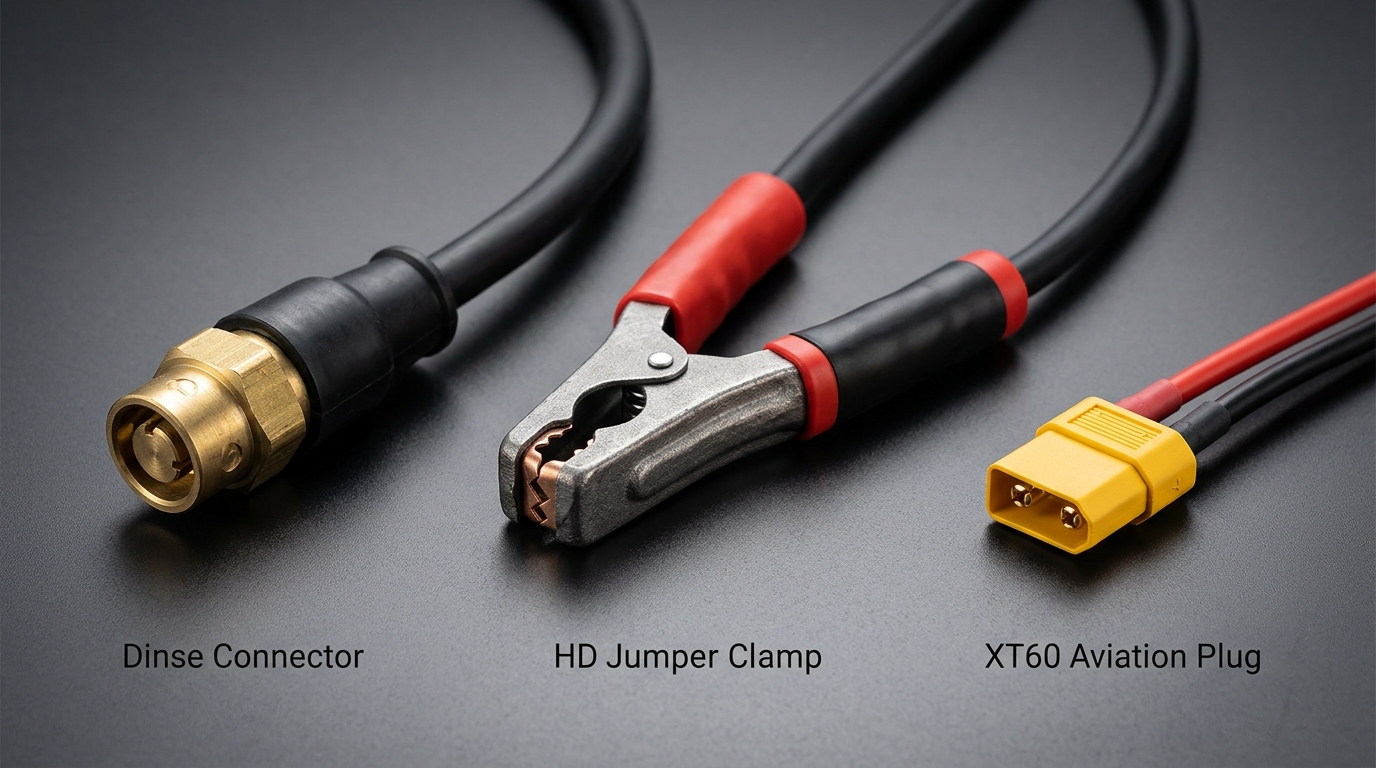

Designed for extreme environments, Dinse connectors feature a robust brass insulated twist-lock mechanism. These act as an excellent battery quick disconnect cable solution, ensuring a secure, vibration-proof connection.

• Current Capacity: 150A to 500A.
• Wire Gauge: 6 AWG to 2/0 AWG.
• Best For: Heavy industrial equipment, welding machines, and high-vibration environments.

2. Spring-Loaded Clamps (Testing & Emergency)

Often utilized as a battery jumper cable, spring-loaded terminal clamps allow for rapid, tool-free connections.

• Material: High-conductivity lead or thick brass jaws with heavy-duty springs.
• Current Capacity: 100A to 300A.
• Best For: Automotive jump-starting, temporary load testing, and emergency power deployment.

3. Aviation Plugs & XT60 (Portable Energy Storage)

With the booming market for portable power stations (e.g., BLUETTI, DJI, EcoFlow), specialized connectors like XT60, XT90, and multi-pin aviation plugs are highly sought after.

• Features: Compact, anti-spark, and highly reliable.
• Best For: Solar generator expansion packs, drone charging stations, and portable power interconnects.

Technical Specifications for Heavy Duty Battery Cables

To assist R&D and purchasing managers in sourcing the correct bulk materials, we have detailed the standard specifications for our custom-manufactured cables below:

Need a specific gauge or rating? As a direct supplier, we offer wholesale customization to meet your exact engineering schematics.

Core Features & Industry Applications

A premium battery cable with lugs or specialized terminals is engineered to operate flawlessly across diverse and demanding scenarios:

• Standard Lead-Acid Battery Systems: Utilizing heavy-duty battery cables with terminals (usually tin-plated copper rings), these are the backbone of golf carts, forklifts, and marine battery banks, offering superb corrosion resistance against battery acid.
• High-Voltage EV (Electric Vehicle) Cables: EVs require shielded, highly durable cables to handle immense power surges. Our EV-grade cables feature advanced thermal management and EMI shielding.
• Energy Storage Cabinet Fixed Connections: Large-scale solar and wind energy storage requires a permanent, low-resistance battery interconnect cable to bridge massive lithium iron phosphate (LiFePO4) racks safely.
• Silicone Soft Cables with Plugs: Highly flexible silicone cables paired with XT60/aviation plugs are ideal for tight-space installations in robotics, drones, and portable power stations.

Why Choose Us as Your Custom Battery Connection Cable Manufacturer?

Finding a reliable supplier in the B2B market can be challenging. As an ISO9001-certified custom battery connection cable manufacturer, we bring decades of wire harness expertise directly to your production line.

Our Manufacturing Advantages:

1. Comprehensive OEM/ODM Services: From raw material selection to terminal molding, we customize every aspect of your heavy duty battery cable.
2. Flexible Low MOQ: We support rapid prototyping and small-batch custom orders for R&D testing before scaling to bulk/wholesale production.
3. Professional Engineering Team: Our in-house design team collaborates directly with your engineers to provide tailored 3D drawings and power transmission solutions.
4. Strict Quality Control: Every battery quick disconnect cable and interconnect wire undergoes rigorous pull-force, voltage drop, and high-temperature testing before leaving our facility.
