Ultimate Guide to Boat Rigging Wire Harnesses: Engineered for Harsh Marine Environments

In the demanding world of marine engineering, the electrical system serves as the central nervous system of any vessel. Whether it is a commercial workboat or a luxury yacht, the electrical infrastructure faces relentless exposure to saltwater corrosion, extreme humidity, constant UV radiation, and severe mechanical vibration. At the core of a reliable electrical system is the boat rigging wire harness, a highly specialized component designed to ensure uninterrupted power distribution and precise signal transmission under the most unforgiving offshore conditions.

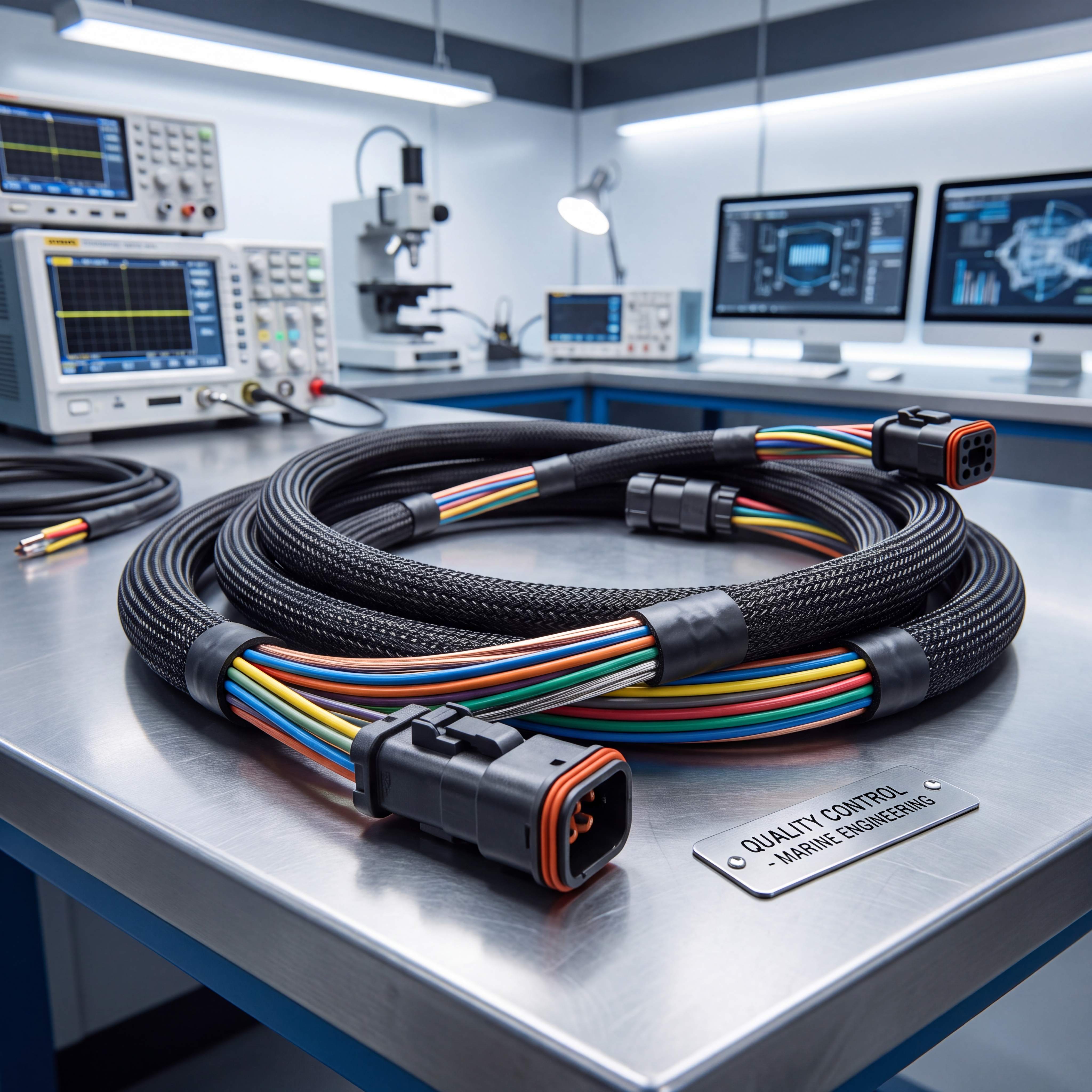

As a leading custom wire harness manufacturer, we understand the distinct pain points of B2B buyers—from marine engineers to yacht builders and distributors. Inferior wiring leads to voltage drops, short circuits, and catastrophic equipment failures at sea. Upgrading to a professional-grade marine wire harness is not just an option; it is a critical safety and performance requirement.

Working Principles: Why Marine Environments Demand Specialized Wiring

Unlike standard automotive or industrial wiring, a marine electrical system operates in a highly corrosive and dynamic environment. The underlying working principle of a high-quality marine harness relies on multi-layered protection:

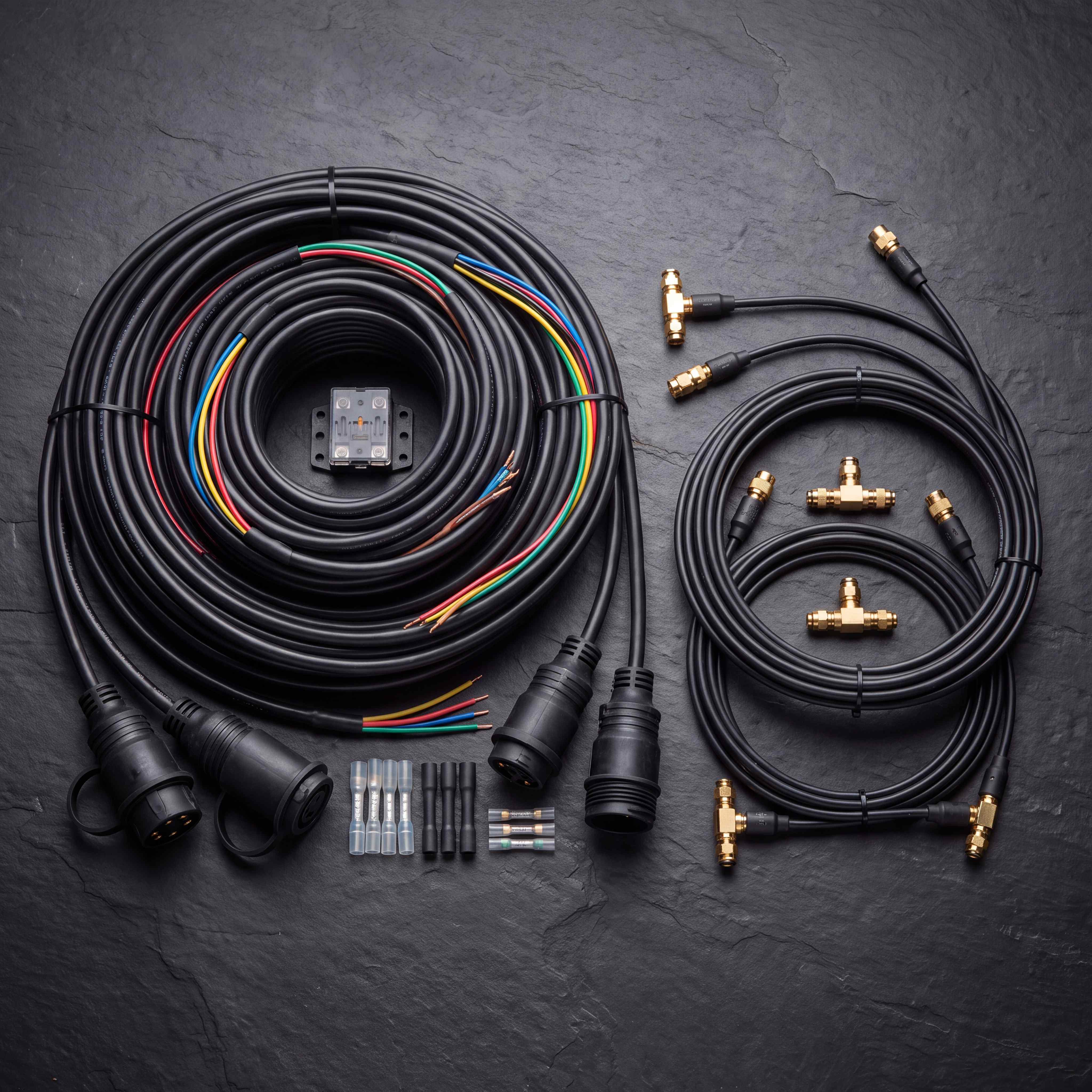

• Corrosion Resistance via Tinned Copper: Saltwater acts as a powerful electrolyte, rapidly oxidizing bare copper. A marine tinned copper wiring harness utilizes individual copper strands coated in tin, drastically reducing oxidation and maintaining optimal electrical conductivity over a prolonged lifespan.
• Vibration Endurance: Continuous engine throbbing and hull pounding against waves induce metal fatigue. Marine harnesses use finely stranded wires that offer superior flexibility, absorbing mechanical stress without snapping.
• Moisture & Ingress Protection: Utilizing advanced sealing technologies such as adhesive-lined heat shrink tubing and molded connectors, a marine waterproof wire harness prevents capillary action—where water wicks up the wire beneath the insulation—ensuring complete environmental isolation.

Core Classifications and High-Performance Applications

Understanding the specific use cases of a marine grade wiring assembly is vital for procurement managers seeking targeted solutions. Below are three of the most critical marine wiring applications we manufacture:

1. The NMEA 2000 Instrument Dedicated Harness

Modern vessels rely heavily on interconnected electronic systems—GPS, sonar, engine parameters, and auto-pilots. The NMEA 2000 cable harness is the backbone of this data network.

• Signal Integrity: Engineered with precise impedance shielding to prevent electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring flawless multi-device communication.
• Plug-and-Play Architecture: Features standardized 5-pin DeviceNet connectors with gold-plated contacts to guarantee low-loss data transmission across the vessel's digital backbone.

2. Boat Trailer Wiring Systems (4-Way & Full Kits)

A vessel's journey begins on the road, making the boat trailer wiring harness equally as critical as internal boat wiring. Trailers are frequently submerged in water, demanding specialized wiring kits.

• 4-Way Trailer Tail Side Harness: Essential for standard light-duty trailers, this harness connects the tow vehicle to the trailer's tail lights, brake lights, and turn signals. It utilizes heavily insulated, color-coded wires specifically rated for submersible environments.
• Boat Trailer Full Wiring Kit: For OEM trailer manufacturers, we provide complete end-to-end wiring solutions that include primary harness routing, heavy-duty grounding rings, and UV-resistant PVC jacketing to prevent sun degradation during storage.

3. Boat Engine Wiring Harnesses

The propulsion system requires robust power delivery and critical sensor feedback. A boat engine wiring harness must withstand not only moisture but also extreme engine room temperatures and exposure to petrochemicals (oil, diesel, and bilge solvents). Our engine harnesses utilize cross-linked polyethylene (XLPE) insulation, which offers superior thermal resistance compared to standard PVC.

Uncompromising Technical Features of Our Custom Assemblies

When you partner with us for a custom boat rigging harness, you are investing in highly engineered electrical architectures. Key technical features include:

• Premium Conductor Material: 100% stranded tinned copper, exceeding ABYC (American Boat and Yacht Council) and USCG (United States Coast Guard) standards.
• Robust Insulation & Jacketing: High-grade, flame-retardant materials that resist cracking in freezing conditions and melting in high-heat engine compartments.
• IP67/IP68 Waterproof Connectors: Featuring Deutsch, Delphi, or custom molded connectors equipped with silicone ribbed seals to prevent water and dust ingress.
• Custom Configurations: Tailored wire lengths, custom breakout points, and integrated fuse blocks designed specifically for your vessel's schematics.

For B2B buyers, supply chain reliability is just as important as product quality. As an industry-leading manufacturer, we offer a strategic partnership to marine OEMs, distributors, and aftermarket repair hubs.

• ISO9001 Certified Quality Management: Every harness undergoes rigorous electrical testing—including continuity, voltage drop, and pull-force testing—guaranteeing zero-defect products right out of the box.
• Comprehensive OEM & ODM Capabilities: Whether you need a simple reverse-engineered harness or a completely new marine grade wiring assembly developed from scratch, our factory is fully equipped to manufacture to your exact specifications.
• Low Minimum Order Quantities (MOQ): We understand that custom marine projects often require small-batch production. We proudly support flexible volume orders, allowing yacht builders and boutique manufacturers to scale without heavy inventory burdens.
• Professional Design & Engineering Team: You don't just get a manufacturer; you get an engineering partner. Our in-house design team collaborates with your engineers to optimize harness routing, select the most cost-effective marine-grade materials, and streamline assembly, ultimately reducing your overall production costs.

Ready to upgrade your marine electrical systems? Don't let inferior wiring compromise the integrity of your vessels. Contact our engineering team today to discuss your specifications, request technical drawings, and secure a competitive RFQ for your next boat rigging wire harness project.
