Ultimate Guide to Military Wire Harnesses: Engineering the Electrical Nervous System of Defense

In the unforgiving theaters of modern warfare and global defense, equipment failure is not an option. At the core of every advanced combat platform lies a complex, highly resilient electrical nervous system: the military wire harness. Acting as the vital backbone for power distribution and data transmission, a military grade wire harness is engineered to withstand extreme environmental stress, ensuring zero-failure operation in the most critical missions.

As defense technology evolves, procurement managers and electrical engineers require cabling solutions that exceed standard commercial limitations. Whether it is for next-generation fighter jets, armored ground transport, or covert submarine operations, integrating a premium mil spec wire harness is the only way to guarantee mission readiness, equipment longevity, and personnel safety.

The Anatomy of a Military Grade Wire Harness: Principles of Zero-Failure Design

A military wire harness is far more than a simple bundle of cables. It is a highly engineered assembly of wires, terminals, and mil-spec connectors, protected by heavy-duty jacketing and shielding materials. Its primary working principle revolves around uninterrupted signal integrity and power delivery amidst severe electromagnetic interference (EMI), extreme temperature fluctuations, and mechanical abuse.

To meet stringent defense standards, leading military wire harness manufacturers employ advanced braided shielding, specialized potting techniques, and ruggedized overmolding to ensure these systems survive where standard cables would instantly degrade.

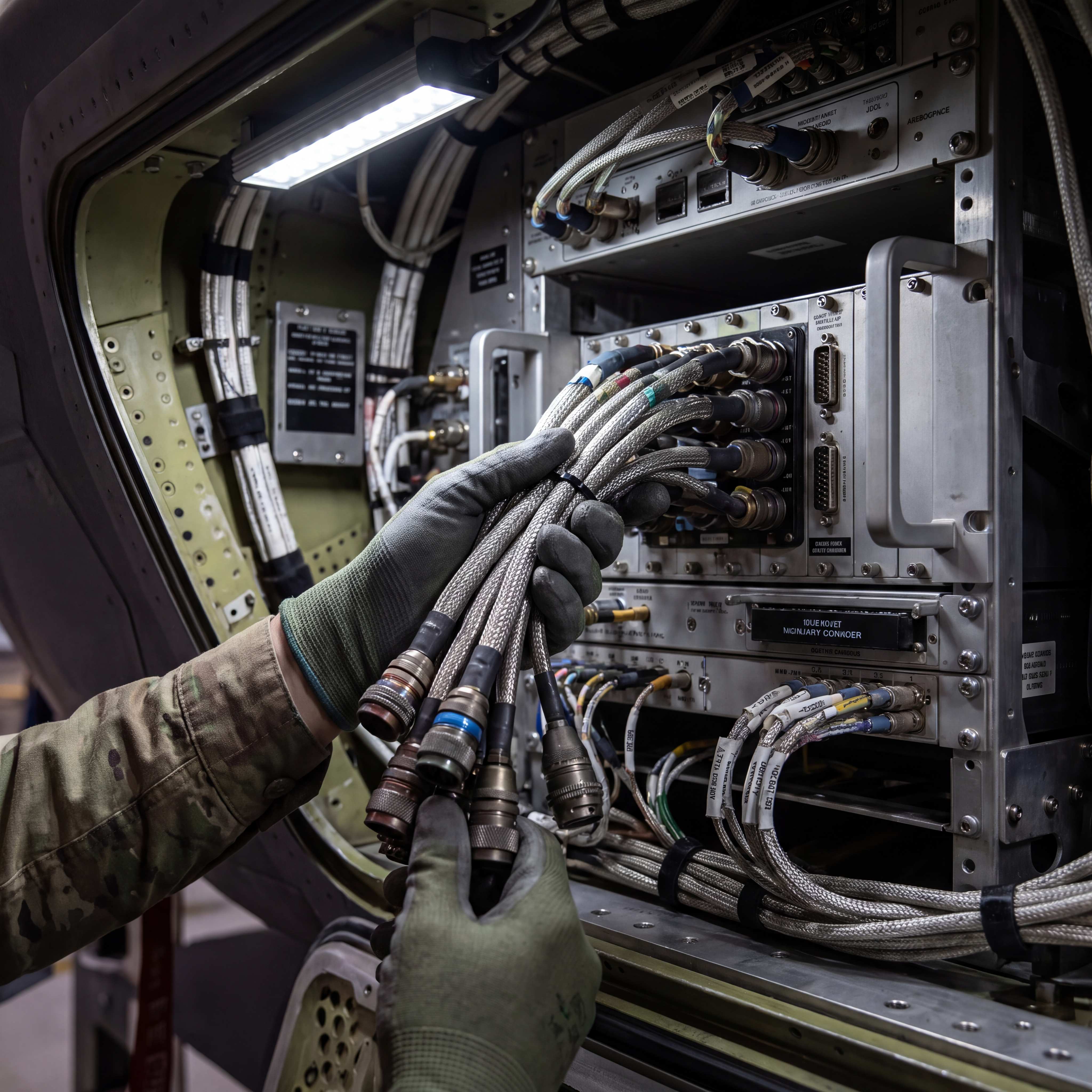

Military Aircraft Wire Harness: Modular Agility in the Skies

In modern aviation, weight optimization and maintenance speed are tactical imperatives. A premium military aircraft wire harness and military aerospace wire harness must deliver high-density data transmission while minimizing overall payload.

Take the F-35 lightning II fighter jet as a prime example. By implementing advanced modular "plug-and-play" harness designs, aerospace engineers have achieved a staggering 15% reduction in overall wiring weight. Furthermore, this modular configuration allows ground maintenance crews to complete complex module replacements in mere minutes, drastically reducing aircraft downtime and keeping squadrons combat-ready.

Military Vehicle Wiring Harness: Dominating Harsh Terrains

Ground forces rely heavily on mobile command centers, armored personnel carriers, and mobile missile launchers. A military vehicle wiring harness is specifically designed to adapt to military vehicles, tactical shelters, and guided missile systems operating in the most brutal terrestrial environments.

These ground-based systems are subjected to high-intensity vibration, ballistic shock, highly corrosive salt spray, and abrasive desert sand. To combat this, the harnesses utilize abrasion-resistant Nomex or Kevlar braiding and heavy-duty shrink tubing, ensuring that communication relays and weapons targeting systems remain flawlessly connected during high-speed, off-road tactical maneuvers.

Waterproof Military Wire Harness: Unyielding in Deep Waters

Subsurface naval operations present arguably the most extreme engineering challenges. For submarines, underwater drones (UUVs), and naval special operations equipment, a waterproof military wire harness is an absolute necessity.

These special-purpose harnesses are tested under grueling conditions. They are engineered to endure depths of 100 meters, maintaining a 72-hour zero-penetration watertight seal. Beyond water ingress protection, they boast UL94 V-0 flame retardant ratings. In the catastrophic event of a localized fire, these harnesses are proven to maintain complete circuit integrity for 2 hours while engulfed in 1000℃ flames, giving crews the vital time needed to respond and survive.

Why Choose Us as Your Custom Military Wire Harness Manufacturers?

Navigating the complexities of defense procurement requires a partner with proven technical prowess and agile manufacturing capabilities. As a premier custom wire harness manufacturer, we possess the specialized expertise required to turn intricate technical parameters into highly reliable, field-ready electrical solutions.

When you choose to partner with us, you are securing an end-to-end supply chain advantage:

• ISO9001 Certified Quality System: Every custom military wire harness we produce is manufactured under strict ISO9001 quality management protocols, ensuring absolute traceability, consistency, and compliance with mil-spec standards.
• Comprehensive OEM/ODM Capabilities: From reverse engineering legacy defense systems to co-developing harnesses for prototype weapons systems, our OEM/ODM services are fully adaptable to your exact specifications.
• Low MOQ & Agile Production: We understand that defense prototyping and specialized equipment upgrades don't always require massive volume. We proudly support small batch customization (low MOQ), allowing contractors to test and deploy without massive upfront inventory costs.
• Professional Engineering & Design Team: Our in-house team of electrical engineers acts as an extension of your R&D department. We provide comprehensive end-to-end solutions, from CAD drafting and EMI shielding analysis to material selection and final environmental testing.

Partner With a Trusted Defense Electronics Expert Today

The reliability of your defense platforms relies entirely on the quality of its components. Do not compromise on the electrical nervous system of your next project. Whether you need a highly specialized military aerospace wire harness for avionics upgrades, or a heavy-duty military vehicle wiring harness for armored fleets, our engineering team is ready to deliver a bespoke, mil-spec solution.

Secure the tactical advantage for your supply chain. Contact us today to send an inquiry, speak directly with our professional design team, and receive a competitive quote for your next custom wire harness project. Let us power your mission to success.
