The Ultimate Guide to Battery Connector Cables: Powering BESS, EV, and Industrial Applications

In the rapidly evolving landscape of global electrification, the reliability of a power system is only as strong as its weakest link. Whether you are engineering a grid-scale Battery Energy Storage System (BESS), designing the next generation of Electric Vehicles (EVs), or manufacturing automated guided vehicles (AGVs), the battery connector cable serves as the critical central nervous system for your power architecture.

As an industry-leading custom battery connector cable manufacturer, we understand the stringent demands of B2B procurement and engineering. Sourcing off-the-shelf cables often leads to voltage drops, thermal inefficiencies, or system failures under extreme DC loads. This is where our ISO9001 certified facilities step in. Supported by a professional design team, we provide end-to-end solutions tailored to your precise electrical and mechanical requirements. From prototyping to mass manufacturing, we offer comprehensive OEM/ODM support alongside flexible low-volume production support to empower your project's success.

How a Battery Connector Cable Works: The Science of High-Current Transmission

At its core, a battery connector cable is engineered to facilitate the seamless transfer of electrical energy from a power source (battery cells or packs) to an inverter, motor, or distribution board. However, in industrial applications, the working principles go far beyond simple conduction.

1. Low-Loss Power Delivery under High Current: In continuous DC applications (such as BESS or UPS systems), minimizing Ohmic resistance is paramount. We utilize ultra-pure, multi-stranded Oxygen-Free Copper (OFC) or tinned copper to ensure extremely low electrical resistance. This prevents energy waste in the form of heat, maintaining system efficiency.
2. Thermal Management & Insulation Integrity: High currents inherently generate heat. Our cables rely on advanced cross-linked polyethylene (XLPE) or highly flexible silicone insulation, which withstands extreme temperature fluctuations (-40°C to +150°C). This prevents thermal runaway and guarantees safety in high-voltage environments.
3. Secure Mechanical Continuity: A robust physical connection is critical. Vibrations in automotive or AGV applications can loosen standard terminals. By integrating ultrasonically welded or hydraulically crimped copper lugs with secure locking mechanisms, our cables eliminate micro-arcing and ensure a stable connection lifecycle.

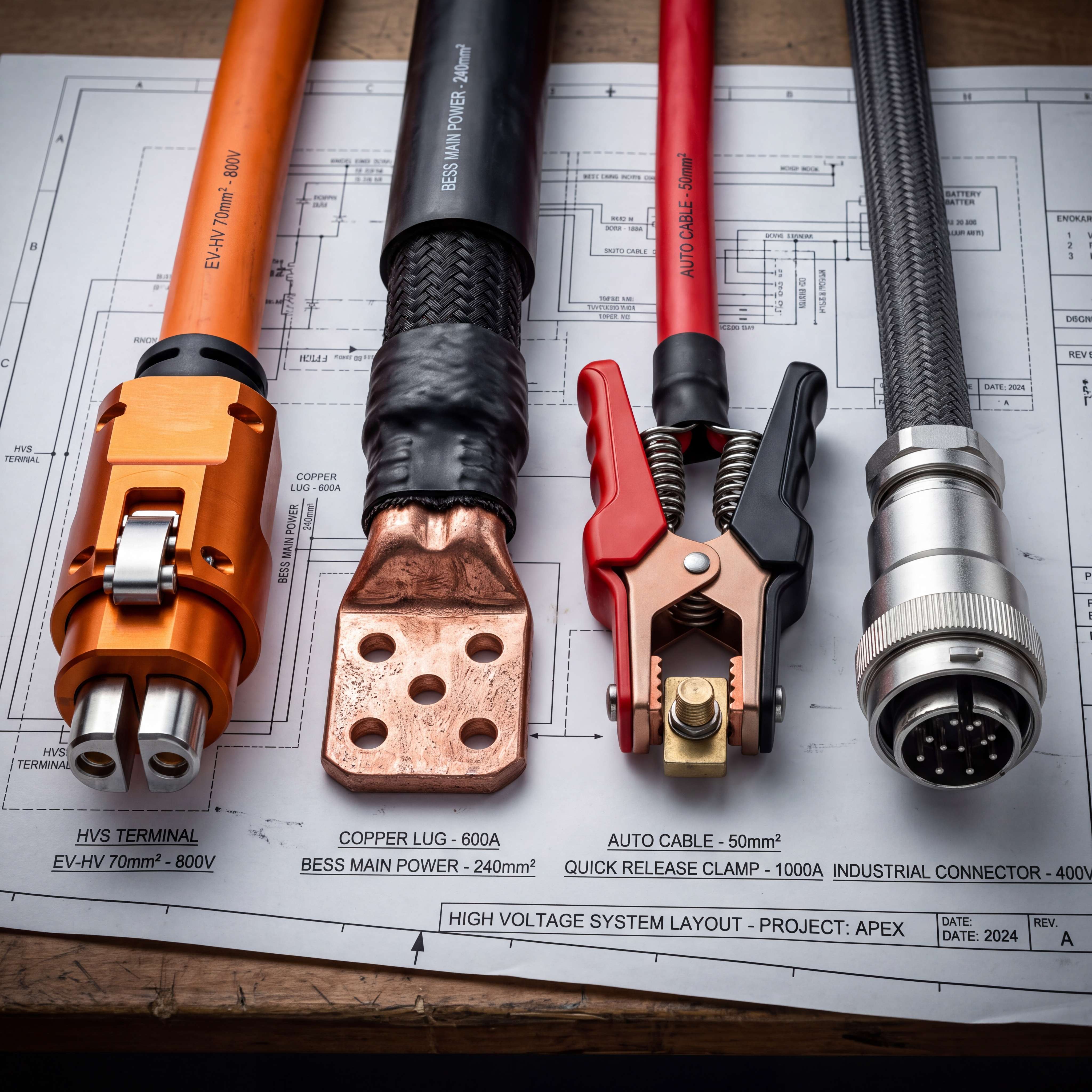

Professional Classifications of Battery Connector Cables

Depending on the specific industrial environment, voltage requirements, and ampacity, battery connector cables are categorized into several highly specialized types:

1. High Current DC Battery Connector Cable for BESS

Designed specifically for Battery Energy Storage Systems (BESS), these heavy-duty cables handle continuous, extreme DC loads (often exceeding 200A to 500A). They connect series or parallel battery modules within commercial racks or utility-scale containers. With superior flame-retardant properties and UL/TUV certifications, a High Current DC Battery Connector Cable for BESS ensures that your solar or wind energy storage setup operates with maximum safety and minimal power degradation.

2. EV High Voltage Battery Connector Cable

Electric vehicles operate on high-voltage architectures (typically 400V to 800V+). An EV High Voltage Battery Connector Cable must not only carry massive power from the battery pack to the drivetrain but also feature robust Electromagnetic Interference (EMI) shielding. These cables are wrapped in distinctive orange shielding to indicate high voltage, utilizing specialized automotive-grade connectors that offer waterproof (IP67/IP69K) and vibration-resistant properties.

3. 4/6 Gauge Auto Battery Connector Cable with Quick Release Clamps

For traditional internal combustion engine (ICE) vehicles, aftermarket modifications, and marine applications, convenience and durability are key. A 4/6 Gauge Auto Battery Connector Cable with Quick Release Clamps provides the perfect balance of flexibility and current-carrying capacity (ideal for 12V/24V systems). The quick-release clamps allow mechanics and consumers to rapidly disconnect the battery for maintenance or replacement without requiring specialized tools.

4. Custom Length Battery Connector Cable with Copper Lugs

No two industrial projects are exactly alike. Whether you are wiring a bespoke UPS system, an automated robotic arm, or a telecom base station, you need exact fitment. A Custom Length Battery Connector Cable with Copper Lugs provides unparalleled routing flexibility. As a premier manufacturer, we hydraulically crimp heavy-duty, tin-plated copper lugs with heat shrink tubing applied, guaranteeing an airtight, corrosion-resistant seal tailored to your exact dimensional specifications.

Technical Specifications Matrix

To help B2B buyers and engineers match our products to their system requirements, below is a standard specification matrix for our custom cable assemblies. Note that all parameters can be customized via our OEM/ODM support.

Deep Dive: Critical Application Scenarios

Our custom solutions empower a wide array of high-stakes industries:

Automotive and Grid-Scale Energy Storage

In mega-watt scale BESS installations and automotive manufacturing, the integrity of the power bus is non-negotiable. Our High Current DC Battery Connector Cable for BESS reduces the total cost of ownership (TCO) by minimizing maintenance needs and preventing energy loss. For the automotive sector, our strict quality control guarantees that every EV High Voltage Battery Connector Cable meets global compliance standards, enabling safe ultra-fast charging.

Industrial Automation & Specialized Equipment

Automated Guided Vehicles (AGVs), forklifts, and industrial Battery Management Systems (BMS) operate in harsh, repetitive-motion environments. Using a Custom Length Battery Connector Cable with Copper Lugs wrapped in abrasion-resistant polyurethane (PUR) ensures that dynamic bending and mechanical friction do not compromise the copper core. Our professional design team can calculate the exact bend radius required for your robotic applications.

Consumer-Grade & Portable Energy Storage

The boom in off-grid living has driven demand for portable power stations (like BLUETTI, EcoFlow, and Jackery expansions). For these applications, we manufacture highly flexible cables equipped with user-friendly connectors (such as Anderson plugs or XT90/XT150). We provide excellent low-volume production support for innovative startups looking to prototype the next generation of portable solar generators.

Partner with an Industry-Leading Custom Battery Connector Cable Manufacturer

Navigating the complexities of high-power electrical connections requires a partner who understands both the engineering physics and the supply chain dynamics. As an ISO9001 certified factory, we don't just supply wires; we engineer end-to-end solutions.

Whether you need a massive run of a 4/6 Gauge Auto Battery Connector Cable with Quick Release Clamps or highly specialized prototyping for an EV High Voltage Battery Connector Cable, our state-of-the-art facilities are equipped to deliver. We pride ourselves on bridging the gap between rigorous industrial standards and flexible manufacturing.

Ready to optimize your power architecture? Leverage our extensive OEM/ODM support and let our professional design team create the perfect custom cable assembly for your next project. Contact us today to discuss your technical drawings, request a sample, or explore our low-volume production support options!
