The Ultimate Guide to Pre-Terminated Fiber Optic Cable Assemblies for Modern Data Centers

As global data consumption surges, enterprise networks and hyperscale data centers are facing immense pressure to scale. The migration toward 400G and 800G networks demands high-density cabling, minimized latency, and rapid deployment capabilities. Traditional field-termination methods, which require extensive time, specialized tools, and meticulous testing on-site, can no longer keep pace with these aggressive expansion timelines.

Enter pre terminated fiber optic cable assemblies—the ultimate plug-and-play solution designed to streamline network architecture, reduce installation costs, and guarantee uncompromising optical performance.

How Do Pre-Terminated Fiber Cables Work?

The working principle of pre-terminated fiber optic cables is rooted in factory-grade precision. Unlike bulk cables that require splicing and polishing at the installation site, these assemblies arrive with connectors already attached, polished, and rigorously tested in a controlled factory environment.

This plug-and-play functionality eliminates the need for expensive field-termination toolkits and highly specialized labor. Installers simply lay the cables and plug them directly into patch panels, transceivers, or network switches. The result is a dramatic reduction in deployment time—often by up to 80%—along with guaranteed minimal insertion and return loss.

Comprehensive Classification of Pre-Terminated Assemblies

To accommodate diverse network architectures, these assemblies are engineered in various configurations, catering to specific bandwidth and spatial requirements.

1. By Fiber Type: Single-Mode vs. Multimode

• Single-Mode Fiber (OS2): Featuring a smaller core (9/125µm), single-mode assemblies eliminate intermodal dispersion, making them the standard for long-haul telecommunications and campus-wide backbone connections.
• Multimode Fiber (OM3/OM4/OM5): Designed with a larger core (50/125µm), multimode cables are optimized for short-distance, high-speed parallel optical transmission within data centers. OM4 and OM5 (Wideband Multimode Fiber) are essential for supporting 40G, 100G, and 400G network upgrades over short reaches.

2. By Core Count Specifications

Bandwidth scalability heavily relies on the core count of the fiber. High-density environments utilize multi-fiber configurations to maximize rack space.

• A standard pre terminated fiber trunk cable is typically available in 8-core, 12-core, 24-core, or even up to 144-core high-density bundles.
• The 8-core and 16-core configurations are becoming increasingly popular for 40G (SR4) and 400G (SR8) transceiver architectures, ensuring optimal fiber utilization without wasted strands.

3. By Connector Type Combinations

The interface dictates how the cabling integrates with network hardware:

• MPO-MPO / MTP-MTP: These multi-fiber connectors are the backbone of high-density environments. MPO pre terminated fiber optic assemblies allow for rapid linking of centralized cross-connects to equipment distribution areas.

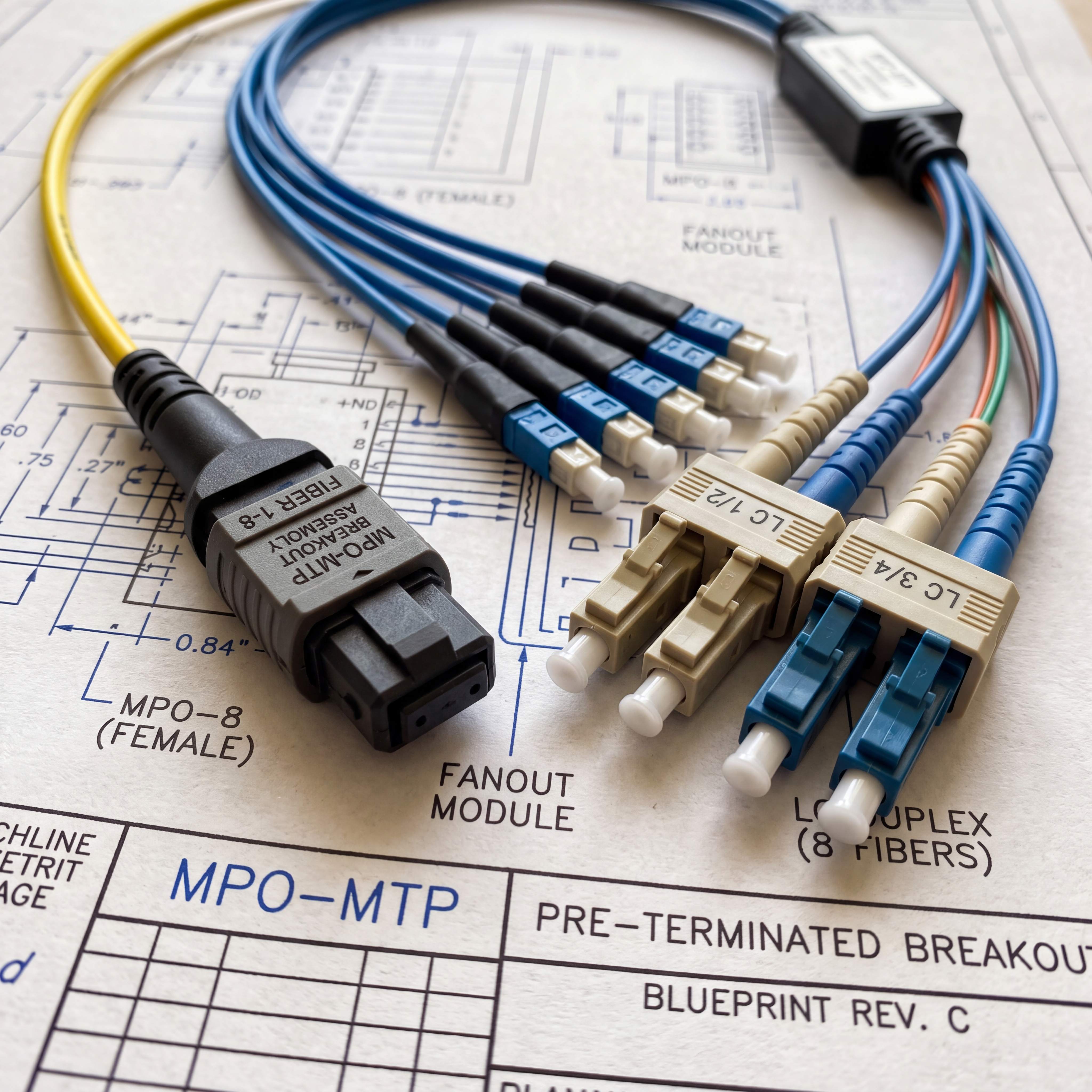

• MPO-LC / MTP-LC: When transitioning from a high-density trunk to standard LC equipment ports, a pre terminated breakout fiber cable (also known as a fan-out cable) is utilized. This splits a single 12-fiber or 24-fiber MPO connector into multiple duplex LC connectors, seamlessly bridging different hardware interfaces.

Key Features and Primary Applications

The inherent advantages of factory termination extend far beyond simple convenience.

• Zero-Friction Deployment: As a specialized data center pre terminated fiber cable, these assemblies drastically reduce on-site labor and eliminate installation bottlenecks, enabling IT teams to meet aggressive Go-Live dates.
• Exceptional Optical Performance: Factory polishing ensures optimal end-face geometry. Every assembly undergoes strict 3D interferometer testing to guarantee low insertion loss (IL) and high return loss (RL), which is critical for loss-sensitive 100G/400G links.
• High-Density Cable Management: Utilizing a compact pre terminated fiber optic harness reduces cable bulk in pathways and racks. This prevents airflow restriction, enhancing the cooling efficiency of the server room.

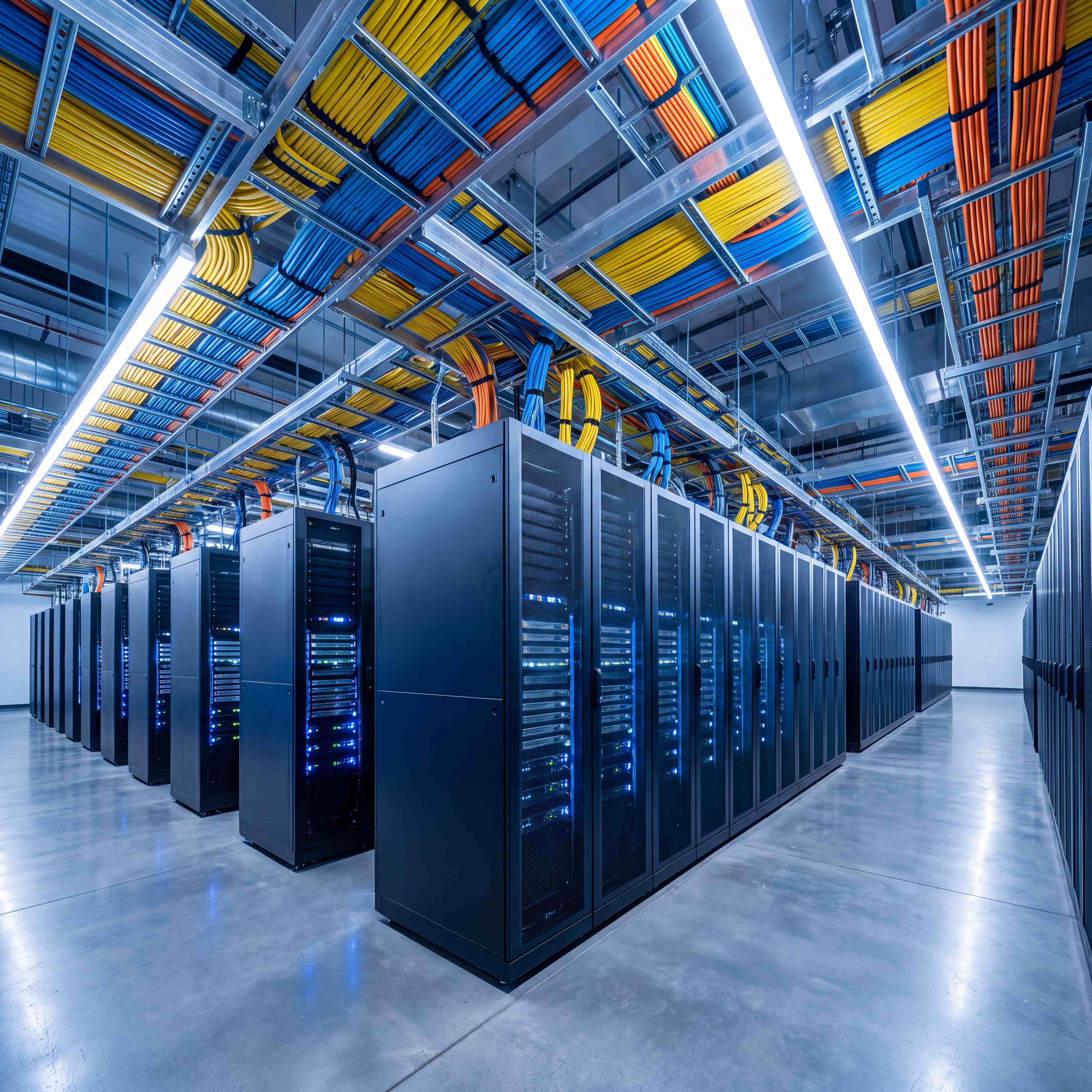

These attributes make pre-terminated solutions the gold standard for hyperscale data centers, enterprise LAN/WAN networks, telecommunication hubs, and disaster recovery sites where reliability and speed are paramount.

Why Choose Us as Your Custom Cable Assemblies Manufacturer?

Navigating the complexities of network infrastructure requires a manufacturing partner who understands both the technical nuances of fiber optics and the commercial realities of B2B procurement. As a premier custom cable assemblies manufacturer, we are dedicated to bridging the gap between cutting-edge technology and cost-effective deployment.

Here is how we add tangible value to your supply chain:

• ISO9001 Certified Quality: We operate under stringent quality control protocols. Every fiber assembly is optically tested and ships with an individual test report, ensuring zero-defect delivery.
• Comprehensive OEM/ODM Capabilities: Whether you are a system integrator or an equipment distributor, we provide full white-label manufacturing, branding, and packaging services tailored to your market positioning.
• Flexible Low Volume Production: We understand that project requirements vary. Unlike rigid bulk manufacturers, we gladly support low volume production runs, helping you manage inventory efficiently and execute pilot projects without massive upfront capital.
• Expert Customization: No two data centers are identical. Our professional design team specializes in crafting custom pre terminated fiber optic assemblies—tailoring precise cable lengths, breakout configurations, and specific jacket materials (LSZH, Plenum, Riser) to meet your exact environmental and architectural demands.
• End-to-End Solutions: From initial network blueprint consultation to delivering the final assembled product, we provide holistic, customized solutions that guarantee your network architecture is scalable, robust, and future-proof.

Ready to accelerate your network deployment? Do not let complex field terminations slow down your project timeline. Partner with us for reliable, high-performance fiber optic solutions tailored to your unique specifications.

[Contact our engineering team today] for a technical consultation, customized solutions, or to request a quote on your next high-density cabling project!
