The Ultimate Guide to Custom Overmolded Cable Assemblies

In today's demanding commercial and industrial environments, standard mechanical connectors often fail under extreme stress, moisture, or continuous flexing. For hardware engineers and procurement managers sourcing highly reliable interconnect systems, overmolded cable assemblies represent the gold standard in durability, strain relief, and environmental protection.

By eliminating the vulnerabilities of traditional backshells and mechanical enclosures, injection molded cable assemblies deliver a seamless, ingress-protected solution tailored to your exact project requirements.

Working Principle & Technology: How Overmolding Eliminates Mechanical Weak Points

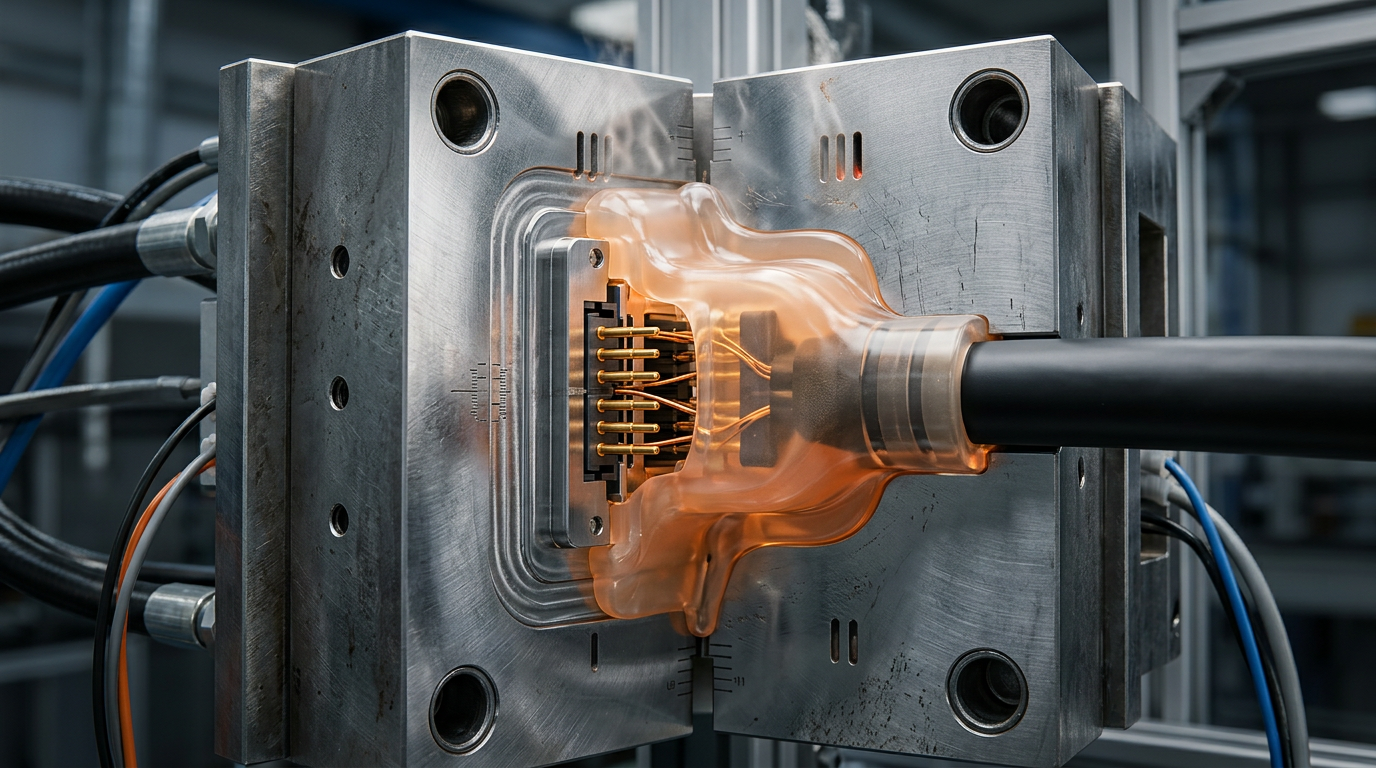

The overmolding process is a highly precise manufacturing technique that permanently bonds a protective polymer over a wire, cable, and connector junction. During production, the terminated cable and connector are placed inside a custom-designed steel mold cavity. Through high-temperature and high-pressure injection molding, thermoplastic materials—such as Thermoplastic Elastomer (TPE), Thermoplastic Polyurethane (TPU), or flexible PVC—are directly injected over the connector body, the cable jacket, and critical structural nodes.

This process creates a complete, sealed, and unified component. The molten material chemically and mechanically bonds with the cable jacket and connector, resulting in a seamless integration.

Key Technical Advantages:

• Elimination of Mechanical Weak Points: Traditional assemblies rely on screws, nuts, and plastic snap-fit housings, which can loosen under vibration or allow moisture ingress. Overmolding replaces these with a solid, impenetrable block of protective material.
• Superior Strain Relief: The transition from the rigid connector to the flexible cable is the most common point of failure. Custom overmolded cable assemblies provide a graduated flexibility that dramatically increases the cable's bend lifespan.
• Ingress Protection (IP Rating): Creates a hermetic seal against dust, water, harsh chemicals, and oils, easily achieving IP67, IP68, or even IP69K ratings.

5 Core Applications of Injection Molded Cable Assemblies

As a premier overmolded cable assembly manufacturer, we engineer solutions across a broad spectrum of demanding industries. Here is how specialized molded cable assemblies are deployed across five critical sectors.

1. Industrial Automation Overmolded Cable Assemblies

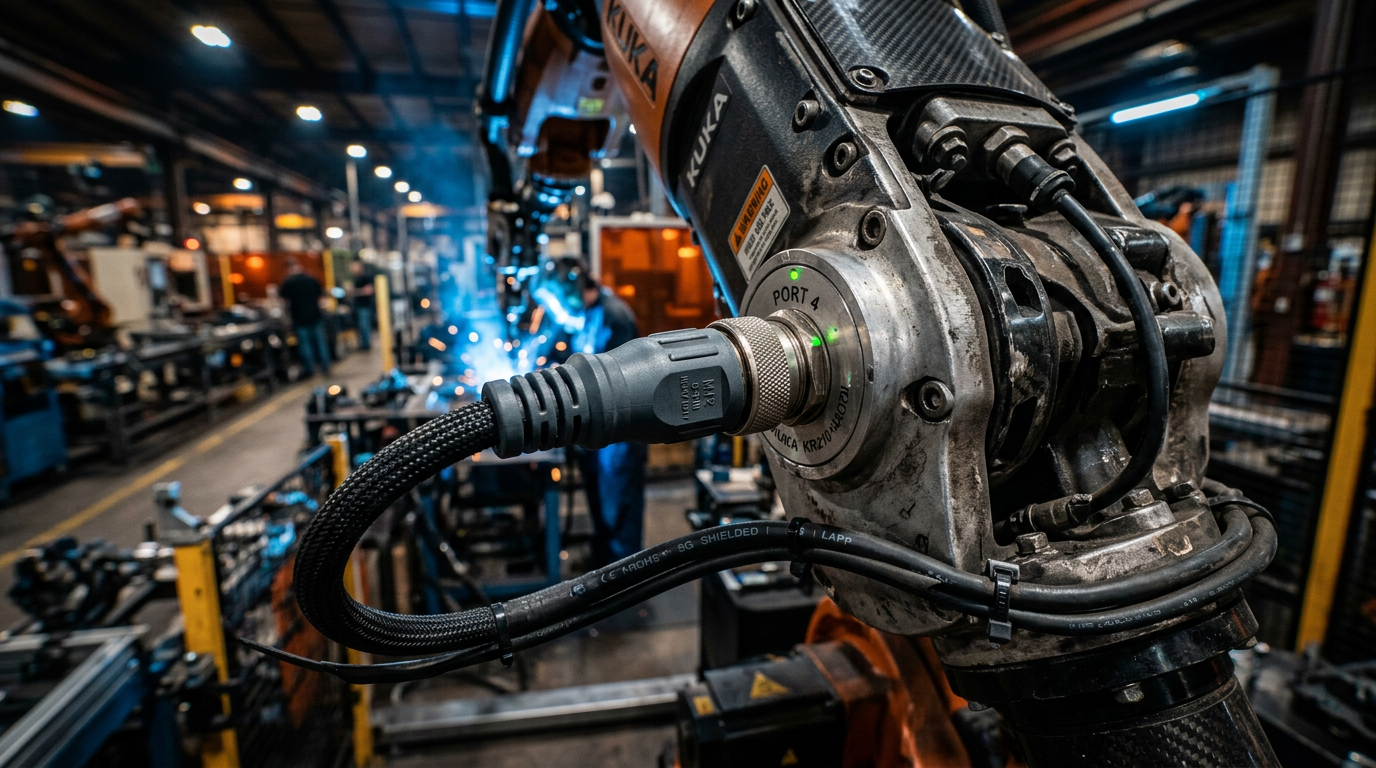

In smart factories, equipment is constantly subjected to machine vibration, oil spills, and continuous flexing (e.g., robotic arms). We design heavy-duty interconnects, including M12 sensor cables and rugged USB assemblies, utilizing robust TPU materials. These assemblies resist abrasion and harsh factory chemicals, ensuring uninterrupted data and power transmission in mission-critical automation systems.

2. Automotive & New Energy Vehicles (EV)

The surge in New Energy Vehicles demands exceptionally reliable high-voltage and signal connections. Custom overmolded cable assemblies are critical for EV charging piles, Battery Management Systems (BMS), and in-vehicle infotainment. Our overmolding technology provides the necessary thermal resistance, UV protection, and mechanical strength to withstand years of outdoor charging cycles and extreme automotive temperature fluctuations.

3. Medical Grade Overmoulded Cable Assemblies

Medical devices require interconnects that are not only highly reliable but also safe for patient contact and capable of surviving stringent sterilization processes (such as autoclaving). We utilize medical-grade, biocompatible TPE and silicone materials to manufacture overmoulded cable assemblies for ultrasound equipment, endoscopes, and patient monitoring systems. The seamless design prevents bacteria buildup, ensuring absolute hygiene and fluid resistance.

4. Military & Aerospace Interconnects

For defense and aerospace applications, failure is not an option. Connectors must endure extreme altitudes, massive temperature shifts, and intense ballistic vibrations. Our aerospace-grade injection molded cable assemblies feature low-outgassing materials, ruggedized strain reliefs, and EMI/RFI shielding. The solid overmold ensures the internal solder joints and crimps remain perfectly intact, no matter the environmental shock.

5. Solar & Renewable Energy Solutions

Solar farms are exposed to the harshest outdoor elements for decades. Photovoltaic (PV) connectors and junction box cables require superior UV resistance, extreme weatherability, and high-voltage insulation. By utilizing specialized outdoor-rated polymers, our molded assemblies provide watertight connections that prevent corrosion and maximize the energy output lifecycle of solar panel arrays.

Partner with a Leading Overmolded Cable Assembly Manufacturer

Finding the right overmolded cable assembly supplier is critical to the success, safety, and longevity of your hardware. As an expert custom cable assemblies manufacturer, we understand the deep technical pain points of hardware engineers and supply chain managers. We don't just build cables; we engineer highly reliable interconnect solutions that protect your brand's reputation.

Why Choose Us for Your Interconnect Solutions?

• ISO9001 Certified Quality: Our entire manufacturing facility operates under strict ISO9001 quality management systems, ensuring 100% testing for continuity, insulation resistance, and mechanical integrity before any batch leaves the floor.
• Professional Design Team: Unsure about the right polymer (TPE, TPU, or PVC) for your specific IP68 requirement? Our in-house engineering team provides complete solutions, from 3D mold design and prototyping to material selection and final mass production.
• Comprehensive Custom/OEM/ODM Support: Whether you need a unique angled connector, a proprietary overmold shape with your company logo, or specific EMI shielding, our OEM/ODM services are tailored to match your precise blueprints.
• Low Volume Production Acceptable: We understand that specialized B2B projects often require High-Mix, Low-Volume (HMLV) manufacturing. We proudly support flexible MOQs and low volume production acceptable policies to help you launch your prototypes and scale at your own pace.

Get Your Custom Solution Today

Stop letting standard connectors compromise your equipment's reliability in the field. Partner with a premier overmolded cable assembly manufacturer dedicated to quality, precision, and customer success.

Ready to upgrade your interconnect systems? Contact our engineering team today with your specifications, drawings, or application requirements. Send us an inquiry now to get a competitive quote and discover how our custom overmolding technology can bring unparalleled durability to your next project.
